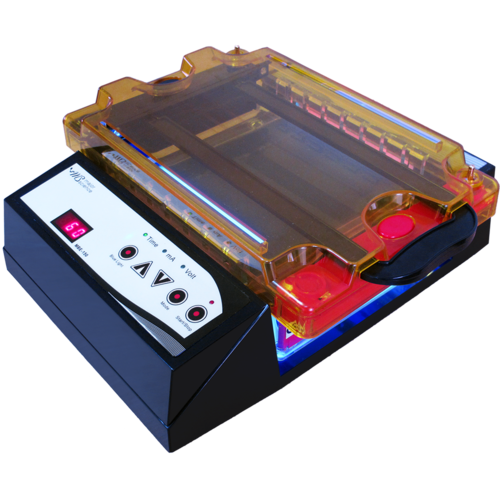

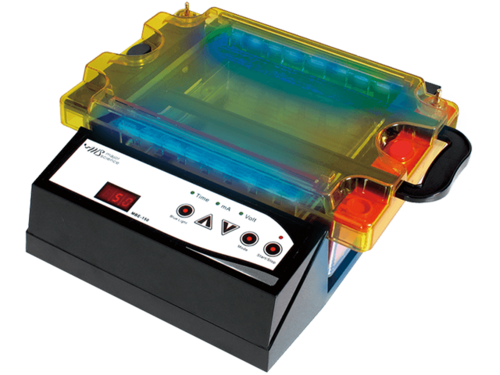

SafeBlue Illuminator/ Electrophoresis System, MBE-150-PLUS


The SafeBlue Electrophoresis System also uses blue LED light to allow for immediate visualization of DNA/RNA bands while running agarose electrophoresis gel. The complete system comes with three different sizes of gel trays for your convenience of use, 150x70mm, 150x100mm and 150x150mm. The system is RoHS and CE compliant for environmental and safety concerns. Different accessories are also available for user to select.

MS05_SafeBlue Electrophoresis System MBE-150-PLUS * Marketing video

  • Innovative - a complete 4-in-1 system (run, view, capture and cut gel) with simple and easy setup on the image capture/analysis software.
  • Convenient - run as you see, real-time visualization on your DNA/RNA band migration.
  • Compact - footprint smaller than most UV transilluminator, easy to move and ideal for limited benchtop space
  • Safe - 470nm blue light less invasive than UV light
  • Flexible - UV tray adaptors available, compatible with MJ-105A or ME15-7-10-15.
  • Versatile - support gel trays 150x150mm or smaller
  • Optimized performance - SYBR series DNA/RNA stains, Novel Juice and Midori Green series
  • Simple - DNA/RNA recovery method

MBE-150-PLUS includes:

1 x SafeBlue Illuminator

1 x SafeBlue Electrophoresis Tank

1 x Filter lid

1 x Threaded Black and Red Electrophoresis Cable

1 x 150x70mm UV tray

1 x 150x100mm UV tray

1 x 150x150mm UV tray

2 x 20 sample combs (1mm thick)

2 x UV tray casting dams

1 x SafeBlue electrophoresis gel tank image enhancer film

Cat. No. MBE-150
Output Voltage / Inc. 10-150V / 1V
Output Current / Inc. 10-300mA / 1mA
Max. Power 30W
Operating Mode Constant Voltage or Current
Timer 999 (min) with alarm / Continuous
Safety Device No load detection
Crossover Yes
Blue Light Wavelength 470nm
Operating Temperature Ambient to 40°
Dimension (WxLxH) Approx. 11.5"x7.9"x3.2" (293x200x80mm)
Weight Approx. 2.4lb (1.1kg)
Material Polycarbonate housing and aluminum base plate
Power Adaptor Input: 100-240VAC, 50/60Hz, 1.4A
Output: 15VDC, 4.0A, 60W max.
Dimension (WxLxH) Approx. 10.4"x6.9"x3.5" (265x175x90mm)
Gel Dimension (WxL) Approx. 5.9"x2.8" (150x70mm), 5.9"x3.9" (150x100mm), 5.9"x5.9" (150x150mm)
Maximum Sample 70 for 5.9"x2.8" (150x70mm) Tray (2x35 sample combs)
140 for 5.9"x3.9" (150x100mm) Tray (4x35 sample combs)
210 for 5.9"x5.9" (150x150mm) Tray (6x35 sample combs)
Buffer Volume 500ml
Construction Acrylic (Injection molded construction)
Durable, leak proof environment for complete safety and long life
Cassette Type Electrode Inexpensive, easy to replace
Electrical Safety Lid can only be fastened in one way
Upon lid removal, power is disconnected from buffer chamber
Rapid Casting Gel Use casting dams
Cat. No. MBE-LID-Y1
Dimension (WxLxH) Approx. 6.9"x10.6"x1.4" (176x268x35mm)
Filter Type Amber filter (for dyes selection, please click Accessories tab to see the comparison table for various nucleic acid stain performance.)
Lid Filter Wiper Used to remove condensation
Material Polycarbonate
Cat. No. Product Description
MBE-150-PLUS SafeBlue Electrophoresis System, including SafeBlue Illuminator, electrophoresis gel tank, amber filter lid, image enhancer film and red/black cable
Cat. No. Product Description
MBE-TANK ME15 Tank for SafeBlue without Lid and Red/Black Cable
MBE-LID-Y1 MBE-150 Lid,yellow
MBE-150-CABLE Threaded Black and Red Electrophoresis Cable
MBE-TANK-01 120x155mm, shiny black protective film
MBE-150-02 165x140x19mm, Acrylics, cutting platform
MBE-150-3 Base unit platform protective film
ME15-UV15-TH01 ME15-UV15 Tray Holder, 2 cuts, cut size 109.5x60.5mm(For MJ-105 Trays)
ME15-UV15-TH02 ME15-UV15 Tray Holder, 1 cuts, cut size 130.5x122.5mm
MBE-G-Y1 Amber filter viewing glasses, 560nm
MST-50 Major Blue 50 µl
MST-1000 Major Blue 1000 µl

* For more information of MBE-IMG-CA/CM, please refer to SafeBlue Imager System.

Comparison table for various nucleic acid stain performance

Nucleic Acid Stain Performance Experimental Protocol
Pre-staining Post Staining Sample Staining
Major Blue Excellent
SYBR® Green I (DNA) Excellent
SYBR® Green II (RNA) Excellent
SYBR® Gold Excellent
Midori Green Driect Excellent
Hydra Green™ Safe DNA Dye Excellent
HD Green™ DNA Stain Excellent
Novel Juice Excellent
SafeView DNA Stain Good
SYBR® Safe Good
Midori Green Good
Midori Green Advanced Good
Serva DNA Stain Clear G Good
GelGreen ™ Good
GelRed ™ NR
Ethidium Bromide NR
HealthView ™ NR

* NR= Not recommended *

Innovative Electrophoresis System

  • 1. Early detection of running error (run as you see)
  • 2. No more gel-transfer, gloves free!
  • 3. Saves you time for gel staining & destaining
  • 4. Compact in size (no large lab area required)
