MS-ChemiDoc Chemiluminescence Imager
Product
Chemiluminescence Imager, MS-ChemiDoc chemiluminescence detection: Western Blot, Southern Blot, Northern Blot and other blotting experiments using substrates such as HRP, AP, etc.

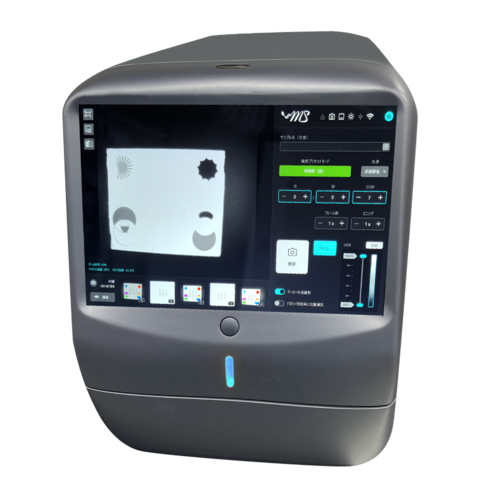

- 10" Full-Color Capacitive Touchscreen: Intuitive and Smooth Operation

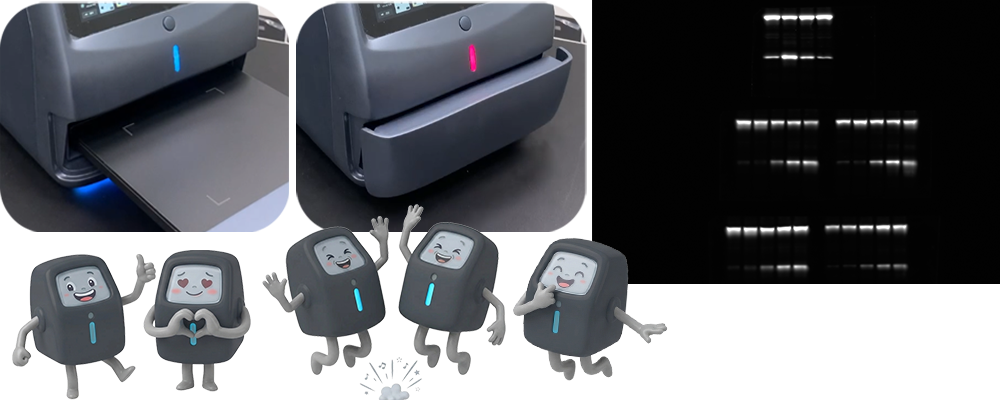

- Dual Mode (Physical Buttons & Touch-Free Gesture Control): Wave to operate the tray and prevent contamination
- Smart Status Indicators: Monitor imaging progress from a distance via ambient breathing lights
- Chemiluminescence Detection: Western Blot, Southern Blot, Northern Blot and other blotting experiments using substrates such as HRP, AP, etc.
* Technical specifications subject to change without notice.
| Cat. No. | MS-ChemiDoc |
|---|---|
| Camera | Sony |
| Resolution | 9 Megapixels CMOS |
| Lens | 25mm, f/0.95 |
| Quantum Efficiency (QE) | 92% @ 540nm |
| Maximum Image Area | 145 x 145mm |
| Pixel Size | 3.76 x 3.76 μm |
| Readout Noise | 0.9 e- |
| Cooling Temperature | -25°C @ Ambient 22°C |
| Chemiluminescence Sample Tray | Single-layer |
| Auto Exposure | Yes |
| Autofocus | Yes |
| Image Storage | Internal Hard Drive, USB |
| Storage | 128 GB |
| Image | TIFF and JPG |
| Ethernet | Yes |
| Wi-Fi | Standard |
| Weight | Approx. 16kg |
| Instrument Size（D×W×H） | 400×300×385mm |
* For reference only, subject to practice.
| Cat. No. | Product Description |
|---|---|
| MS-ChemiDoc | Chemiluminescence Imager |
