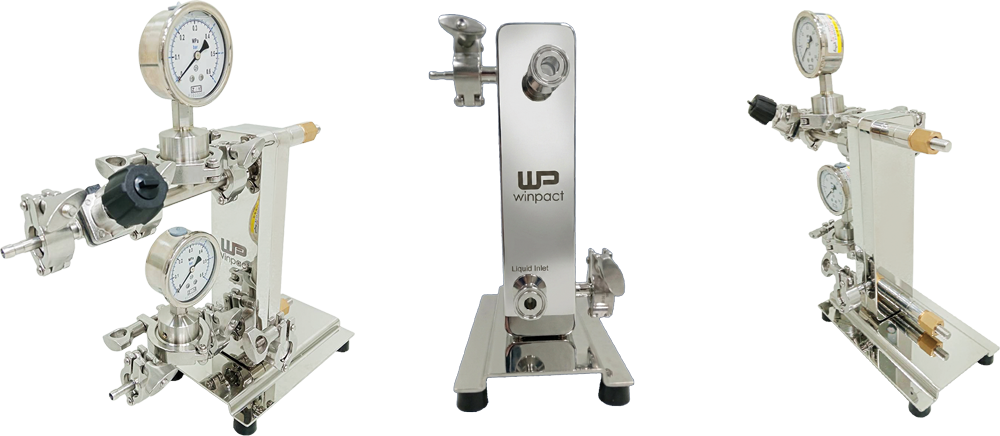

Laboratory-Scale Microfiltration System, WP-MF
WP-MF Laboratory-Scale Microfiltration System
Product
Laboratory-Scale Microfiltration System, WP-MF. Operating Mode: Cross-flow / Tangential Flow Filtration.

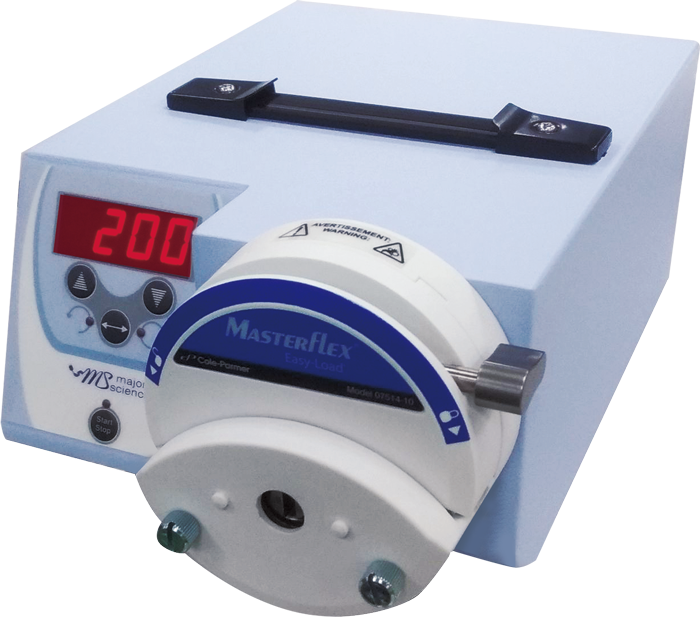

*Optional peristaltic pump is available.
- Operating Mode: Cross-flow / Tangential Flow Filtration
- Pump Type: Peristaltic Pump
- Tubing Material: 316L Stainless Steel
* Technical specifications subject to change without notice.
| Cat. No. | WP-MF |
|---|---|
| Filtration | Microfiltration (MF) |
| Operating Mode | Cross-flow / Tangential Flow Filtration |
| Pump Type | Peristaltic Pump |
| Flow Rate Range* | 20 – 500 mL/min |
| Tubing Material | 316L Stainless Steel |
| Membrane Holder | 316L Sanitary Stainless Steel |
| Connection Type | Sanitary quick-clamp fittings |
| Valve Type | diaphragm valves |
| Pressure Monitoring | X2, diaphragm pressure gauges |
| Pressure Range | 0 – 4 bar |
| Membrane Format | Cassette / Flat Sheet |
| Effective Membrane Area | 0.1 m² |
| Installation Type | Removable cassette structure |
| Flow Pattern | Cross-flow |
| Supported Processes | MF / UF |
| Cat. No. | Product Description |
|---|---|
| WP-MF | Laboratory-Scale Microfiltration System |
Membrane Material
Biomax® Series (Polyethersulfone, PES)| Model | Molecular Weight Cut-Off (MWCO) | pH range | Temperature range(°C) |
|---|---|---|---|
| Biomax-5 | 5000 | 2~14 | 4~50 |
| Biomax-8 | 8000 | 2~14 | 4~50 |
| Biomax-10 | 10000 | 2~14 | 4~50 |
| Biomax-30 | 30000 | 2~14 | 4~50 |
| Biomax-50 | 50000 | 2~14 | 4~50 |
| Biomax-100 | 100000 | 2~14 | 4~50 |
| Biomax-300 | 300000 | 2~14 | 4~50 |
| Biomax-500 | 500000 | 2~14 | 4~50 |
| Biomax-1000 | 1000000 | 2~14 | 4~50 |
| Model | Molecular Weight Cut-Off (MWCO) | pH range | Temperature range(°C) |
|---|---|---|---|
| PLAC | 1000 | 2~11 | 4~50 |
| PLAB | 3000 | 2~11 | 4~50 |
| PLCCC | 5000 | 2~11 | 4~50 |
| PLCGC | 10000 | 2~12 | 4~50 |
| PLCTK | 30000 | 2~12 | 4~50 |
| PLCHK | 100000 | 2~12 | 4~50 |
| PLCMK | 300000 | 2~12 | 4~50 |
| PLCXK | 1000000 | 2~12 | 4~50 |
| Model | Molecular Weight Cut-Off (MWCO) | pH range | Temperature range(°C) |
|---|---|---|---|
| VVPP | 0.1μm | 2~11 | 4~50 |
| GVPP | 0.22μm | 2~11 | 4~50 |
| HVPP | 0.45μm | 2~11 | 4~50 |
| DVPP | 0.65μm | 2~11 | 4~50 |
