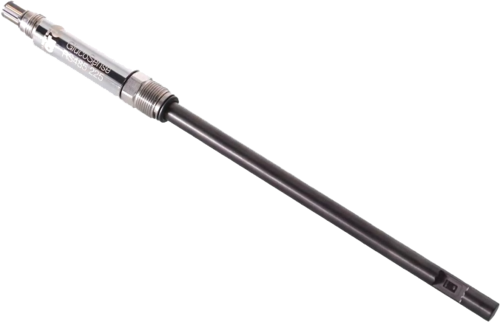

GlucoSense(Glu) Optical Sensors, FS-O-GLU-GLUCOSENSE Series
GlucoSense(Glu) Optical Sensors, FS-O-GLU-GLUCOSENSE Series
Product
Glucose (Glu) is one of the critical process parameters in biopharma production processes. Real-time glucose monitoring can help deliver higher viable cell density, a prolonged growth phase, and higher product yield. Furthermore, it enables consistent process performance across different R&D and production scales, thereby optimizing manufacturing efficiency.
- Measuring Range 0.5 to 25.0 g/L
- Sensor Insertion Depth Minimum 20 mm above the sensing element
- Autoclavable 130 °C, 30-minute sterilization duration
* All images are for reference only, actual products might differ from the pictures above.
* Technical specifications subject to change without notice.
| Model | GlucoSense |
|---|---|
| Process Connection | PG13,5 |
| Electrical Connector | VP8 |
| Sensor Output | Arc: Modbus |
| Measuring Range | 0.5 to 25.0 g/L |
| pH Value | The specified glucose measurement accuracy applies when the process pH remains constant within ±0.2 units |
| Electrolyte | None |
| Accuracy at 25 °C | ±0.5 g/l after product calibration at the measurement temperature. Valid for whole measurement range. |
| Sensor Insertion Depth | Minimum 20 mm above the sensing element |
| O-ring Material | EPDM (Ethylene propylene elastomer) |
| Certificate | Yes, factory calibration with certified solutions |
| Diameter | 12 mm |
| Autoclavable | Yes (130 °C, 30-minute sterilization duration) |
| Operating Temperature Range | -10 to 130 °C; the sensor provides no Glucose reading above 60 °C |
| Pressure Range bar g | 0 to 5 bar(g) |
| Protection Rating | IP68 |
| Required Flow | None |
| Temperature Measuring Range | The declared glucose measurement accuracy is valid within the temperature range from 25°C to 38°C. |
| Cat. No. | Product Description |
|---|---|
| FS-O-GLU-GLUCOSENSE-101 | 120mm GlucoSense probe, GlucoSense probe cable, probe adaptor. |
| FS-O-GLU-GLUCOSENSE-102 | 225mm GlucoSense probe, GlucoSense probe cable, probe adaptor. |
| FS-O-GLU-GLUCOSENSE-103 | 325mm GlucoSense probe, GlucoSense probe cable, probe adaptor. |
| FS-O-GLU-GLUCOSENSE-104 | 425mm GlucoSense probe, GlucoSense probe cable, probe adaptor. |
