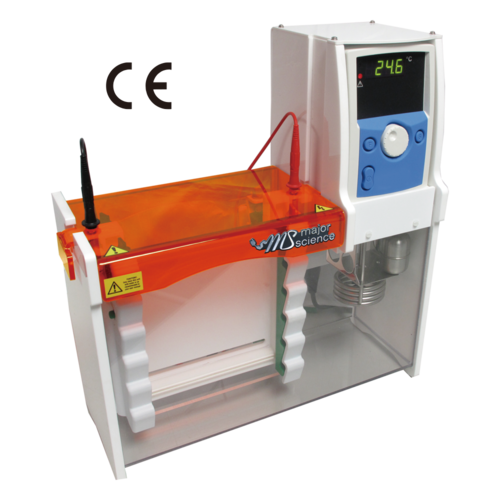

Denaturing Gradient Electrophoresis, MV20-WAVE-DGGE
Product
The MV20-WAVE-DGGE is a complete system for DNA mutation analysis. It is fully equipped with temperature control unit, stirrer, and gradient mixer and casting accessories to perform specific mutation analysis applications. A powerful microprocessor controlled PID temperature control unit enables various mutation detection techniques to be undertaken between ambient temperature and 70°C, while the simple four screw design of the WAVE insert accelerates set up of denaturing PAGE gels. The flexibility provided by the modular design of the MV20-WAVE-DGGE and its wide range of accessories enables laboratories to switch quickly and easily between different mutation detection techniques, thereby maximizing throughput and screening efficiency. A maximum 96-sample throughput allows detection of as many mutations within a couple hours, alleviating many of the bottlenecks associated with screening for DNA mutations.
MS02_Electrophoresis* Marketing video
- Maximum 96-sample throughput
- Large format - 200x200mm glass plates
- Use with 100ml gradient mixer to make two 1mm parallel denaturing gradient gels
- Compatible with microplates and thermal cycler blocks
- Ideal for detection of single base changes and polymorphisms in genomic cloned and amplified DNA fragments
* All images are for reference only, actual products might differ from the pictures above.
* Technical specifications subject to change without notice.
| Cat. No. | MV20-WAVE-DGGE | |
|---|---|---|
| WAVE Electrophoresis Insert And Tank | ||
| Max. Number Of Gels | 2 per run | |
| Plate Dimension (WxH) | Approx. 7.9"x7.9" (200x200mm) | |
| Active Gel Dimension (WxH) | Approx. 6.3"x6.9" (160x175mm) | |
| Thicknesses | 0.75, 1, 1.5 and 2mm | |
| Max. Sample Capacity | 96 samples; 48 per gel | |
| Standard Combs | 2x1mm 24-sample | |
| Available Combs | 1, 5, 10, 18 MC, 24, 36 MC, 48; as per MV20WAVE and Maxi units | |
| Max. Buffer Volume | 2.25gal (8.5L) | |
| Dimension (WxLxH) | Approx. 15.9"x6.7"x1.7" (405x170x440mm) | |
| Weight | Approx. 17.6lb (8kg) | |
| Temperature Control Unit | ||
| Temperature Control | PID | |
| Operating Temperature Range | Ambient - 100ºC | |
| Working Temperature Range (DGGE) | 45-70ºC | |
| Buffer Recirculation Mechanism | Stirring | |
| Temperature Uniformity / Stability At 37ºC | ±0.05 / 0.02ºC | |
| Setting / Display Resolution | 0.1ºC | |
| Safety | Fluid-level float switch; isolated; IEC 1010/CE | |
| Stored Temperature Values | 4 | |
| Heater Power At 230V/110VAC | 1.4/1.3kW | |
| Electrical Power At 230V/100VAC | 1.5/1.4kW (50-60Hz) | |
| Recommended Power Supply MP-510 | ||
| Rated Voltage | 500V | |
| Current | 800mA / 500ml | |
| Power | 300W / 150W | |
| Gradient Mixer | ||
| Total Volume | 100ml | |
| Volume Of Reservoir & Mixing Chambers | 50ml | |
| Internal Diameter Of Outlet Port | 2mm | |
| Cat. No. | Product Description |
|---|---|
| MV20-WAVE-DGGE-110/220 | Complete denaturing gradient gel electrophoresis system, 200x200mm; includes: temperature control unit, cam casting base, glass plates with 1mm bonded spacers, 2x24-sample combs and gradient mixer, 110V / 220V |
| MV20-WAVE-DGGETC-110/220 | MV20-WAVE-DGGE-110 temperature control unit, 110V / 220V |
| MGM-100 | Gradient mixer, 100ml |
| Cat. No | Recommended Accessories Description |
|---|---|
| MU-D01 | Digital Peristaltic Pump, 110 / 220V~ |
| MU-S16 | Silicon tube I.D. 0.12 inch (3.1mm), 25ft |
| MP-510 | Lively 500V Power Supply |
