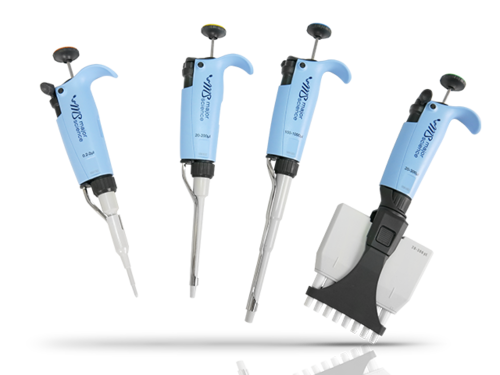

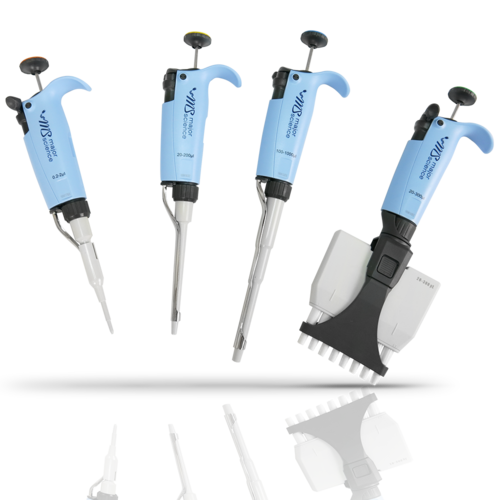

MS Pipette, MSP Series
MS Pipette, MSP Series is a reliable instrument that can perform accurate, contamination-free experiment with ease.
Product
MS Pipette is a reliable instrument that can perform accurate, contamination-free experiment with ease.
Based on the latest innovation in terms of ergonomics and comfort, the main body is designed for easy operation by either right or left hand, big or small hand. The new piston mechanism design requires low pipetting force and low maintenance frequency. The robust construction is fully autoclavable and chemical resistant, which provides user contamination-free and safe experiment environment.
On site calibration is easy to perform. In addition, MS Pipette is compatible with a majority of brands of tips on the market. With ISO certification, Major Science provides customers with the “Best Value” combination of quality, features, service and price. All accessory parts are available through Major Science service centers.
Precise volume adjustment & light pipetting forces
A. Color-coded push-button Color-coded push-buttonB. Operating-rod Operating-rod
C. Easy tip ejection
D. Volumeter display (Counter)
E. Connecting nut Connecting nut
F. Tip-holder Tip-holder
G. Easy tip-ejector removal Easy tip-ejector removal
Use the serial number to identify the pipette and to determine its age
- Light weight
- Soft spring system for extremely low pipetting forces
- Controlled volume setting to prevent accidental volume changes
- Different color coded push button for different volume
- Contoured shape: fits either small or large hands
- Large pushbutton, rounded and freely rotating
- Finger hook: takes the weight, for a more relaxed grip
- 3-position tip ejector button (left/right handed users)
- Easy on site calibration (calibration key included)
- High accuracy and precision
- A unique serial number
- UV resistance even under prolonged exposure
- Fully autoclavable (121°C/0.1MPa/20 min)
Conception of new seals and lighter springs and use of high quality lubricant:
- Reduce pipetting and purge forces by 50%
- Have an easy glide of the piston
- Maintain an adequate ratio (~1/3) between pipetting forces and purge forces to feel confident in results
- Maintain quality and robustness of our pipetting system.
* All images are for reference only, actual products might differ from the pictures above.
* Technical specifications subject to change without notice.
| Single Channel Models | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Cat No. | Volume (µL) | SPECIFICATIONS | ISO 8655 | ||||||
| Systematic Error | Random Error | Systematic Error | Random Error | ||||||
| (µL) | (%) | (µL) | (%) | (µL) | (%) | (µL) | (%) | ||
| MSP-2 | 0.2 | ±0.026 | ±13.2% | MSP-2 | 0.2 | ±0.026 | ±13.2% | MSP-2 | 0.2 |
| 2 | ±0.033 | ±1.7% | 2 | ±0.033 | ±1.7% | 2 | |||
| MSP-10 | 1 | ±0.028 | ±2.8% | MSP-10 | 1 | ±0.028 | ±2.8% | MSP-10 | 1 |
| 10 | ±0.110 | ±1.1% | 10 | ±0.110 | ±1.1% | 10 | |||
| MSP-20 | 2 | ±0.11 | ±5.5% | MSP-20 | 2 | ±0.11 | ±5.5% | MSP-20 | 2 |
| 20 | ±0.20 | ±1.0% | 20 | ±0.20 | ±1.0% | 20 | |||
| MSP-100 | 10 | ±0.39 | ±3.9% | MSP-100 | 10 | ±0.39 | ±3.9% | MSP-100 | 10 |
| 100 | ±0.80 | ±0.8% | 100 | ±0.80 | ±0.8% | 100 | |||
| MSP-200 | 20 | ±0.55 | ±2.8% | MSP-200 | 20 | ±0.55 | ±2.8% | MSP-200 | 20 |
| 200 | ±1.60 | ±0.8% | 200 | ±1.60 | ±0.8% | 200 | |||
| MSP-1000 | 100 | ±3.3 | ±3.3% | MSP-1000 | 100 | ±3.3 | ±3.3 | MSP-1000 | 100 |
| 1000 | ±0.8 | ±8.0% | 1000 | ±0.8 | ±8.0% | 1000 | |||
| MSP-5000 | 500 | ±13 | ±2.6% | MSP-5000 | 500 | ±13 | ±2.6% | MSP-5000 | 500 |
| 5000 | ±33 | ±0.7% | 5000 | ±33 | ±0.7% | 5000 | |||
| MSP-10000 | 1000 | ±33 | ±3.3% | MSP-10000 | 1000 | ±33 | ±3.3% | MSP-10000 | 1000 |
| 10000 | ±60 | ±0.6% | 10000 | ±60 | ±0.6% | 10000 | |||
| Multichannel Models | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Cat No. | Volume (µL) | SPECIFICATIONS | ISO 8655 | ||||||
| Systematic Error | Random Error | Systematic Error | Random Error | ||||||
| (µL) | (%) | (µL) | (%) | (µL) | (%) | (µL) | (%) | ||
| MSP-8X10 | 0.5 | ±0.09 | ±17.6% | MSP-8X10 | 0.5 | ±0.09 | ±17.6% | MSP-8X10 | 0.5 |
| MSP-8X20 | 2 | ±0.11 | ±5.5% | MSP-8X20 | 2 | ±0.11 | ±5.5% | MSP-8X20 | 2 |
| MSP-8X200 | 20 | ±0.6 | ±2.8% | MSP-8X200 | 20 | ±0.6 | ±2.8% | MSP-8X200 | 20 |
| MSP-8X300 | 20 | ±1.1 | ±3.7% | MSP-8X300 | 20 | ±1.1 | ±3.7% | MSP-8X300 | 20 |
| MSP-12X10 | 10 | ±0.22 | ±2.2% | MSP-12X10 | 10 | ±0.22 | ±2.2% | MSP-12X10 | 10 |
| MSP-12X20 | 20 | ±0.40 | ±2.0% | MSP-12X20 | 20 | ±0.40 | ±2.0% | MSP-12X20 | 20 |
| MSP-12X200 | 200 | ±2.2 | ±1.1% | MSP-12X200 | 200 | ±2.2 | ±1.1% | MSP-12X200 | 200 |
| MSP-12X300 | 300 | ±3.3 | ±1.1% | MSP-12X300 | 300 | ±3.3 | ±1.1% | MSP-12X300 | 300 |
Tip Compatibility
| Tip Compatibility | ||||||||
|---|---|---|---|---|---|---|---|---|
| Major Science Single Channel Pipettes w/ Tips | ||||||||
| Key: | Ο:Not Compatible Ο:Poor Fit Ο:Ok fit Ο:Good fit -: N/A Φ: No ejection possible | |||||||
| Major Science Pipettes | ||||||||
| Tip Brand | Volume | MSP-2, MSP-10 | MSP-20 | MSP-100 | MSP-200 | MSP-1000 | MSP-5000 | MSP-10000 |
| Axygen | 10µL (short) | Ο | Φ | - | - | - | - | - |
| 10µL (long) | Ο | Φ | - | - | - | - | - | |
| 20µL | Ο | Ο | - | - | - | - | - | |
| 100µL | - | - | Ο | Ο | - | - | - | |
| 200µL | - | Ο | Ο | Ο | - | - | - | |
| 300µL | - | - | - | Ο | - | - | - | |
| 1000µL | - | - | - | - | Ο | - | - | |
| 1100µL | - | - | - | - | Ο | - | - | |
| 5000µl | - | - | - | - | - | Ο | - | |
| Brand | 10µl (long) | Ο | Φ | - | - | - | - | - |
| 200µl | - | - | - | - | ||||
| 1000µl | - | - | - | - | Ο | - | - | |
| 5000µl | - | - | - | - | - | Ο | - | |
| 10mL | - | - | - | - | - | - | Ο | |
| Greiner / Sapphire | 10µL | Ο | Φ | - | - | - | - | - |
| 20µL | Ο | Φ | - | - | - | - | - | |
| 100µL | - | - | Ο | - | - | - | - | |
| 200µL | - | - | Ο | Ο | - | - | - | |
| 1000µL | - | - | - | - | Ο | - | - | |
| Starlab | 10µL (long) | Ο | Φ | - | - | - | - | - |
| 20µL | Ο | Ο | Ο | - | - | - | - | |
| 100µL | - | - | Ο | - | - | - | - | |
| 200µL | - | Ο | Ο | Ο | - | - | - | |
| 300µL | - | - | Ο | Ο | - | - | - | |
| 1000µL | - | - | - | - | Ο | - | - | |
| 1250µl | - | - | - | - | - | - | - | |
| 5000µl | - | - | - | - | - | Ο | - | |
| 10mL | - | - | - | - | Ο | - | Ο | |
| Eppendorf | 10µL (long) | Ο | Φ | - | - | - | - | - |
| 20µL | Ο | Ο | Ο | - | - | - | - | |
| 100µL | - | - | Ο | Ο | - | - | - | |
| 200µL | - | Ο | Ο | Ο | - | - | - | |
| 300µL | - | - | - | Ο | - | - | - | |
| 1000µL | - | - | - | - | Ο | - | - | |
| 1250µl | - | - | - | - | - | - | - | |
| 5000µl | - | - | - | - | - | Ο | - | |
| 10mL | - | - | - | - | - | - | Ο | |
| Sartorius | 10µL | Ο | Φ | - | - | - | - | - |
| 200µl | - | Ο | Ο | Ο | - | - | - | |
| 350µL | - | - | Ο | Ο | - | - | - | |
| 1000µl | - | - | - | - | Ο | - | - | |
| 5000µl | - | - | - | - | - | Ο | - | |
| 10mL | - | - | - | - | - | - | Ο | |
| Rainin | 10µL (short) | Ο | Φ | - | - | - | - | - |
| 10µL (long) | Ο | Φ | - | - | - | - | - | |
| 20µL | Ο | Ο | - | - | - | - | - | |
| 100µL | - | - | Ο | Ο | - | - | - | |
| 200µL | - | Ο | - | Ο | - | - | - | |
| 350µL | - | - | Ο | Ο | - | - | - | |
| 1000µl | - | - | - | - | Ο | - | - | |
| 5000µl | - | - | - | - | - | Ο | - | |
| 10mL | - | - | - | - | - | - | Ο | |
| Sorenson Expert | 10µL (short) | Ο | Φ | - | - | - | - | - |
| 10µL (long) | Ο | Φ | - | - | - | - | - | |
| 200µL | - | Ο | Ο | Ο | - | - | - | |
| 300µL | - | - | - | Ο | - | - | - | |
| 1250µl | - | - | - | - | Ο | - | - | |
| Labcon | 10µL | Ο | Φ | - | - | - | - | - |
| 200µL | - | - | Ο | Ο | - | - | - | |
| 300µL | - | - | - | Ο | - | - | - | |
| 1000µl | - | - | - | - | Ο | - | - | |
| Neptune | 10µL | Ο | Φ | - | - | - | - | - |
| 20µl | Ο | Φ | - | - | - | - | - | |
| 100µl | - | - | Ο | - | - | - | - | |
| 200µl | - | - | Ο | Ο | - | - | - | |
| 300µl | - | - | - | Ο | - | - | - | |
| 1000µl | - | - | - | - | Ο | - | - | |
| 5000µl | - | - | - | - | - | Ο | - | |
| Biotix | 10µl | Ο | Φ | - | - | - | - | - |
| 20µl | Ο | Ο | - | - | - | - | - | |
| 100µl | - | - | Ο | - | - | - | - | |
| 200µl | - | - | Ο | Ο | - | - | - | |
| 300µl | - | - | - | Ο | - | - | - | |
| 1250µl | - | - | - | - | Ο | - | - | |
| Thermo Art | 10µl | Ο | - | - | - | - | - | - |
| 200µl | - | Ο | Ο | Ο | - | - | - | |
| 300µl | - | Ο | - | Ο | - | - | - | |
| 1000µl | - | - | - | - | Ο | - | - | |
| 1250µl | - | - | - | - | Ο | - | - | |
| Thermo Finntip | 10µl (short) | Ο | - | - | - | - | - | - |
| 10µl (long) | - | Ο | - | - | - | - | - | |
| 200µl | - | Ο | Ο | Ο | - | - | - | |
| 300µl | - | - | - | Ο | - | - | - | |
| 1000µl | - | - | - | - | Ο | - | - | |
| 5000µl | - | - | - | - | - | Ο | - | |
| 10mL | - | - | - | - | - | - | Ο | |
| Cat. No | Description |
|---|---|
| MSP-2 | MS pipette, variable volume 0.2~2μl |
| MSP-10 | MS pipette, variable volume 1~10μl |
| MSP-20 | MS pipette, variable volume 2~20μl |
| MSP-100 | MS pipette, variable volume 10~100μl |
| MSP-200 | MS pipette, variable volume 20~200μl |
| MSP-1000 | MS pipette, variable volume 100~1000μl |
| MSP-5000 | MS pipette, variable volume 500~5000μl |
| MSP-10000 | MS pipette, variable volume 1000~10000μl |
| MSP-8X10 | MS 8-ch pipette, variable volume 0.5~10μl |
| MSP-8X20 | MS 8-ch pipette, variable volume 2~20μl |
| MSP-8X200 | MS 8-ch pipette, variable volume 20~200μl |
| MSP-8X300 | MS 8-ch pipette, variable volume 20~300μl |
| MSP-12X10 | MS 12-ch pipette, variable volume 0.5~10μl |
| MSP-12X20 | MS 12-ch pipette, variable volume 2~20μl |
| MSP-12X200 | MS 12-ch pipette, variable volume 20~200μl |
| MSP-12X300 | MS 12-ch pipette, variable volume 20~300μl |
| MSP-ST03 | Pipette Stand |
*Technical specification and price not final and are subject to change.
Single channel / Multichannel models
| Cat No. | Volume (µL) | SPECIFICATIONS | ISO 8655 | ||||||
|---|---|---|---|---|---|---|---|---|---|
| Systematic error | Random error | Systematic error | Random error | ||||||
| (µL) | (%) | (µL) | (%) | (µL) | (%) | (µL) | (%) | ||
| MSP-2 | 0.2 | ±0.026 | ±13.2% | ≤0.013 | ≤6.6% | ±0.080 | ±40.0% | ≤0.040 | ≤20.0% |
| 2 | ±0.033 | ±1.7% | ≤0.015 | ≤0.8% | ±0.080 | ±4.0% | ≤0.040 | ≤2.0% | |
| MSP-10 | 1 | ±0.028 | ±2.8% | ≤0.013 | ≤1.3% | ±0.120 | ±12.0% | ≤0.080 | ≤0.8% |
| 10 | ±0.110 | ±1.1% | ≤0.044 | ≤0.4% | ±0.120 | ±1.2% | ≤0.080 | ≤0.8% | |
| MSP-20 | 2 | ±0.11 | ±5.5% | ≤0.033 | ≤1.7% | ±0.20 | ±10.0% | ≤0.100 | ≤5.0% |
| 20 | ±0.20 | ±1.0% | ≤0.066 | ≤0.3% | ±0.20 | ±1.0% | ≤0.100 | ≤0.5% | |
| MSP-100 | 10 | ±0.39 | ±3.9% | ≤0.11 | ≤1.1% | ±0.80 | ±8.0% | ≤0.030 | ≤3.0% |
| 100 | ±0.80 | ±0.8% | ≤0.17 | ≤0.2% | ±0.80 | ±8.0% | ≤0.030 | ≤0.3% | |
| MSP-200 | 20 | ±0.55 | ±2.8% | ≤0.22 | ≤1.1% | ±1.60 | ±8.0% | ≤0.60 | ≤3.0% |
| 200 | ±1.60 | ±0.8% | ≤0.33 | ≤0.2% | ±1.60 | ±0.8% | ≤0.60 | ≤0.3% | |
| MSP-1000 | 100 | ±3.3 | ±3.3% | ≤0.7 | ≤0.7% | ±8.0 | ±8.0% | ≤3.0 | ≤3.0% |
| 1000 | ±0.8 | ±8.0% | ≤1.7 | ≤0.2% | ±8.0 | ±0.8% | ≤3.0 | ≤0.3% | |
| MSP-5000 | 500 | ±13 | ±2.6% | ≤3.3 | ≤0.7% | ±40 | ±8.0% | ≤15 | ≤3.0% |
| 5000 | ±33 | ±0.7% | ≤8.8 | ≤0.2% | ±40 | ±0.8% | ≤15 | ≤0.3% | |
| MSP-10000 | 1000 | ±33 | ±3.3% | ≤6.6 | ≤0.7% | ±60 | ±6.0% | ≤30 | ≤3.0% |
| 10000 | ±60 | ±0.6% | ≤17.6 | ≤0.2% | ±60 | ±0.6% | ≤30 | ≤0.3% | |
| MSP-8X10 | 0.5 | ±0.09 | ±17.6% | ≤0.04 | ≤8.8% | ±0.24 | ±48.0% | ≤0.16 | ≤32.0% |
| MSP-8X20 | 2 | ±0.11 | ±5.5% | ≤0.09 | ≤4.4% | ±0.40 | ±20.0% | ≤0.20 | ≤10.0% |
| MSP-8X200 | 20 | ±0.6 | ±2.8% | ≤0.28 | ≤1.4% | ±3.2 | ±16.0% | ≤1.20 | ≤6.0% |
| MSP-8X300 | 20 | ±1.1 | ±3.7% | ≤0.39 | ≤1.3% | ±8.0 | ±26.7% | ≤3.00 | ≤10.0% |
| MSP-12X10 | 10 | ±0.22 | ±2.2% | ≤0.11 | ≤1.1% | ±0.24 | ±2.4% | ≤0.16 | ≤1.6% |
| MSP-12X20 | 20 | ±0.40 | ±2.0% | ≤0.17 | ≤0.8% | ±0.40 | ±2.0% | ≤0.20 | ≤1.0% |
| MSP-12X200 | 200 | ±2.2 | ±1.1% | ≤0.55 | ≤0.3% | ±3.2 | ±1.6% | ≤1.20 | ≤0.6% |
| MSP-12X300 | 300 | ±3.3 | ±1.1% | ≤1.10 | ≤0.4% | ±8.0 | ±2.7% | ≤3.00 | ≤1.0% |
 |
 |
 |
 |
| MSP-2 | MSP-200 | MSP-8X10 | MSP-12X10 |
 |
 |
 |
 |
| MSP-100 | MSP-1000 | MSP-8X20 | MSP-12X20 |
 |
 |
 |
 |
| MSP-20 | MSP-5000 | MSP-8X200 | MSP-12X200 |
|
 |
 |
 |
| MSP-100 | MSP-10000 | MSP-8X300 | MSP-12X300 |
