10L Stirring Water Bath, SWB-10L series
Product
The MS Stirring Water Bath series packed with built-in thermostatic baths are innovative product line to provide precise temperature control and excellent mixing performance for a wide range of laboratory applications. The built-in stirring mechanism not only provides outstanding temperature uniformity, but also applies a stirring mixture function. The 10L stainless steel tank can operate flask(s) containing a moderate amount of solution simultaneously. Single stirring mechanism model and multi-stirring models are available for your preference.
MS07_Stirring Water Bath SWB-10L / SWB-20L * Marketing video
MS07_Stirring Water Bath SWB-10L / SWB-20L
- Microprocessor control with digital performance for precise, accurate control
- Built-in magnetic stirring mechanism for water agitation, water temperature uniformity and medium solution mixing
- Stirring speed control
- LCD screen shows temperature and timer simultaneously
- User temperature calibration
- Safety device: warning indication on screen to avoid overheating and automatic shut down
- Multiple stirring mechanism capability

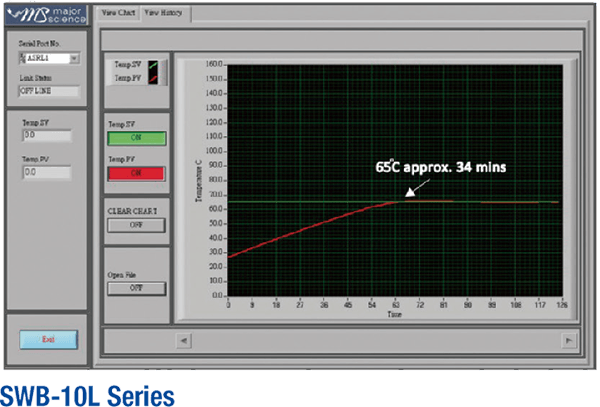

- Data Logging software available
Max. chamber capability
(no using stirring mixture function):
6 sets of 250ml flasks
4 sets of 500ml flasks
 |
 |
 |
| Concave lid design allows condensation flow back to the tank. | Side opening of the lid to allow minimum evaporation while maintaining water bath temperature. | Water Circulation Function |
 Magnetic Agitator |
||
 Stir bar |
* All images are for reference only, actual products might differ from the pictures above.
* Technical specifications subject to change without notice.
| Cat. No. | SWB-10L-1 | SWB-10L-2 |
|---|---|---|
| Number Of Stirring Mechanisms | 1 | 2 |
| Stirring Speed | 400-1500rpm (measured by percentage, nonlinearity) | |
| Bath Capacity | Approx. 2.64gal (10L) | |
| Water Circulation Function | Yes | |
| Display | LCD | |
| Heating Power | 600W | |
| Controller | Digital microprocessor controller | |
| Bath Temperature | 5°C above ambient to 99°C | |
| Temperature Increment | 0.1°C | |
| Temperature Accuracy | ±0.2°C at 37°C | |
| Temperature Calibration | Yes | |
| Timer | 99 (hr): 59 (min) / Continuous | |
| Safety Device | Warning indication on screen with alarm and automatic shut down | |
| Operating Temperature | Ambient to 40°C | |
| Bath Tank Material | 304 stainless steel | |
| Bath Inner Dimension (WxLxH) | Approx. 9.5"x11.8"x5.9" (240x300x150mm) | |
| Dimension (WxLxH) (without lid) | Approx. 10"x14"x9.5" (255x355x240mm) (without lid) | |
| Rear Drainage Port | N / A | |
| Material | Painted iron metal | |
| Lid Material | Polycarbonate with stainless steel handle | |
| Communication Port | RS232 | |
| Weight | Approx. 19.8lb (9kg) | |
| Rated Voltage | 110V / 220V~ | |
| Cat. No. | Product Description |
|---|---|
| SWB-10L-1-110 / 220 | 10L Stirring Water Bath with 1 built-in stirring mechanism, lid included |
| SWB-10L-2-110 / 220 | 10L Stirring Water Bath with 2 built-in stirring mechanism, lid included |
| Cat. No | Product Description |
|---|---|
| SWB-LID10 | Transparent lid for 10L Stirring Water Bath |
| SWB-RS232 | RS 232 cable for data logging |
| SWB-DLSW | Data Logging software package |
| SWB-DLSW-R | Data Logging software package, include a RS 232 cable |
