Elite Dry Bath Incubator, EL series  |PRODUCTS|Life Sciences Research|Mixer/Temperature Control|Dry Bath Incubator

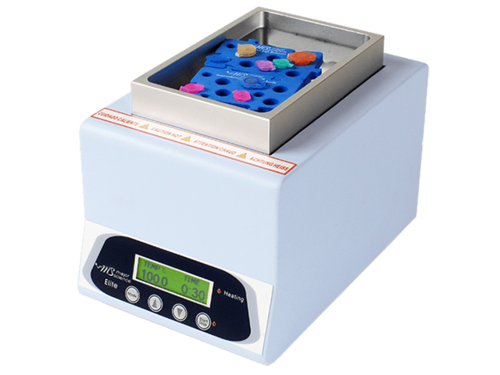

Elite Dry Bath Incubator, EL series


The Elite Dry Bath Incubator comes in single or dual block modes along with a comprehensive set of interchangeable blocks. It is designed for a variety of applications, including restriction digest, DNA denaturation, melting agar, coagulation studies, hybridization and hot start thermo-cycled reaction. Elite Dry Bath Incubator is recognized as the finest, fastest heating and smallest foot print dry bath incubator. In addition, the aluminum blocks can be removed for the use of a mini water bath or a bead bath. The temperature setpoint can be set in increments of 0.1°C from 5°C above ambient to 150°C. Optional PC control software allows the dry bath incubator to perform real time data recording through a PC.

MS06_Elite Dry Bath Incubator EL-01 / EL-02 * Marketing video

  • Digital microprocessor controller confers performance and precise control
  • Broad temperature control range & guaranteed uniformity

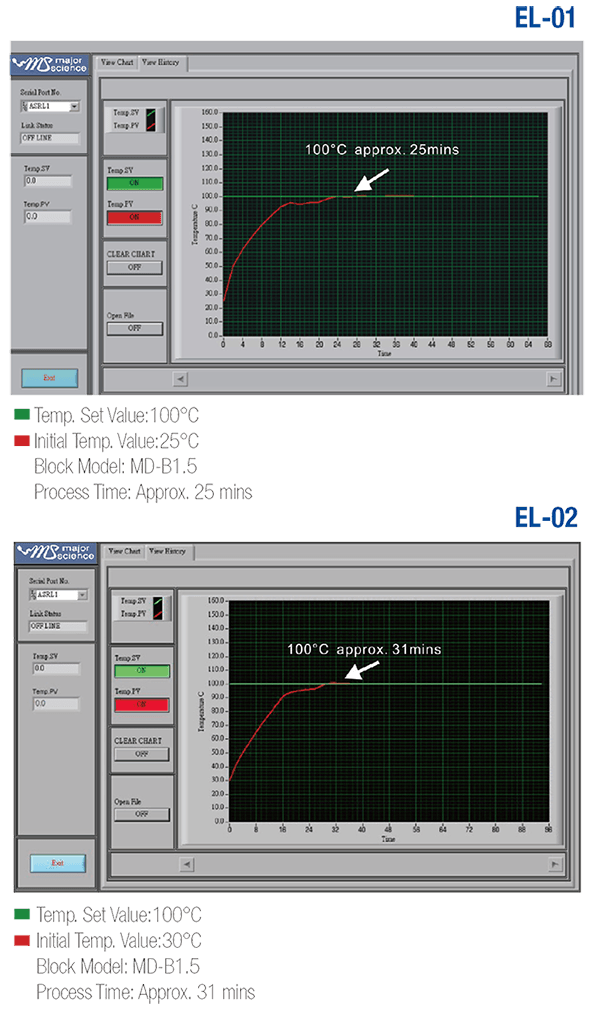

  • Excellent heating rate
  • Large LCD screen for instant observation
  • User temperature calibration

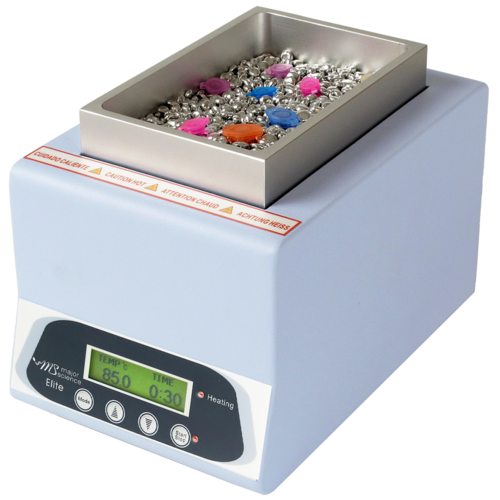

  • Can be used as a water bath or bead bath
  • Molded aluminum alloy chamber
  • Optional PC Control software available
Cat. No. EL-01 (Single Block) EL-02 (Dual Block)
Display LCD
Power 125W 200W
Dimension (WxLxH) 5.98"x5.91"x5.31"
Controller Digital microprocess controller
Heating chamber Molded Waterproof aluminum alloy coated with PTFE
Temperature control range 5°C above ambient to 150°C
Temperature increment 0.1°C
Temperature uniformity at 37°C ± 0.2°C
Temperature accuracy at 37°C ± 0.2°C
Timer 99 (hr): 59 (min) / Continuous
Safety Leak proof heating chamber
Over temperature protection
SSR failure detection
Operating temperature Ambient to 40°C
Block material Aluminum alloy
Block type Standard and customized type are available
PC Connection RS232
Rated voltage 110V / 220V
Weight Approx. 4.6lb (2.1kg) Approx. 6.1lb (2.8kg)
Block material Aluminum alloy
Dimension (WxLxH) 3.11"x4.09"x1.97" (79x104x50mm)
Block lifter well Yes
Thermometer well Yes (except microplate blocks)
Cat. No. Product Description
EL-01-110/220 Elite Dry Bath Incubator ( One block unit ); without block
EL-02-110/220 Elite Dry Bath Incubator ( Dual block unit ); without block
Cat. No. Product Description
MD-RS232 RS 232 cable
MD-PCSW Function control software package
MD-PCSW-R Function control software package; including a RS232 cable
  Cat. No. Product Description
Dry Bath Blocks MD-MP01-S For microplate; titer plate (Plain Block for Single Block unit only)
MD-MP01-D For microplate; titer plate (Dual Block unit only)
MD-MP02-S For 96 wells deep microplate or PCR plate ( for Single Block unit only)
MD-MP02-D For 96 wells deep microplate or PCR plate ( for Dual Block unit only)
MD-B0.2 For 0.2ml tube, 64 wells (or 0.2ml PCR strip tube for 8 wells x 8)
MD-B0.5 For 0.5ml tube, 20 wells
MD-B1.5 For 1.5ml or 2.0ml tube, 20 wells
MD-B1.5V For 1.5 V-shaped tube only, 20 wells
MD-B0.5+1.5 Combination: for 0.5ml tube, 12 wells; and for 1.5ml tube, 12 wells (on the same side)
MD-B0.5/1.5 One side for 1.5 or 2.0ml tube, 20 wells and another side for 0.5ml tube, 30 wells (on the opposite side)
MD-B13 Well size 13mm, 20 wells
MD-B17 For 15ml centrifuge tube, 12 wells
MD-B20 Well size 20mm, 12 wells
MD-B25 Well size 25mm, 6 wells
MD-B29 For 50ml centrifuge tube, 4 wells
MD-BD01 Single bead MD dry bath block, (WxLxH) 79 x104x76mm
MD-BD02 Dual bead MD dry bath block, (WxLxH) 104 x158x76mm
MS-BL95-E Block Lifter, 95mm length with E-type retaining rings
