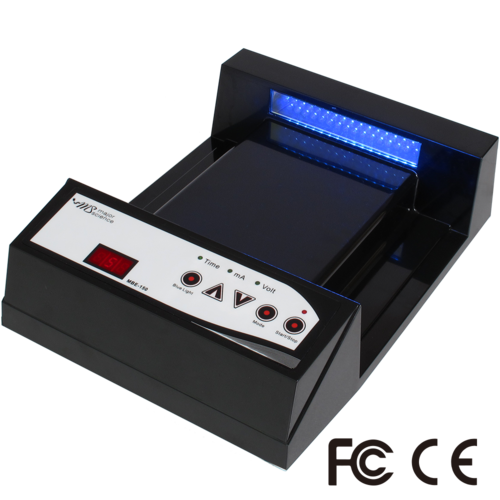

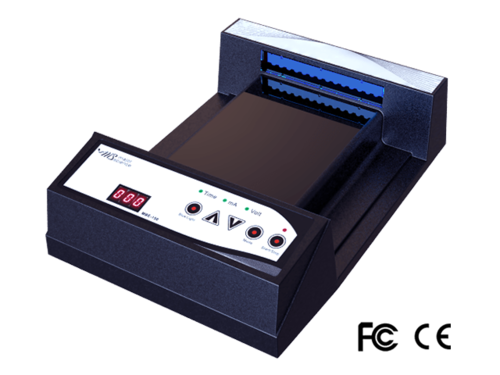

SafeBlue illuminator System, MBE-150
Product
The innovative SafeBlue Illuminator is a unit a which combines of a small power supply with a blue light illuminator. The system emits blue LED light which allows you to view your DNA/RNA bands without worrying about harmful UV damage samples. SafeBlue Illuminator could also be used as a simple blue light illuminator to cut your samples from gels.
MS05_SafeBlue Electrophoresis System MBE-150-PLUS * Marketing video
- Innovative - a complete 4-in-1 system (run, view, capture and cut gel) with simple and easy set up
- on the image capture/analysis software.
- Convenient - run as you see, real time visualization on your DNA/RNA band migration
- Compact - footprint smaller than most UV transilluminator, easy to move and ideal for limited bench top space
- Economical - an inexpensive imager system with digital camera. Multiple accessories are also available to increase experimental efficiency
- Safe - 470nm blue light less invasive than UV light
- Flexible - UV tray adaptors available, compatible with MJ-105A.
- Versatile - support gel trays 150x150mm or smaller
- Optimized performance - SYBR series DNA/RNA stains, Novel Juice and Midori Green series
- Simple - DNA/RNA recovery method
MBE-150 includes:
1 x SafeBlue Illuminator
1 x Power adaptor
1 x Power cord
* All images are for reference only, actual products might differ from the pictures above.
* Technical specifications subject to change without notice.
| Cat. No. | MBE-150 |
|---|---|
| Output Voltage / Inc. | 10-150V / 1V |
| Output Current / Inc. | 10-300mA / 1mA |
| Max. Power | 30W |
| Operating Mode | Constant Voltage or Current |
| Timer | 999 (min) with alarm / Continuous |
| Safety Device | No load detection |
| Crossover | Yes |
| Blue Light Wavelength | 470nm |
| Operating Temperature | Ambient to 40°C |
| Dimension (WxLxH) | Approx. 11.5"x7.9"x3.2" (293x200x80mm) |
| Weight | Approx. 2.4lb (1.1kg) |
| Material | Polycarbonate housing and aluminum base plate |
| Power Adaptor | Input: 100-240VAC, 50/60Hz, 1.4A |
| Output: 15VDC, 4.0A, 60W max. |
| Cat. No. | Product Description |
|---|---|
| MBE-150 | SafeBlue Illuminator |
| Cat. No. | Product Description |
|---|---|
| MBE-TANK | ME15 Tank for SafeBlue without Lid and Red/Black Cable |
| MBE-LID-Y1 | MBE-150 Lid,yellow |
| MBE-150-CABLE | Threaded Black and Red Electrophoresis Cable |
| MBE-TANK-01 | 120x155mm, shiny black protective film |
| MBE-150-02 | 165x140x19mm, Acrylics, cutting platform |
| MBE-150-3 | Base unit platform protective film |
| ME15-UV15-TH01 | ME15-UV15 Tray Holder, 2 cuts, cut size 109.5x60.5mm(For MJ-105 Trays) |
| ME15-UV15-TH02 | ME15-UV15 Tray Holder, 1 cuts, cut size 130.5x122.5mm |
| MBE-G-Y1 | Amber filter viewing glasses, 560nm |
* For more information of MBE-IMG-CA, please refer to SafeBlue Imager System.
Comparison table for various nucleic acid stain performance
| Nucleic Acid Stain | Performance | Experimental Protocol | ||
|---|---|---|---|---|
| Pre-staining | Post Staining | Sample Staining | ||
| SYBR® Green I (DNA) | Excellent | ✓ | ✓ | ✓ |
| SYBR® Green II (RNA) | Excellent | ✓ | ✓ | |
| SYBR® Gold | Excellent | ✓ | ✓ | |
| Midori Green Driect | Excellent | ✓ | ||
| Hydra Green™ Safe DNA Dye | Excellent | ✓ | ✓ | |
| HD Green™ DNA Stain | Excellent | ✓ | ✓ | |
| SafeView DNA Stain | Good | ✓ | ||
| SYBR® Safe | Good | ✓ | ✓ | |
| Midori Green | Good | ✓ | ✓ | |
| Midori Green Advanced | Good | ✓ | ✓ | |
| Serva DNA Stain Clear G | Good | ✓ | ✓ | |
| GelGreen ™ | Good | ✓ | ✓ | |
| GelRed ™ | NR | ✓ | ✓ | |
| Ethidium Bromide | NR | ✓ | ✓ | |
| HealthView ™ | NR | ✓ | ||
* NR= Not recommended *

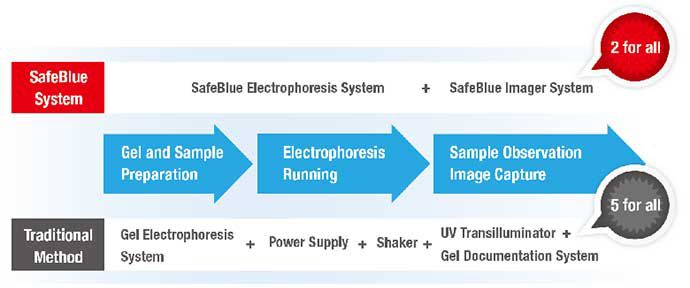

MBE-150-PLUS Innovative Electrophoresis System
1. Early detection of running error (run as you see)2. Prevention for breaking gel- no more gel transferring (no more gloves!!)
3. Time saving gel staining & de-staining
4. Compact in size
