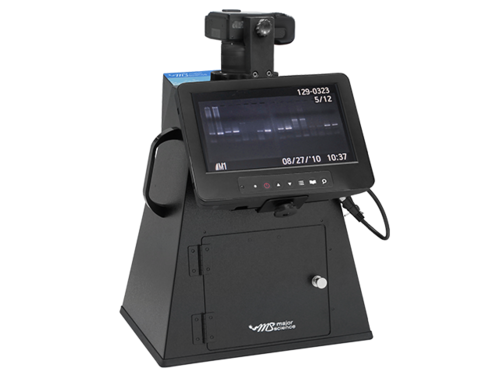

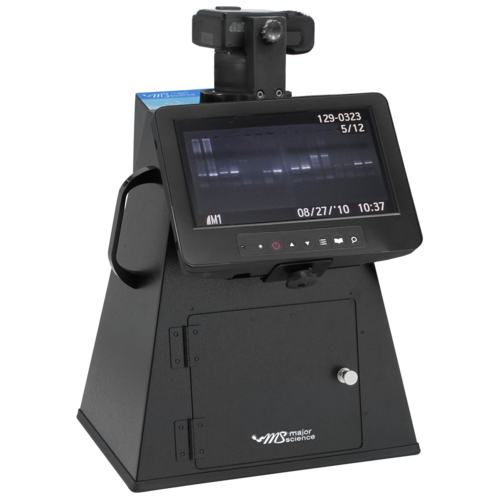

Digimage System, DI-01


The Digimage System is a simple, compact gel documentation system with a rear digital control panel. It contains the Canon EOS M200, a digital camera with a superb resolution of 24.1 megapixels. The image is viewed from a large 8” TFT colorful screen with monitor purpose only, for a lab with limited space and low budget requirements, this gel imaging system is definitely your top choice since it can be operated without a computer. A variety of images can be captured including agarose and other fluorescent gels, colorimetric gels, autoradiography film, and blotting membranes. A safety switch is equipped to turn off the UV Transilluminator automatically when the front door is opened. Files can be saved in a variety of formats, including RAW format, for transfer to a computer for storage and analysis.

MS04_SmartView Transilluminator / SmartView Simple Imager System MUVB MUV-IMG-CA* Marketing video

  • 24.1 megapixel digital camera
  • High resolution 8” TFT screen
  • Digital control panel
  • Compact chamber and lightweight
  • Can be operated PC free
  • Inner white light LED at two sides
  • Safety door switch
  • Optional gel analysis software package available
  • Universal rated voltage: 100-240V~

DI-01 is offered as a complete system for the user to perform image capture, including:

  • 1 x Digimage System hood
  • 1 x Digital camera
  • 1 x DC coupler
  • 1 x 8” color TFT screen
  • 1 x Memory card
  • 1 x Memory card reader

* PC is not included *

DI-01 Spec.
Multi-Power Source For camera, Inner light lamp, TFT monitor
Inner White Light 2 white LED, 3 watt/LED
Safety Device Safety door switch
Dimension (WxLxH) 11.4"x13.3"x15.9" (290x339x403mm)
Material Painted metal
Rated Voltage 110/220V~, 50/60Hz, 1.6A
Weight Approx. 12.9lb (5.8kg)
Camera Adapter Aluminum
DI Darkroom
Dimension (WxLxH) 11.4"x13.3"x15.7" (290x339x398mm)
Weight Approx. 11.9lb (5.4kg)
Camera Spec.
Camera Type 24.1MP digital camera, Wi-Fi function
Effective Pixels Approx. 24.1 megapixels (Total Pixels Approx. 25.8 megapixels)
Sensor 22.3 x 14.9mm CMOS sensor
Max. Aperture f/3.5-6.3 (IS STM Lens)
Shutter Speed 30 - 1/4000 sec (1/3 stop increments), Bulb (Total shutter speed range. Available range varies by shooting mode)
Storage Media SD memory card, Wi-Fi to PC, Smartphone or Tablet
Computer Interface Hi Speed USB (Micro), HDMI(Micro), WiFi connection
Video Out Full HD / HD / MP4 / 4K
Image Resolution (3:2)6000x4000
Lens 35mm film equivalent to 1.6x the focal length
File Format Designed rule for Camera File system 2.0
Data Type JPEG, RAW(CR3 14 bit)
RAW+JPEG, simultaneous recording possible
Filter (For Camera, Optional) EtBr filter / SYBR Green filter / Amber Filter
* Optional, ordered separately
Type 8" TFT LCD Monitor
Resolution 1024x600 pixels
Brightness 300cd / m2
Constant Ratio 700:1
Display Mode NTSC / PAL auto switch
Cat. No. Description
DI-01 Digimage System with 24.1 megapixels digital camera
DI-HD Digimage System without digital camera

Bundle Package

Cat. No. Description
MUV21-CP-01 Complete package of MUV21-312 Transilluminator and Digimage System (DI-01)
MUV26-CP-01 Complete package of MUV26-312 Transilluminator and Digimage System (DI-01)
MUVB-111-CP-01 Complete package of SmartView 111 Transilluminator and Digimage System (DI-01)
MUVB-114-CP-01 Complete package of SmartView 114 Transilluminator and Digimage System (DI-01)
Cat. No. Description
DI-DR-E12 DC coupler
DI-WLA3-110/220 White Light Table 297x400mm (110/220V)
DI-WLA4-110/220 White Light Table 210x297mm (110/220V)
DI-WLA6-110/220 White Light Table 105x150mm (110/220V)
Filter (for camera) *ordered separately
DI-EB49 EtBr filter, 49mm
DI-SG49 SYBR Green filter, 49mm
DI-AM49 Amber filter, 49mm
