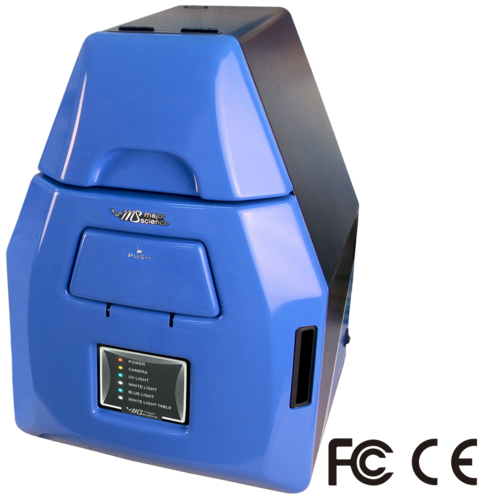

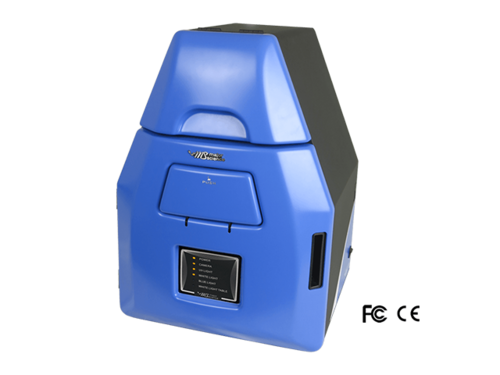

SmartView Pro 1100 Imager System, UVCI-1100

The SmartView Pro 1100 provides the basic feature and standard operation.


The SmartView Pro 1100 provides the basic feature and standard operation. All important features such as safety UV door, UV safety-cutoff switch function, 1D analysis software and are included as standard. 1D analysis software can be used for DNA/RNA gels and SDS page images observation and capture. Moreover, it can be used as an image analysis software for DNA/RNA gels and dot blotting. Blue light module, white light plate and optical and amber filters are available for a variety of applications. Enjoy the most compact CMOS imaging system for all of your laboratory work.

MS04_SmartView Pro Imager System UVCI-1100 Marketing video

• High resolution 5.0 megapixel monochrome camera (UVCI-1100)
• PC integration with real time image
• Capture/Analysis software included
• Pull out UV Transilluminator for easy gel cutting
• Easy installation, ready to use right out of the box
• One touch image capture
• Variety of optional accessories available
• UV safety cut-off switch when door is open
• CE and FCC certification
* All images are for reference only, actual products might differ from the pictures above.
* Technical specifications subject to change without notice.

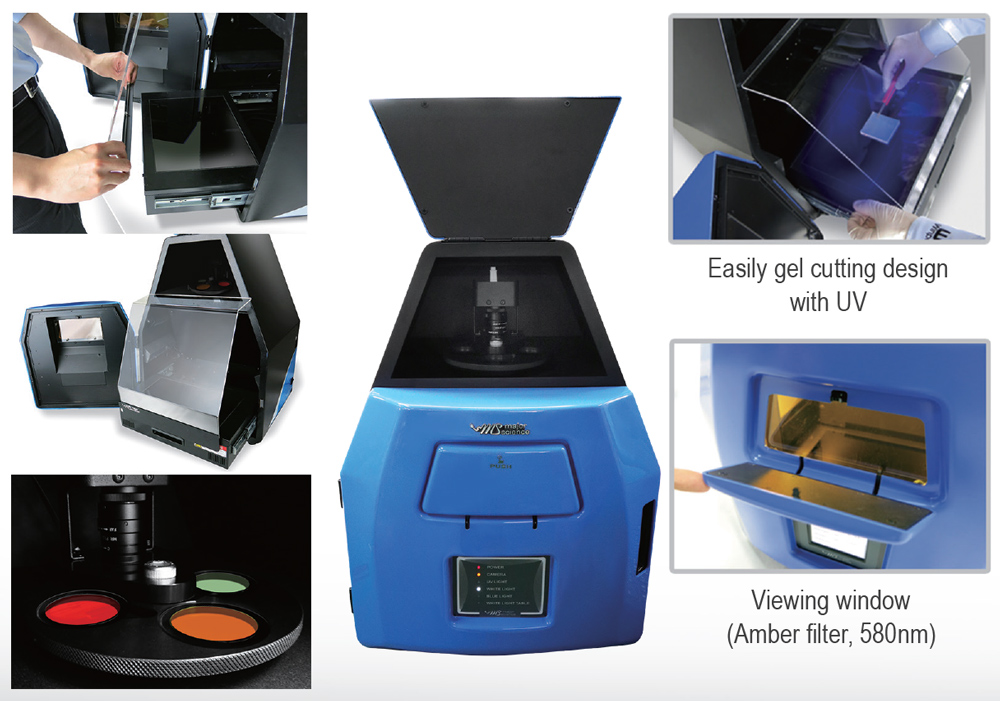

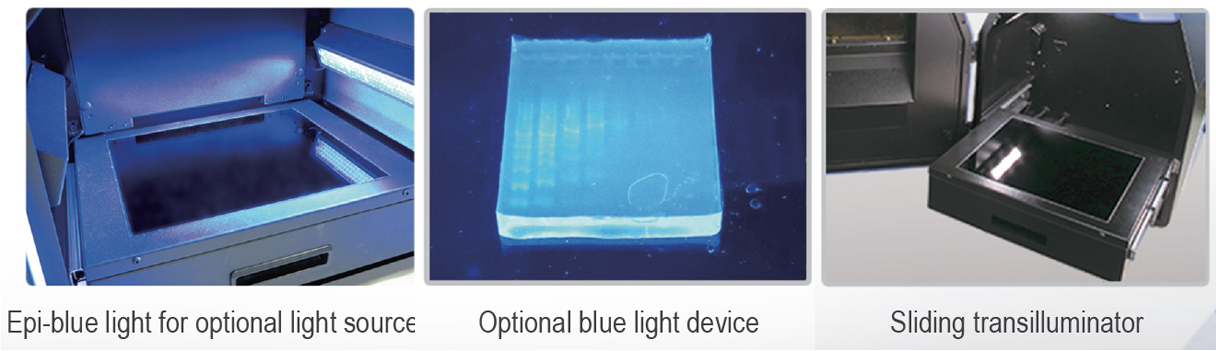

Sliding transilluminator Easy installed by magnetic design Easily gel cutting design with UV
Up to 4 filters 4-position filter wheel Optional Blue Light device
Model SmartView Pro 1100
Cat. No. UVCI-1100
UV Light Built-in drawer type UV Transilluminator 312(302)nm
Camera 1/2.5" 5M Pixel Monochrome sensor
Pixels Size 2.2μmx2.2μm
Lens (Camera) 6mm, F1.2
Camera Video Output 12-bit
Filter (Camera) *Ordered separately Optical EtBr Filter / Optical SYBR Green Filter / Yellow Amber Filter / Orange Amber Filter
Image Storage PC
Software Support Window 10 / 8 / 7 (64bit & 32bit) / XP / Vista
Cabinet Pull out, sliding transilluminator
Field Of View (WxL) Approx. 10.2"x8.3" (260x210mm)
Dimension (WxLxH) Approx. 16.1"x15.9"x22.4" (410x405x570mm)
Weight Approx. 54lbs. (24.5kg)
Display LED indicator light
Viewing Window Built-in UV viewing window
Window Filter Built-in Viewing Window Amber Filter 580nm
Light White light (standard)
Optional Accessory White Light Plate (power built-in)
Blue light (power built-in) 470nm
Safety CE, FCC
PC Connection USB port
1 D Analysis Software Cat. No. MBE-IMG-SW included
Saved Image BMP/JPEG/PNG/TIFF, 8 bit; PNG/TIFF, 16 bit
Rated Voltage 100-240V~, 50/60Hz, 2A

* iPad and PC is not included.
* MS 1D Analysis Software (MBE-IMG-SW) is included in UVCI-1100 for image capture and analysis .

Cat. No. Description
UVCI-1100 SmartView Pro 1100 Imager System, standard version
UVCI-1101 SmartView Pro 1100 Imager System, standard version, high UV performance

*Filters are necessary part for Gel Documentation System.
*All filters have to be ordered separately and discuss with local dealer before order.

Cat. No. Product Description
UVCI-1000-WL White Light Plate for SmartView Pro Imager System
UVCI-1000-BL Blue Light Module for SmartView Pro Imager System
UVCI-1100-EB SmartView EtBr Filter, 610nm (for UV)
UVCI-1100-SG SmartView SYBR Green Filter, 520nm (for UV)
UVCI-1100-F3 SmartView Amber Filter 560nm
UVCI-1100-F4 SmartView Amber Filter 580nm
UVCI-1000-F1 Viewing window Amber filter, 580nm for SmartView Pro Imager System
UVCI-1003 SmartView Pro UV Protection Shield
UVCI-1004 SmartView Pro Lens Filter Stand, can hold up to 4 lens filters
MBE-G-Y1 Amber Filter Viewing Glasses, 560 nm (optional)

Major Science Imager Capture/Analysis Software

The MS Imager anslysis software provides ease and convenience toward your gel analysis needs. Now you can quantify nucleic acid gels, protein gels, weatern blots, Coomassie/silver stains, or dot blots with simple and user-friendly interface. The Imager analysis software automatically guides you along the way step-by-step to offer fast and accurate quantitation. The Imager analysis software allows you to automatically calculate the density and molecular weight of the electrophoresis gels for a full analysis. Five easy and simple steps readily convert an image of any format into pixel density and area values.

  • Quantify lanes, segments, and dot blots
  • Analyze TIFF, JPG, BMP, GIF image formats
  • Density and molecular weight determination on electrophoresis gels and blots
  • Analyzed data exportable in excel format
  • Included as standard for UVCI-1100
  • Intervene or edit each step within workflow analysis


Operating System Windows 10 / 7 SP1/ Vista SP1/ XP SP3
Processor 1.8 GHz Pentium IV or equivalent AMD Athlon processor
Memory 1 GB
Storage 1 GB available HD space
Connectivity 1 USB 2.0 port
Display 1280 x 800 resolution
Media CD-ROM drive

1. Load image

2. Select gel type

3. Define region

4. Quantify

5. Analysis (Density)

6. Analysis (Molecular weight)
