Semi Dry Mini and Semi Dry Midi, MSD series

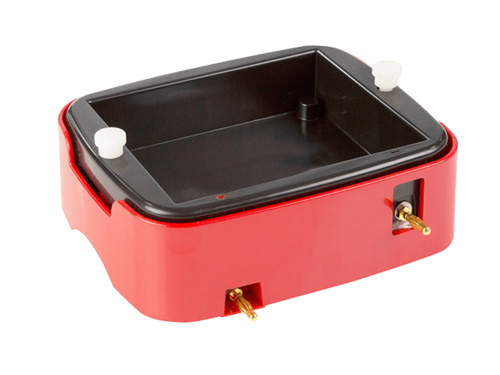

Semi Dry Mini offers rapid transfer times for DNA, RNA and protein blotting, typically 15 to 30 minutes. It can be used for all types of blotting, including Western, Southern and Northern blots. It features an uncomplicated buffer and set up procedure and is compatible with gel thickness from 0.25 up to 10mm. The unit is compatible with its respective vertical electrophoresis system. It only requires very low buffer volume, typically only a few milliliters of buffer per transfer. A screw down lid secures the blot sandwich and allows complete control of pressure ensuring even transfer. The electrodes, comprising of a platinum coated anode and stainless steel cathode, will exhibit practically no corrosion and provides many years of trouble free use. Uniform heat dispersion across the blot sandwich ensures stable transfer times and prevents heat induced sample loss or transfer distortions. It also allows viewing of the blot sandwich to ensure correct positioning and transfer is occurring correctly. Electrode plates are fully separated to prevent arcing or damage.

MS02_Electrophoresis* Marketing video

  • Low buffer consumption
  • Rapid transfer time
  • Western, Southern and Northern blots
  • Screw-down lid - Gels from 0.25 up to 10mm thick
  • Uniform heat dispersion
  • Long-life electrodes
Cat. No. MSD10 MSD20
Approx. 6.3"x6.3"x2.8"
Approx. 10.2"x10.2"x2.8"
Gel Dimension
Approx. 3.9"x3.9"
Approx. 7.9"x7.9"
Maximum Sample 1 Blot, 80x85mm 1 Blot,160x175mm
2 Blots,160x85mm
4 Blots, 80x85mm
Buffer Volume 5ml 20ml
Accomodate Gel Thickness 0.25-10mm
Economic Transfer Yes
Construction Durable, leak proof environment for complete safety and long life
Cat. No. Product Description
MSD10 Semi Dry Mini, 100x100mm System
MSD20 Semi Dry Midi, 200x200mm System
