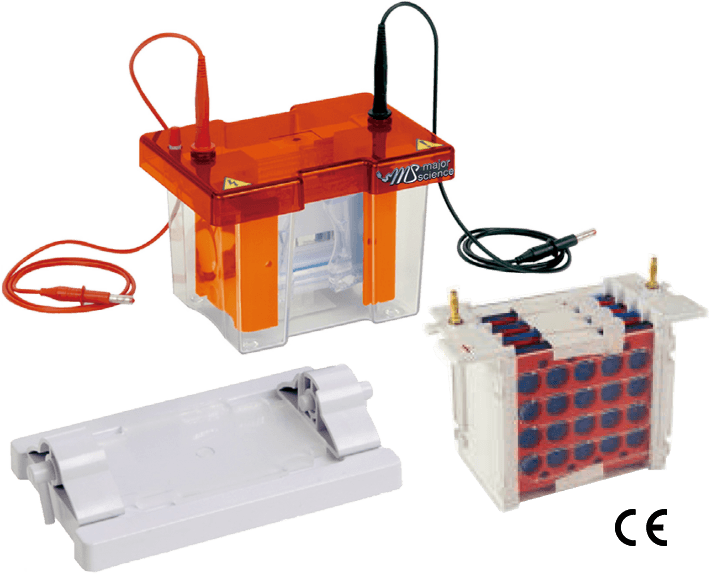

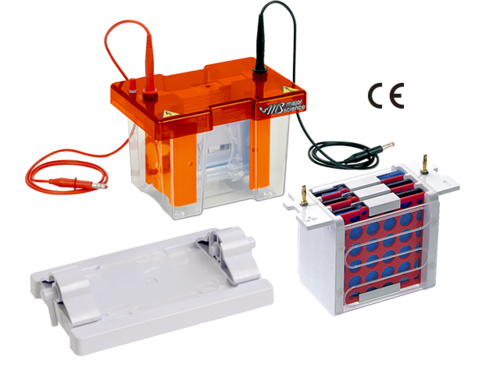

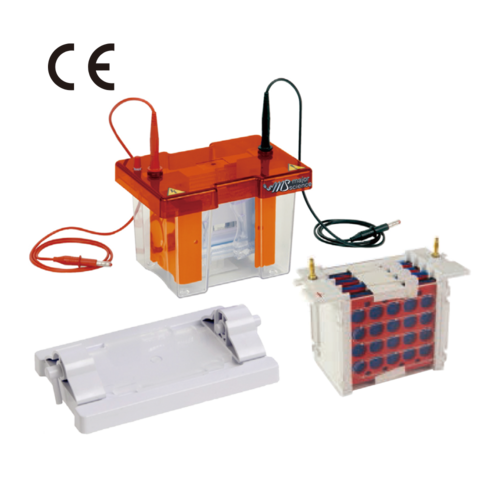

Complete Mini Electro Blot System, MV-10CBS
MV-10CBS include both modules for gel electrophoresis, electroblotting and accessories, to provide a complete Mini gel casting, running and electroblotting system.
Product
The Complete Electrophoresis Systems include both modules for gel electrophoresis, electroblotting and accessories, to provide a complete Mini gel casting, running and electroblotting system. The electroblotting module includes four inter-locking cassettes and sixteen fiber pads. A high intensity current is generated by coiled platinum electrodes. These features, in conjunction with the advanced cooling system allow for rapid electroblotting in as little as one hour.
 |
 |
| 1.Cassette Ends 2.Gel 3.Membrane 4.Blue Foam Pads & Papers |
Double hinged cassettes for added convenience |
MS02_Electrophoresis* Marketing video
- Versatile: Interchangeable modules for slab gel and Electroblotting using a single universal buffer tank
- Hinged cassettes
- High intensity electrodes
- blot capacity
- Rapid set-up cooling
* All images are for reference only, actual products might differ from the pictures above.
* Technical specifications subject to change without notice.
| MV-10CBS | Complete system for Mini Vertical Electrophoresis & Blotting, comprising: |
| 1x Mini Vertical unit, including: | |
| 2x2mm thick notched glass plates | |
| 2x2mm thick plain plates with 1mm thick bounded spacers, 1 x dummy plate | |
| 2 x combs(1mm thick,12 samples), 1 x casting base, silicone mat, cooling pack | |
| 1 x Electroblotting module, including: | |
| 1 x Internal electroblotting module | |
| 4 x Compression cassette for gel size up to 100x100mm, 16 x fiber pads |
| Cat. No. | Product Description |
|---|---|
| MSB10C | Blot Mini cassette |
| MSB10F | Fiber pads for Blot Mini - pack of 6 |
| MV10BI | Blot Mini Insert - including 4 cassettes and 16 fibre pads |
