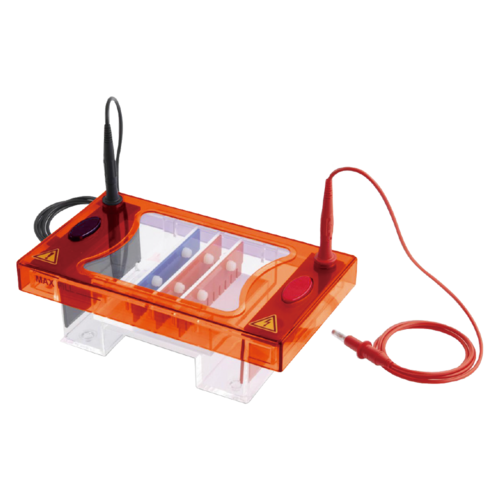

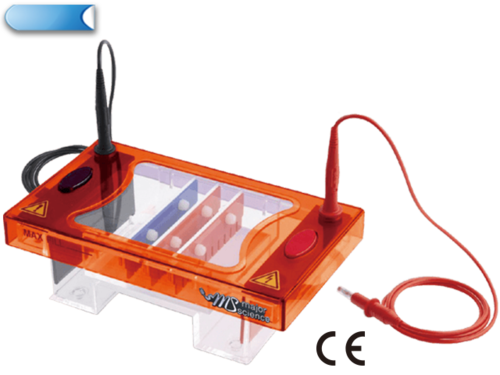

Midi plus-1 Horizontal Electrophoresis System, ME10-7-10


Our Midi series have been designed for routine horizontal gel electrophoresis with wide degrees of versatility. All of our gel tanks are made from injection molded construction for durable and leak proof environment. Varieties of special combs are available to maximize your sample size.

Midi plus-1 includes 10x7cm and 10x10cm gel tray to allow 100 samples per gel to be resolved. Ideal for those routinely check medium numbers of samples over short to medium gel run lengths.

MS02_Electrophoresis* Marketing video

  • Low buffer consumption
  • Single molded tank
  • Two tray options available(ME7-7-10, ME10-7-10)
  • Easy sample loading
  • Multi-channel pipette compatibility
  • Great indications for gel making and running
  • No tape, clamps or springs needed

ME10-7-10 is offered as a complete system for the user to cast, and run electrophoresis, including:

  • 1 x Electrophoresis tank & lid
  • 1 x ME10-UV7 (10x7cm UV tray)
  • 1 x ME10-UV10 (10x10cm UV tray)
  • 2 x ME10-16-1 (16 sample combs, 1mm thick)
  • 1 x ME10-UVDAM (UV tray dams, 2pcs)
  • 1 x ME10-LG (Loading guides (Set))
  • 1 x Black & red electrophoresis cable
Cat. No. ME10-7-10
8.7"x4.9"x3.5" (220x125x90mm)
Gel Dimension
3.9"x2.8" (100x70mm)
3.9"x3.9" (100x100mm)
Maximum Sample 50 for 3.9"x2.8" (100x70mm) Tray(2x25 sample combs)
100 for 3.9"x3.9" (100x100mm) Tray(4x25 sample combs)
Buffer Volume 0.32gal (1200ml)
Construction Injection molded construction
Durable, leak proof environment for complete safety and long life
Cassette Type Electrode Inexpensive, easy to replace
Made of 99.99% corrosion resistant pure platinum
Electrical Safety Lid can only be fastened in one way
Upon lid removal, power is disconnected from buffer chamber
Rapid Casting Gel Use flexible caster
Cat. No. Product Description
ME10-7-10 Midi plus-1, 100x70mm & 100x100mm UV tray, 2x16 sample 1mm thick combs, loading guides and dams
ME10-UV7 Midi plus-1, 100x70mm UV tray
ME10-UV10 Midi plus-1, 100x100mm UV tray
ME10-UVS 100mm UV gel scoop
ME10-UVDAM Midi plus-1, UV tray dams ( 2 pcs )
ME10-LG Loading Guides for Midi Plus-1
ME10LID Midi plus-1 lid (No cables)
ME10TANK Midi plus-1 Tank (including electrodes)
ME10-BSB Midi plus-1 buffer saving block, save up to 100ml, 2/pk
ME7/10-FC Midi plus/Midi plus-1, Flexicaster
Cat. No Comb Description Sample Volume
ME10-1-0.75 Prep 1, Marker 1, 0.75mm thick 270ul
ME10-2-0.75 Prep 2, Marker 2, 0.75mm thick 118ul
ME10-4-0.75 Prep 4, Marker 2, 0.75mm thick 57ul
ME10-8-0.75 8 sample, 0.75mm thick 30ul
ME10-10MC-0.75 10 sample MC, 0.75mm thick 20ul
ME10-12-0.75 12 sample, 0.75mm thick 17ul
ME10-16-0.75 16 sample, 0.75mm thick 12ul
ME10-20MC-0.75 20 sample MC, 0.75mm thick 10ul
ME10-25-0.75 25 sample, 0.75mm thick 7ul
Cat. No Comb Description Sample Volume
ME10-1-1 Prep 1, Marker 1, 1mm thick 360ul
ME10-2-1 Prep 2, Marker 2, 1mm thick 158ul
ME10-4-1 Prep 4, Marker 2, 1mm thick 77ul
ME10-8-1 8 sample, 1mm thick 41ul
ME10-10MC-1 10 sample MC, 1mm thick 27ul
ME10-12-1 12 sample, 1mm thick 23ul
ME10-16-1 16 sample, 1mm thick 16ul
ME10-20MC-1 20 sample MC, 1mm thick 14ul
ME10-25-1 25 sample, 1mm thick 10ul
Cat. No Comb Description Sample Volume
ME10-1-1.5 Prep 1, Marker 1, 1.5mm thick 540ul
ME10-2-1.5 Prep 2, Marker 2, 1.5mm thick 236ul
ME10-4-1.5 Prep 4, Marker 2, 1.5mm thick 115ul
ME10-8-1.5 8 sample, 1.5mm thick 61ul
ME10-10MC-1.5 10 sample MC, 1.5mm thick 41ul
ME10-12-1.5 12 sample, 1.5mm thick 34ul
ME10-16-1.5 16 sample, 1.5mm thick 24ul
ME10-20MC-1.5 20 sample MC, 1.5mm thick 20ul
ME10-25-1.5 25 sample, 1.5mm thick 15ul
Cat. No Comb Description Sample Volume
ME10-1-2 Prep 1, Marker 1, 2mm thick 720ul
ME10-2-2 Prep 2, Marker 2, 2mm thick 315ul
ME10-4-2 Prep 4, Marker 2, 2mm thick 153ul
ME10-8-2 10 sample, 2mm thick 81ul
ME10-10MC-2 16 sample, 2mm thick 54ul
ME10-12-2 20 sample MC, 2mm thick 45ul
ME10-16-2 25 sample, 2mm thick 32ul
ME10-20MC-2 30 sample, 2mm thick 27ul
ME10-25-2 36 sample, 2mm thick 20ul

* Sample volume (SV) = sample volume per well, for 5 mm thick gel (ul)
