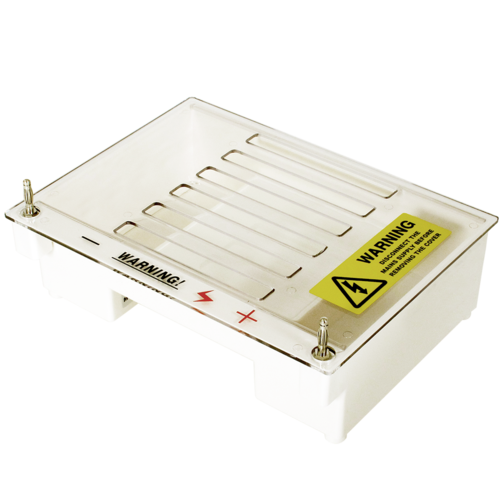

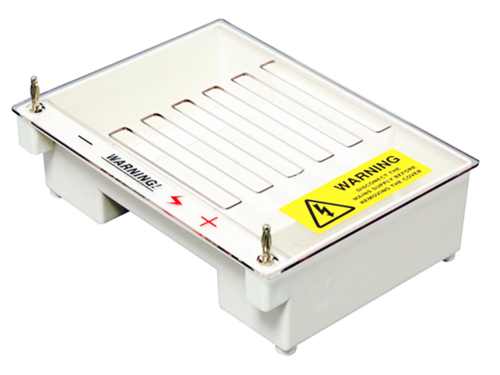

Mini Horizontal Gel Electrophoresis System, MT-108


MT-108 horizontal electrophoresis units offer many advantages for nucleic acid separation. Agarose gels are easy to cast and samples are easy to load. MT-108's longer tray allows the running of bigger fragments to attain higher resolution. Its molded design prevents cracks or leakages, and its sturdy PC provides a temperature capacity of up to 130oC. A safety interlocking cover is designed to prevent electrical hazards during electrophoresis runs. It is ideal for many applications, including Northern and Southern blotting, Cosmid library restriction analysis, STS screening, Microsatellite analysis, PCR fragment analysis, RFLP analysis, DNA fingerprinting and high-throughput analysis.

MS02_Electrophoresis* Marketing video

  • Less agarose consumption
  • Less running buffer consumption
  • Multichannel pipette-compatible
  • Single molded tank
  • Safety & Ventilation lid
  • High temperature capability, 130oC
  • Easy sample loading
  • Great indications for gel making and running
  • No tapes, clamps or springs needed for gel casting
  • No direct heat impact from power supply unit
  • Two tray options available
  • Cast 3 pcs of agarose gel in one time

MT-108 is offered as a complete system for the user to cast, and run electrophoresis. including:

  • 1 x Snow tank and transparent lid
  • 1 x MT-G01 (Gel Maker Stand)
  • 1 x MT-T01 (105x83mm Tray)
  • 2 x MT-T02 (50x83mm Tray)
  • 1 x MJ-C01 (Double side comb: 8 teeth x 2 & 17 teeth; 12 teeth x 2 & 25 teeth)
  • 1 x MT-C03 (Multiple pipette compatible 23 teeth, Prep 1 & Marker 2, Prep 2 & Marker 2; 6 teeth x 2 for mini gel & 12 teeth for midi gel)
  • 1 x Black & red electrophoresis cable
Cat. No. MT-108
Appearance Snow tank & transparent lid
Material PC (Polycarbonate)
Lid Material AS (Acrylonitrile-Styrene Copolymer)
Temperature Capacity 130°
Transparent Lid Safety ventilation design
Gel Dimension (WxL) 4.1"x3.3" (105x83mm)
2"x3.3" (50x83mm)
Tray Black well-visualization strip
Migration distance index line
Agarose level, 0.2" (5mm)
Rapid Casting Gel Use gel maker stand
Maximum Gel Thickness 0.39" (10mm)
Maximum Sample 25 samples
Buffer Volume 0.11gal (400ml)
Operating Temperature 4 - 40°
Dimension (WxLxH) 5.4"x7.4"x2.3" (136x188x58mm)
Weight Approx. 1.5lb (0.7kg)
Cat. No. Product Description
MT-108 Wide Mini Horizontal Electrophoresis System
Single Electrophoresis Packages
MT-100P Package of MT-108 and MP-100

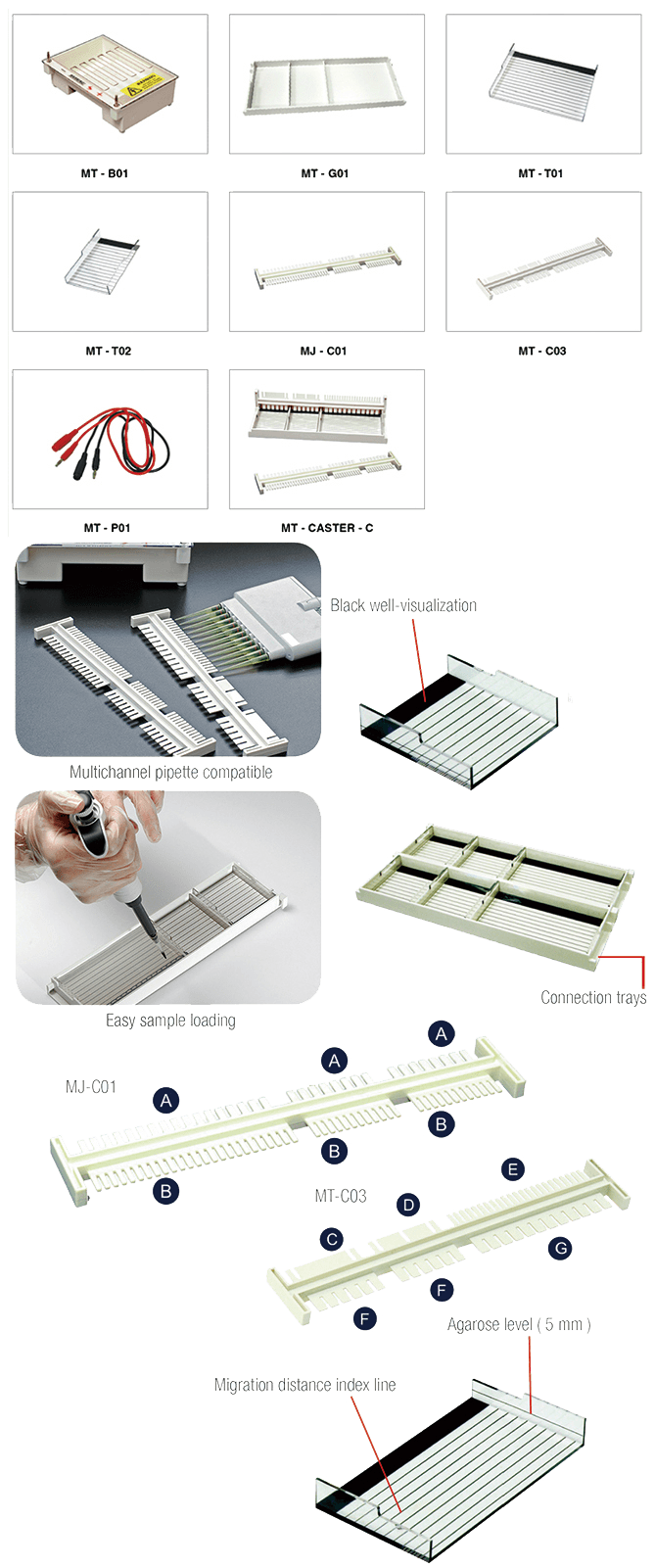

MT-108 Accessories
MT-B01 Wide Mini Tank and lid, without accessories
MT-G01 Gel maker stand
MT-T01 105x83mm Tray
MT-T02 50x83mm Tray
MJ-C01 Analytical Comb (8 teeth x 2 for mini gel & 17 teeth for midi gel (thick: 1.0mm), 12 teeth x 2 for midi gel & 25 teeth for midi gel (thick: 1.5mm))
MT-C03 Analytical Comb 1.0mm-thick (multiple pipetee compatible 23 teeth, Prep 1 & Maker 2, Prep 2 & Maker 2 on one side;
6 teeth x 2 for mini gel & 12 teeth for midi gel on the other side)
MT-P01 Electrophoresis Cable (black and red) for MT-108 only
MT-CASTER-C 1 x MT-G01; 1 x MT-T01; 2 x MT-T02; 1 x MJ-C01 and 1 x MT-C03
  Cat. No. Tooth Thickness Tooth Width Sample Volume for a 5mm thick gel (ul )
A MJ-C01 1.0mm 4.0mm 20
B MJ-C01 1.5mm 2.8mm 21
C MT-C03 1.0mm 36.0mm 180
D MT-C03 1.0mm 17.0mm 85
E MT-C03 1.0mm 3.0mm 15
F MT-C03 1.0mm 6.0mm 30
G MT-C03 1.0mm 6.5mm 32.5
