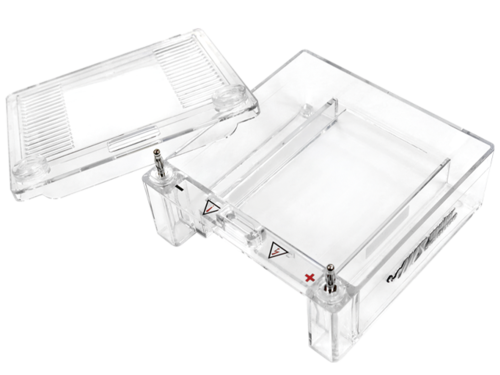

Mini Horizontal Gel Electrophoresis System, MJ-105A


The MJ-105A horizontal electrophoresis system offers many advantages for nucleic acid separation.

Agarose gels are convenient to cast and samples are easy to load with this recognizable mini horizontal cell. Its molded design prevents cracks and leakages and the sturdy PC provides a 130°C temperature capacity. The safety interlock cover is designed to prevent electrical hazards during electrophoresis. It is ideal for several applications, including Northern and Southern blotting, Cosmid library restriction analysis, STS screening, microsatellite analysis, PCR fragment analysis, RFLP analysis, DNA finger-printing and high throughput analysis.

Mini Horizontal Gel Electrophoresis System, MJ-105A

  • Less agarose consumption
  • Less running buffer consumption
  • Multichannel pipette-compatible
  • Single molded tank
  • Safety & Ventilation lid
  • High-temperature capability, 130°
  • Easy sample loading
  • Great indications for gel making and running
  • No tapes, clamps or springs needed for gel casting
  • No direct heat impact from power supply unit
  • Transparent tank and lid
  • Real-time observation with MBE-300
  • Contains 2 sets of gel maker stand
  • Cast 6 pcs of agarose gel in one time

MJ-105A is offered as a complete system for the user to cast, and run electrophoresis. including:

  • 1 x Transparent tank and transparent lid
  • 2 x MJ-G01 (Gel Maker Stand)
  • 2 x MJ-T02 (107x60mm Tray)
  • 4 x MJ-T01 (52x60mm Tray)
  • 1 x MJ-C01 (Double side comb: 8 teeth x 2 & 17 teeth; 12 teeth x 2 & 25 teeth)
  • 1 x MT-C03 (Multiple pipette compatible 23 teeth, Prep 1 & Marker 2, Prep 2 & Marker 2; 6 teeth x 2 for mini gel & 12 teeth for midi gel)
  • 1 x Black & red electrophoresis cable
Cat. No MJ-105A
Appearance Transparent tank & transparent lid
Material PC (Polycarbonate)
Lid Material PC (Polycarbonate)
Temperature Capacity 130°
Transparent Lid Safety ventilation design
Gel Dimension (WxL) 4.2"x2.4" (107x60mm)
2.1"x2.4" (52x60mm)
Tray Black well-visualization strip
Migration distance index line
Agarose level, 0.2" (5mm)
Rapid Casting Gel Use gel maker stand
Maximum Gel Thickness 0.39" (10mm)
Maximum Sample 25 samples
Buffer Volume 0.05gal (200ml)
Operating Temperature 4 - 40°
Dimension (WxLxH) 5.8"x5.7"x2.3" (148.3x145.8x59.1mm)
Weight Approx. 1.1lb (0.5kg)
Cat. No. Product Description
MJ-105A Transparent Mini Horizontal Electrophoresis System

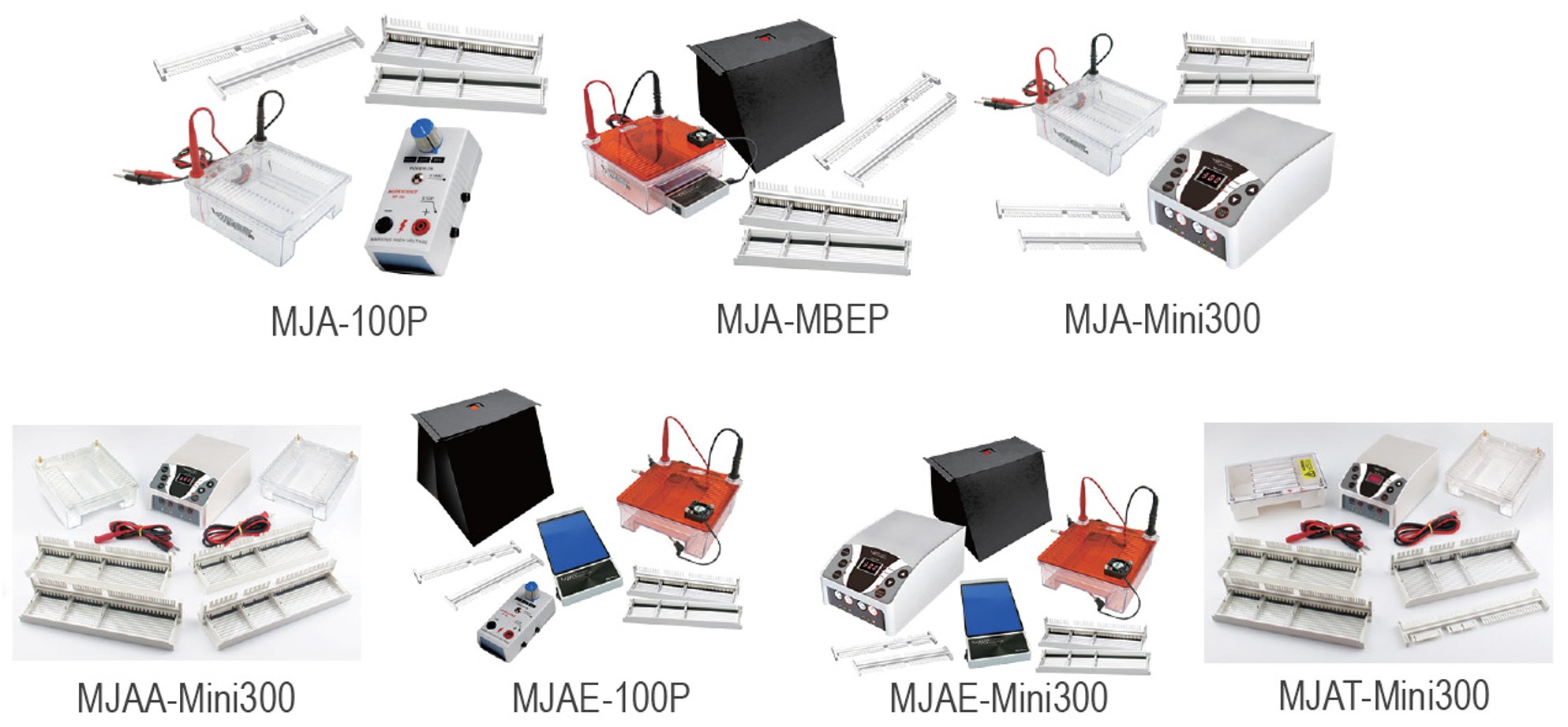

Single Electrophoresis Packages
MJA-100P Package of MJ-105A and MP-100
MJAE-100P Package of MJ-105A, MP-100, and MBE-300; amber filter lid with fan,synthetic paper hood are included
MJA-MBEP Package of MJ-105A and MBE-300; amber filter lid with fan, synthetic paper hood are included
Cat. No. Description
MJ-B01-A Transparent tank and lid, without accessories
MJ-LID-AM580 580nm amber filter lid with fan, suitable for MJ-105A
MBE-LID-AM580 An inclined 580nm amber filter, suitable for MBE-200 and MBE-300
MJ-G01 Gel maker stand
MJ-T01 2.05"x2.36" (52x60mm) Tray
MJ-T02 4.21"x2.36" (107x60mm) Tray
Analytical comb
MJ-C01 8 teeth x 2 for mini gel & 17 teeth for midi gel (thickness: 1.0mm),
12 teeth x 2 for mini gel & 25 teeth for midi gel (thickness: 1.5mm)
MT-C03 Analytical comb 1.0mm-thick (multiple pipetee compatible 23 teeth, Prep 1 & Maker 2, Prep 2 & Maker 2 on one side; 6 teeth x 2 for mini gel & 12 teeth for midi gel on the other side)
MBE-150-CABLE Red and black cable for SafeBlue electrophoresis tank
MJ-CASTER-C 2 x MJ-G01; 4 x MJ-T01; 2 x MJ-T02; 1 x MJ-C01 and 1 x MT-C03
MBE-HOOD Synthetic paper hood
  Cat. No. Tooth Thickness Tooth Width Sample Volume for a 5mm thick gel (ul)
A MJ-C01 1.0mm 4.0mm 20
B MJ-C01 1.5mm 2.8mm 21
C MT-C03 1.0mm 36.0mm 180
D MT-C03 1.0mm 17.0mm 85
E MT-C03 1.0mm 3.0mm 15
F MT-C03 1.0mm 6.0mm 30
G MT-C03 1.0mm 6.5mm 32.5
