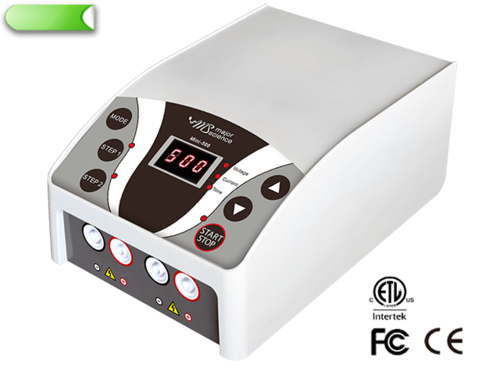

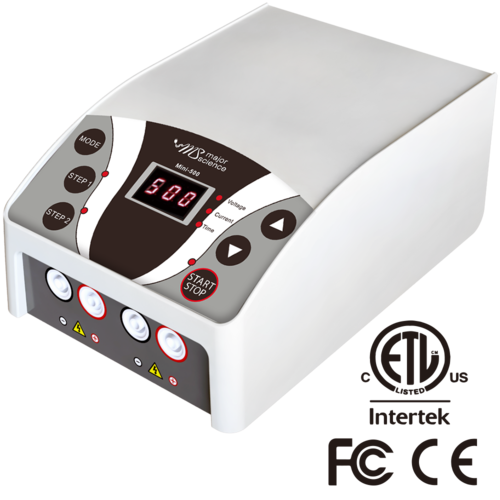

Mini Pro 500V Power Supply, MINI-500


Featuring in small size and versatility, the newly designed Mini Pro 500V gel electrophoresis apparatus is an ideal choice for researchers. Capable of providing constant voltage or current in 1V or 1mA increment, the unit is perfectly suitable to run both vertical polyacrylamide or horizontal agarose gel electrophoresis experiments. Continuous or timed operation can be easily set up with the simple and user-friendly interface. Moreover, the upgraded 2-step programmable function is more practical for protein electrophoresis. Mini Pro 500V is featured with 2 electrode pairs, allowing 2 gels to be run simultaneously, saving both time and valuable bench space. With a universal voltage rating, Mini Pro 500V is also designed and constructed to the most rigorous safety standards.

MS01_Mini Pro Power Supply * Marketing video

  • Constant voltage or constant current operation
  • 1V increment voltage control; 1mA increment current control
  • Max 500V, 400mA and 120W for Mini Pro 500V
  • Two pairs of outlet terminals
  • Timer with alarm function
  • Safety device
  • Compact size and lightweight
  • Competitive pricing choice
  • 2-step programmable control
Cat. No. MINI-500
Output Voltage / Inc Step1: 10 - 500V / 1V
Step2: 10 - 500V / 1V
Output Current / Inc Step1: 1 - 400mA / 1mA
Step2: 1 - 400mA / 1mA
Max. Watt 120W
Output Type Constant voltage or constant current
Control Microprocessor controller
Terminal Pairs 2 pairs
Timer 999 (min) with alarm/ Continuous (set=0)
Safety Device No load detection; shrouded plugs and sockets
Operation Temperature 4℃-40℃
Dimension 140 x 191 x 84mm (W x L x H)
Material Polycarbonate housing and aluminum base plates
Weight Approx. 1 kg
Rated Voltage 100 - 240 V~, 50-60Hz, 2.5A
Program 2-STEP Program
Presetting value STEP1 (V: 500 V; A: 16 mA; T: 30 min)
STEP2 (V: 500 V; A: 24 mA; T: 240 min)
*If voltage or current is set 0 in step 2, system will not proceed to step 2.
*if time is set 0, system will keep running until user manually stops.
Certification ETL, CE, FCC
Cat. No. Description
MINI-500 Mini Pro 500V Power Supply
