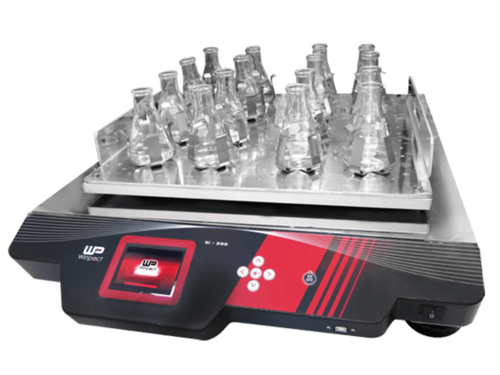

Winpact Shaker, WS-200 series
WS-200 shaker is developed to offer an integrated solution for every mixing requirement
Product
The WS-200 shaker is developed to offer an integrated solution for every mixing requirement. With a large 18.1"X18.1" platform and a wide selection of labware holders, this versatile machine can accommodate five 2L flasks or any combination of labwares up to 30kg. This powerful machine is equipped with a maintenance-free brushless motor that permits the device to operate noiselessly even at 500rpm under programmable mode of operation or continuous mode up to 999hr.
Shaking Incubators SI-200 / WS-200
- Various speed settings from 20-500rpm
- Equipped with a robust brushless DC motor for economical and noiseless operation
- Two modes of operation available: programmable or continuous
- Versatile accessories available for advanced culturing solutions
- Auto detection and power shutdown to platform weight imbalance or belt breakage
* All images are for reference only, actual products might differ from the pictures above.
* Technical specifications subject to change without notice.
| Cat. No. | WS-200 | WS-201 |
|---|---|---|
| Description | Winpact Orbital Shaker (universal platform included) |
Winpact Orbital Anti-moistured Shaker (universal platform included) |
| Platform size | Approx. 18.1” x 18.1” (460x460 mm) | |
| Shaking orbit | Approx. 0.7” (19 mm) | |
| Speed range | 20-500 rpm | |
| Speed increment | 1 rpm | |
| Timer | 999 (hr): 59 (min) / Continuous | |
| Display | 3.5" Color TFT LCD screen | |
| Dimension (WxLxH) | Approx. 20.5"x24.4"x8.3" (520x620x210mm) | |
| Rated Voltage | 100-240V~ , 50 / 60Hz, 2A | |
| Loading Capacity * | Approx. 500rpm: 11" (5kg), 250rpm: 66.1" (30kg) | |
| Anti-moistured | N/A | Yes |
| Weight | Approx. 88.2lb (40kg) | |
| Certification | CE | |
| Cat. No. | Product Description |
|---|---|
| WS-200 | Winpact Orbital Shaker with universal platform included |
| WS-201 | Winpact Orbital Anti-moisture Shaker with universal platform included |
Racks and Tray
| Cat. No. | Product Description | Max. platform capacity |
|---|---|---|
| SI-200-01 | Universal platform | 1 |
| SI-200-02 | Adjustable angle tube rack ( 33 x 15 ml ) | 4 |
| SI-200-03 | Adjustable angle tube rack ( 16 x 50 ml ) | 4 |
| SI-200-04 | Universal spring rack | 2 |
| SI-200-05 | Sticky pad platform | 1 |
| SI-200-06 | Universal cushioned crossbar platform | 1 |
| PPL-04-SI-SI-200-3 | Sticky pad 20x20 cm | 4 |
Microplate and flask holder
| Cat. No. | Product Description | Max. platform capacity |
|---|---|---|
| SI-200-07 | Microplate holder | 9 |
| SI-200-08 | Flask holder, 50 ml | 52 |
| SI-200-09 | Flask holder, 125 ml | 25 |
| SI-200-10 | Flask holder, 250 ml | 25 |
| SI-200-11 | Flask holder, 500 ml | 16 |
| SI-200-12 | Flask holder, 1000 ml | 9 |
| SI-200-13 | Flask holder, 2000 ml | 5 |
 |
Universal platform Cat. No.: SI-200-01 |
 |
Sticky Pad platform Cat. No.: SI-200-05 |
 |
Adjustable angle Tube Rack ( 33 x 15ml ) Cat. No.: SI-200-02 *tube not included |
 |
Universal cushioned crossbar platform Cat. No.: SI-200-06 |
 |
Adjustable angle Tube Rack ( 16 x 50ml ) Cat. No.: SI-200-03 |
 |
Microplate holders Cat. No.: SI-200-07 (Plataforma no incluída) |
 |
Universal Spring Rack Cat. No.: SI-200-04 |
 |
Flask holder Cat. No.: SI-200-08~13 |
