Photobioreactor Lighting Module, FS-O-PB  |PRODUCTS|Bioprocessing Technology|Optional Devices & Accessories

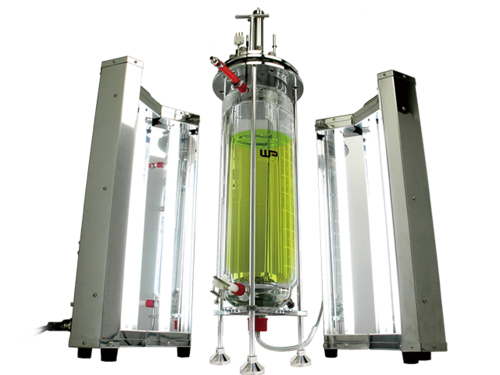

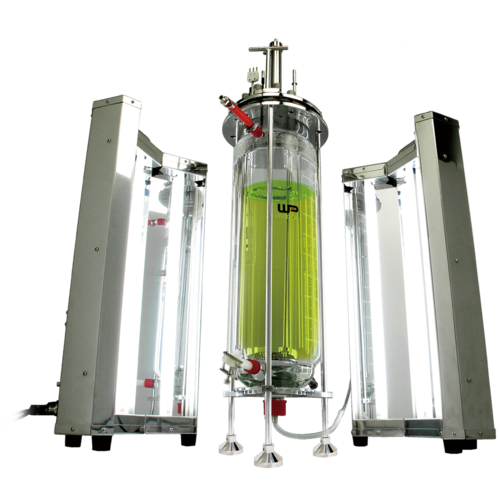

Photobioreactor Lighting Module, FS-O-PB


Winpact offers the exclusive lighting module for our Winpact systems. Our special designed lighting module is suitable for running any photon-related lab experiments such as photosynthesis reaction. This lighting module is constructed with sleek stainless steel for better appearance and reflection when light shines through the vessel. Winpact software consists of 15 steps program, light intensity adjustment, and self-calibration mode.

00-Winpact_Accessories mkt video * Marketing video

  • Utilize artificial light to simulate bio-photosynthesis reaction
  • Adjustable light intensity manually or automatically
  • Fluorescent light source
  • On-Off timer
  • Expandable up to 3 lighting modules
  • 15 steps programmable lighting schedule
  • Ideal for plant algae, or cyanobacteria experiments
Light module 3 Fluorescent lamps / each module
Lamp specification T5/14W, Ø16 mm x L549 mm
Light color temperature 6500 K
Luminous flux per lamp 1150 lm
Sensor type Light intensity sensor, photodiode
Light intensity Max. 10000 lux
Control mode On/off and timed control
Expandable modules Up to 3 sets of the lighting modules
Dimension (W x L x H) 200 x 326 x 648 mm
Weight Approx. 7 Kg / each module
Rated voltage 110/220V~(selectable), 50/60Hz, 5A
Cat. No. Product Description
FS-O-PB-1 1 Photo-Bioreactor Lighting Module
FS-O-PB-2 2 Photo-Bioreactor Lighting Module
FS-O-PB-3 3 Photo-Bioreactor Lighting Module
