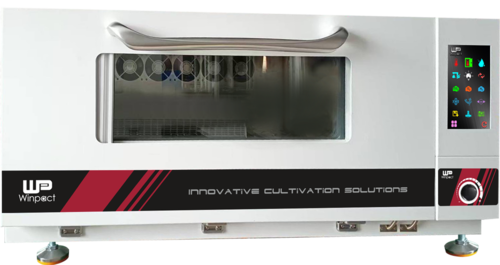

Winpact Stackable Incubator Shaker, SI-900 & SI-910
SI-900 & SI-910 Stackable Incubator Shaker 10" LCD Display Mode
Product
SI-900 & SI-910 Stackable Incubator Shaker 10" LCD Display Mode.
Shaking Incubators SI-200 / WS-200
- 10" LCD Display Mode
- Maximum capacity: 250 mL × 50 / 500 mL × 32 / 1000 mL × 18 / 2000 mL × 15
- Air circulation: forced convection, internal circulation
- Timer: 9999 minutes (or 9999 hours)
- Door opening method: slide up
- Multiple specifications for selection
* All images are for reference only, actual products might differ from the pictures above.
* Technical specifications subject to change without notice.
| Cat. No. | SI-900 | 910 |
|---|---|---|
| Volume | 282L | |
| Platform size(LxW) | 910mm × 500mm | |
| Maximum Capacity | 250 mL × 50 / 500 mL × 32 / 1000 mL × 18 / 2000 mL × 15 | |
| Platform Type | Slide Out | |
| Platform Material | SUS316L | |
| Display Mode | 10" LCD | |
| Timer | 9999mins (or 9999hrs) | |
| Speed Range | 0, 10~300 rpm | |
| Orbit Diameter | 26mm | |
| Temperature Control Range | 4~60°C (in 23~25°C) | |
| CO2 Control Range | N/A | |
| Illumination | Yes | |
| Air Circulation | Forced convection, internal circulation | |
| Sterilization Method | No | UV Sterilization |
| Door Opening | Glide Up | |
| External Dimensions (WxLxH) | 1362x962.5x568mm (inclued support foot and water pump filter) | |
| Inner Chamber (WxLxH) | 1011.6x659x423mm | |
| Stackable External Dimensions(WxLxH) | Single-layer : 1505x962.5x586.5mm (inclued support foot and water pump filter) Double-layer : 1505x962.5x1154.5mm (inclued support foot and water pump filter) Triple-layer : 1505x962.5x1722.58mm (inclued support foot and water pump filter) |
|
| Stackable Weight(kg) | Single-layer : 248kg Double-layer : 438kg Triple-layer : 626kg | |
| Noise Level | <=54 dB | |
| Power Supply | 110V/220V~ selectable, 50/60Hz, 1800W | |
| Cat. No. | Product Description |
|---|---|
| SI-900 | Stackable Incubator Shaker |
| SI-910 | Stackable Incubator Shaker |
Racks and Tray
| Cat. No. | Product Description | Max. platform capacity |
|---|---|---|
| SI-200-01 | Universal platform | 1 |
| SI-200-02 | Adjustable angle tube rack ( 33 x 15 ml ) | 4 |
| SI-200-03 | Adjustable angle tube rack ( 16 x 50 ml ) | 4 |
| SI-200-04 | Universal spring rack | 2 |
| SI-200-05 | Sticky pad platform | 1 |
| SI-200-06 | Universal cushioned crossbar platform | 1 |
| PPL-04-SI-SI-200-3 | Sticky pad 20x20 cm | 4 |
Microplate and flask holder
| Cat. No. | Product Description | Max. platform capacity |
|---|---|---|
| SI-200-07 | Microplate holder | 9 |
| SI-200-08 | Flask holder, 50 ml | 52 |
| SI-200-09 | Flask holder, 125 ml | 25 |
| SI-200-10 | Flask holder, 250 ml | 25 |
| SI-200-11 | Flask holder, 500 ml | 16 |
| SI-200-12 | Flask holder, 1000 ml | 9 |
| SI-200-13 | Flask holder, 2000 ml | 5 |
 |
Universal platform Cat. No.: SI-200-01 |
 |
Sticky Pad platform Cat. No.: SI-200-05 |
 |
Adjustable angle Tube Rack ( 33 x 15ml ) Cat. No.: SI-200-02 *tube not included |
 |
Universal cushioned crossbar platform Cat. No.: SI-200-06 |
 |
Adjustable angle Tube Rack ( 16 x 50ml ) Cat. No.: SI-200-03 |
 |
Microplate holders Cat. No.: SI-200-07 (Plataforma no incluída) |
 |
Universal Spring Rack Cat. No.: SI-200-04 |
 |
Flask holder Cat. No.: SI-200-08~13 |
