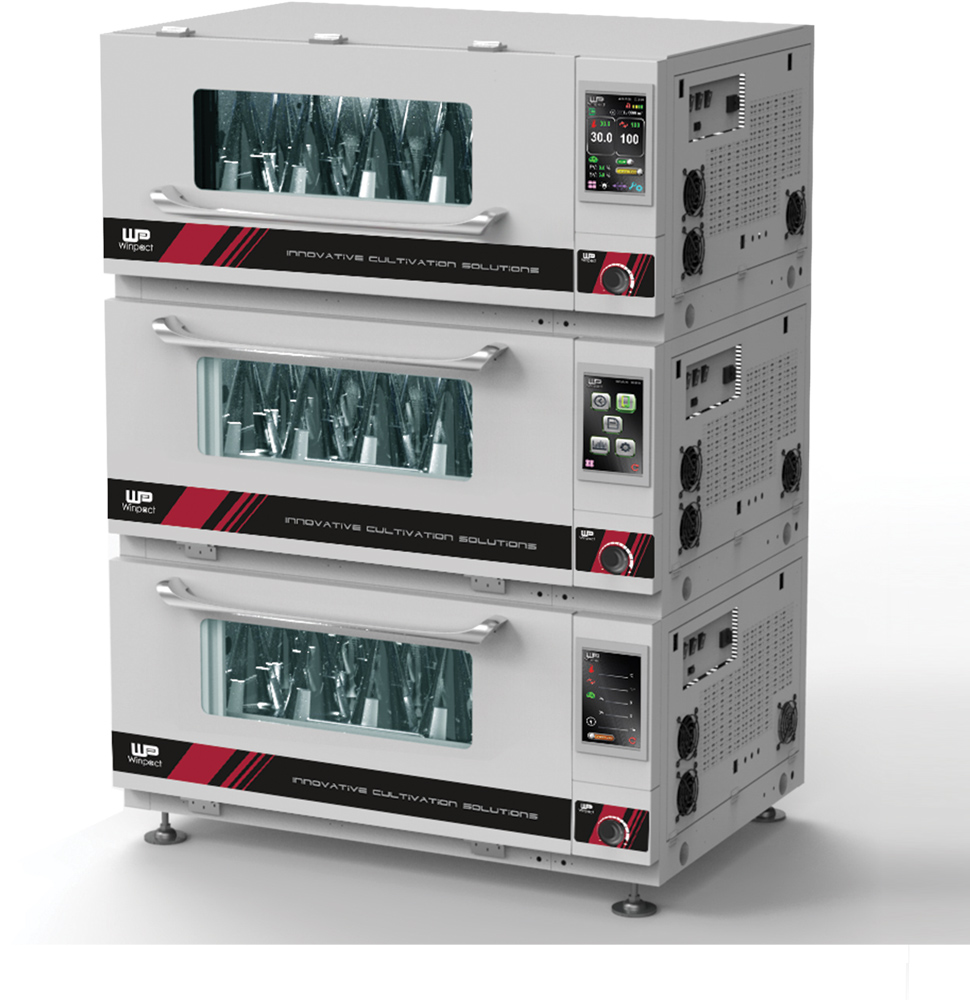

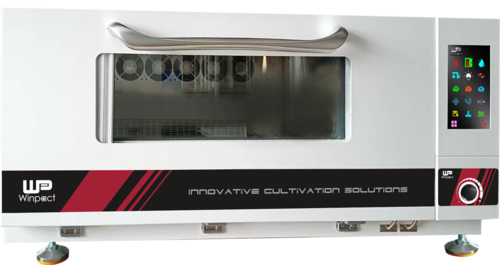

Winpact Stackable CO2 Incubator Shaker, SI-950 & SI-960 & SI-970
SI-950 & SI-960 & SI-970 Stackable CO2 Incubator Shaker 10" LCD Display Mode
Product
SI-950 & SI-960 & SI-970 Stackable CO2 Incubator Shaker 10" LCD Display Mode.
Shaking Incubators SI-200 / WS-200
- 10" LCD Display Mode
- Maximum capacity: 250 mL × 50 / 500 mL × 32 / 1000 mL × 18 / 2000 mL × 15
- Air circulation: forced convection, internal circulation
- Timer: 9999 minutes (or 9999 hours)
- Door opening method: slide up
- Multiple specifications for selection
* All images are for reference only, actual products might differ from the pictures above.
* Technical specifications subject to change without notice.
| Cat. No. | SI-950 | SI-960 | SI-970 |
|---|---|---|---|
| Volume | 282L | ||
| Platform size(LxW) | 910mm × 500mm | ||
| Internal Working Height | 348.3mm | ||
| Maximum Capacity | 250 mL × 50 / 500 mL × 32 / 1000 mL × 18 / 2000 mL × 15 | ||
| Platform Type | Slide Out | ||
| Platform Material | SUS316L | ||
| Display Mode | 10" LCD (Capacitive Touch Screen) | ||
| Control System | P.I.D. control | ||
| Control Mode | Manual editable program | ||
| Timer | 9999mins (or 9999hrs) | ||
| Speed Range | 0, 10~180 rpm | ||
| Motor | Servo motor | ||
| Speed Increment | ±1 rpm | ||
| Orbit Diameter | 50mm | ||
| Temperature Control Range | Ambient~60°C (in 23~26°C) |
4~60°C (in 23~26°C) | Ambient~60°C (in 23~26°C) |
| Temperature Increment | ±0.1°C | ||
| Temperature Uniformity | ±0.5°C (at 37°C) | ||
| Refrigerated | No | Yes | No |
| Heating Power | 800W | ||
| Cooling Power | No | 500W | No |
| CO2 Control Range | 0.1~20% | ||
| CO2 Accuracy | ±0.1% | ||
| CO2 Stability | ±0.5% | ||
| CO2 Sensor | Infrared (IR) | ||
| Relative Humidity | Water tray-based humidification, natural evaporation, ≧90%RH (depending on ambient humidity level and other factors) | 50~95%RH | Water tray-based humidification, ≧90%RH (depending on ambient humidity level and other factors) |
| Illumination | Yes | ||
| Air Circulation | Forced convection, internal circulation | ||
| HEPA | Optional | ||
| UV Germicidal Lamp | No | Yes | No |
| Sterilization Method | Moist Heat Sterilization (90°C) | UV Sterilization | Dry Heat Sterilization (180°C) |
| Door Opening | Glide Up | ||
| External Dimensions(WxDxH, mm) | 1362*962.5*568mm(inclued support foot and water pump filter) | ||
| Construction | Iron case with powder coating | ||
| Inner Chamber(WxDxH, mm) | 1011.6*659*423mm | ||
| Inner Chamber Material | SUS316L | ||
| Stackable External Dimensions(WxDxH, mm) | Single-layer : 1505*962.5*586.5mm(inclued support foot and water pump filter) Double-layer : 1505*962.5*1154.5mm(inclued support foot and water pump filter) Triple-layer : 1505*962.5*1722.58mm(inclued support foot and water pump filter) |
||
| Stackable Weight(kg) | Single-layer : 248kg Double-layer : 438kg Triple-layer : 626kg |
||
| Ambient Temperature Range | 5℃~40℃ | ||
| Noise Level | ≦54 dB | ||
| Power Supply | 110V/220V~ selectable, 50/60Hz, 1400W | 110V/220V~ selectable, 50/60Hz, 1800W | 110V/220V~ selectable, 50/60Hz, 1400W |
| Cat. No. | Product Description |
|---|---|
| SI-950 | Stackable CO2 Incubator Shaker, 110V/220V 1400W |
| SI-960 | Stackable CO2 Incubator Shaker, 110V/220V 1800W |
| SI-970 | Stackable CO2 Incubator Shaker, 110V/220V 1400W |
Racks and Tray
| Cat. No. | Product Description | Max. platform capacity |
|---|---|---|
| SI-200-01 | Universal platform | 1 |
| SI-200-02 | Adjustable angle tube rack ( 33 x 15 ml ) | 4 |
| SI-200-03 | Adjustable angle tube rack ( 16 x 50 ml ) | 4 |
| SI-200-04 | Universal spring rack | 2 |
| SI-200-05 | Sticky pad platform | 1 |
| SI-200-06 | Universal cushioned crossbar platform | 1 |
| PPL-04-SI-SI-200-3 | Sticky pad 20x20 cm | 4 |
Microplate and flask holder
| Cat. No. | Product Description | Max. platform capacity |
|---|---|---|
| SI-200-07 | Microplate holder | 9 |
| SI-200-08 | Flask holder, 50 ml | 52 |
| SI-200-09 | Flask holder, 125 ml | 25 |
| SI-200-10 | Flask holder, 250 ml | 25 |
| SI-200-11 | Flask holder, 500 ml | 16 |
| SI-200-12 | Flask holder, 1000 ml | 9 |
| SI-200-13 | Flask holder, 2000 ml | 5 |
 |
Universal platform Cat. No.: SI-200-01 |
 |
Sticky Pad platform Cat. No.: SI-200-05 |
 |
Adjustable angle Tube Rack ( 33 x 15ml ) Cat. No.: SI-200-02 *tube not included |
 |
Universal cushioned crossbar platform Cat. No.: SI-200-06 |
 |
Adjustable angle Tube Rack ( 16 x 50ml ) Cat. No.: SI-200-03 |
 |
Microplate holders Cat. No.: SI-200-07 (Plataforma no incluída) |
 |
Universal Spring Rack Cat. No.: SI-200-04 |
 |
Flask holder Cat. No.: SI-200-08~13 |
