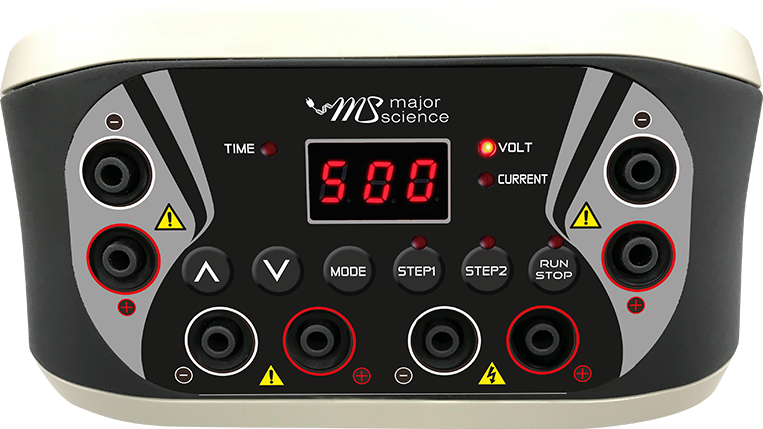

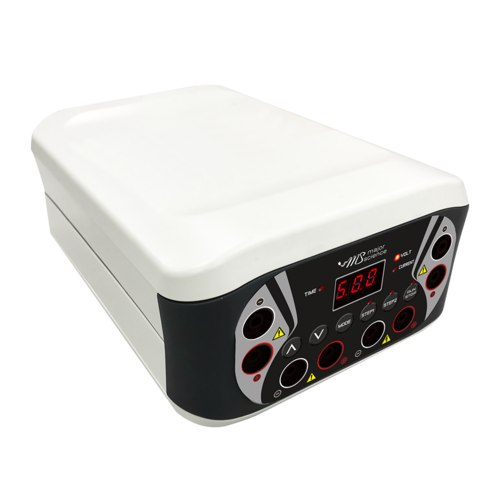

ODM Mini Pro 500V Power Supply CP version, ODM-MINI-500-CP
ODM-MINI-500-CP is both compact and versatile, making it the perfect choice for those with limited funds or space for lab equipment
Product
The Mini-500CP Volt Power Supply is both compact and versatile, making it the perfect choice for those with limited funds or space for lab equipment.
Fixed voltage or current can be selected according to the experimental needs. The compact size and complete functions meet your basic experimental needs, such as horizontal or vertical electrophoresis.
MS01_Mini Pro Power Supply * Marketing video
- New product design
- Operates at constant voltage or current
- Voltage and current settings with a minimum adjustment scale of 1 volt or 1 milliamp
- Output voltage: 500 volts
- Output current: 400 mA
- Output power: 120 watts
- 4 output terminals
- Timed warning function
- Safety device: no load detection
- Wrapped plugs and sockets
- Excellent price/performance ratio
- With horizontal or vertical electrophoresis
* All images are for reference only, actual products might differ from the pictures above.
* Technical specifications subject to change without notice.
| Cat. No. | ODM-MINI-500-CP |
|---|---|
| Output Voltage / Inc | Step1: 10 - 500V / 1V |
| Step2: 10 - 500V / 1V | |
| Output Current / Inc | Step1: 1 - 400mA / 1mA |
| Step2: 1 - 400mA / 1mA | |
| Max. Watt | 120W |
| Output Type | Constant voltage or constant current |
| Control | Microprocessor controller |
| Terminal Pairs | 4 pairs |
| Timer | 999 (min) with alarm/ Continuous (set=0) |
| Safety Device | No load detection; shrouded plugs and sockets |
| Operation Temperature | 4℃-40℃ |
| Dimension | Approx. 6.14" x 8.35" x3.3" (156 x 212 x 84mm) |
| Material | Polycarbonate housing and aluminum base plates |
| Weight | Approx. 2.4lb (1.1kg) |
| Rated Voltage | 100 - 240 V~, 50-60Hz, 2.5A |
| Program | 2-STEP Program |
| Cat. No. | Description |
|---|---|
| ODM-MINI-500-CP | ODM Mini Pro 500V Power Supply, CP version |
