Gas Inlet Control Module, FS-O-OE
FS-O-OE Winpact system to support your culture with addition of gas.
Product

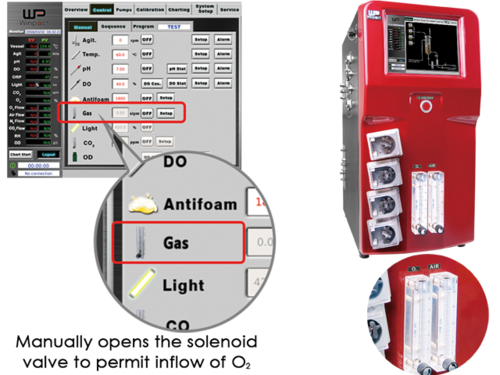

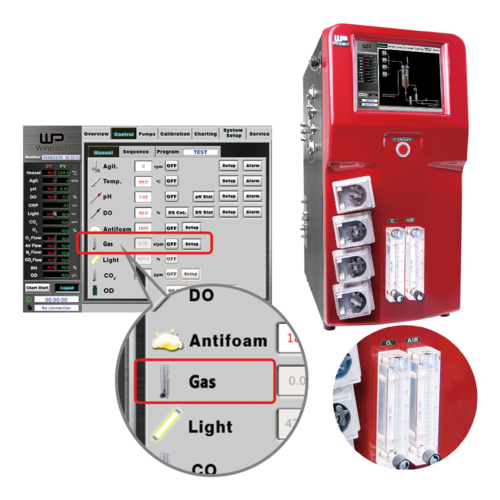

This Gas inlet control module is an optional device for your fermentation process. It enables the Winpact system to support your culture with addition of gas. The inlet control module consists of a gas pressure gauge, solenoid valve, and a rotameter. These components allow the external connection of gas to flow into the Winpact controller to be regulated either manually or automatically.
00-Winpact_Accessories mkt video * Marketing video
- Maintain aerobic environment for fermentation process
- Designed for high cell density and cells with high oxygen requirements
- Precise control of DO level
- Controlled manually or via DO control loop
- Manually flow rate adjustment via flow meter; flow rate duration via solenoid valve
* All images are for reference only, actual products might differ from the pictures above.
* Technical specifications subject to change without notice.
| Components | Includes a manual rotameter and a pulsed control valve | |
|---|---|---|
| Function | (1) Manual oxygen flow rate adjustment (via rotameter) | |
| (2) DO cascade control: response to DO change | ||
| Rotameter range | 1 L, 3 L, 5 L | 0, 0.4 – 5 LPM |
| 10L | 0, 1 – 10 LPM | |
| 15 L, 20 L | 0, 2 – 20 LPM | |
| Cat. No. | Product Description |
|---|---|
| FS-O-OE01 | Gas Inlet Control Module, including Solenoid Valve and Adjustable Rotameter for Parallel Fermentation System, single module |
| FS-O-OE02 | Gas Inlet Control Module, including Solenoid Valve and Adjustable Rotameter for Parallel Fermentation System, dual module |
| FS-O-OE03 | Gas Inlet Control Module, including Solenoid Valve and Adjustable Rotameter for Winpact One Fermentation System |
| FS-O-OE04 | Gas Inlet Control Module, including Solenoid Valve and Adjustable Rotameter for Winpact Evo Fermentation System |
*note: for CO2 gases control purposes, it requires the installation of Gas Analyzer (FS-O-GA)
