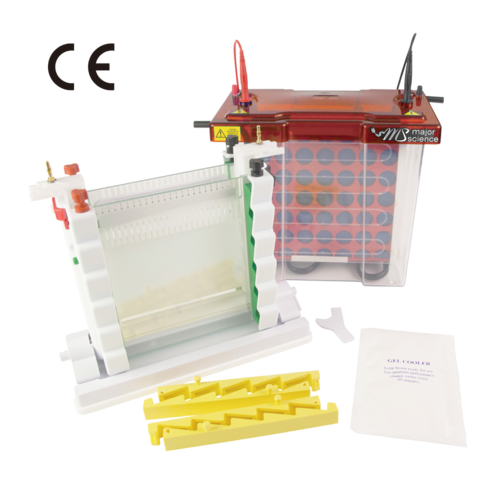

Complete Maxi Electro Blot System, MV-20CBS
MV-20CBS in conjunction with the advanced cooling system allow for rapid electroblotting in as little as one hour
Product
The Complete Electrophoresis Systems include both modules for gel electrophoresis, electroblotting and accessories, to provide a complete Mini gel casting, running and electroblotting system. The electroblotting module includes four inter-locking cassettes and sixteen fiber pads. A high intensity current is generated by coiled platinum electrodes. These features, in conjunction with the advanced cooling system allow for rapid electroblotting in as little as one hour.
 |
 |
| 1.Cassette Ends 2.Gel 3.Membrane 4.Blue Foam Pads & Papers |
Double hinged cassettes for added convenience |
MS02_Electrophoresis* Marketing video
- Versatile: Interchangeable modules for slab gel and Electroblotting using a single universal buffer tank
- Hinged cassettes
- High intensity electrodes
- 3 or 4 blot capacity depending on the model
- Rapid set-up cooling
* All images are for reference only, actual products might differ from the pictures above.
* Technical specifications subject to change without notice.
| MV-20CBS | Complete system for Maxi Vertical Electrophoresis & Blotting, comprising: |
| 1 x Maxi Vertical unit, including: | |
| 2x4mm thick notched glass plates | |
| 2x4mm thick plain plates with 1mm thick bounded spacers, 1 x dummy plate | |
| 2 x combs(1mm thick, 24 samples), 1 x casting base, silicone mat, cooling pack | |
| 1 x Electroblotting module, including: | |
| 1 x Internal electroblotting module | |
| 4 x Compression cassette for gel size up to 200x200mm, 18 x fiber pads |
