Winpact Solid State Fermentation System, FS-V-SA Series


FS-V-SA Series Winpact Solid State Fermentation system is designed for the laboratory scale research to get excellent results




Product

Solid state fermentation (SSF) can be used for enzyme, antibiotics, biofuel, and organic acid production in the food, pharmaceutical, cosmetic, industries, etc. One of the features for Solid state bioreactors is to create low water level cultivating conditions for fungus, mold, filamentous fungi, and some bacteria growth. Winpact Solid State Fermentation system is designed for the laboratory scale research to get excellent results. It is featured with a 10.4" color touch screen, user-friendly interface and 4 built-in peristaltic pumps on the Linux based operation system. An automatic vessel angle control mechanism provides an outstanding mixing efficiency for solid state material research. This system is suitable for both aerobic and anaerobic fermentation with three kinds of impellers available (Broken, Anchor and Spiral type).

  • Fully integrated system specifically designed for solid-state fermentation research involving saccharification, hydrolysis and more.

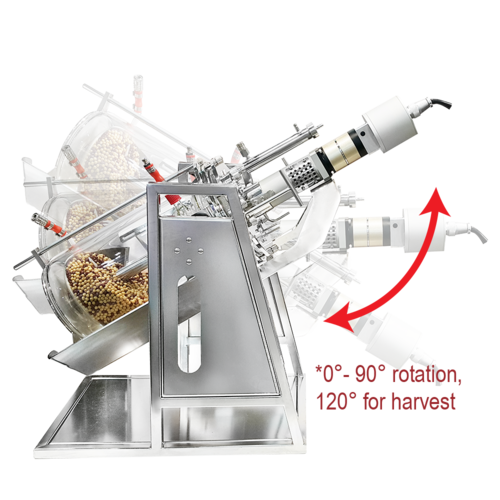

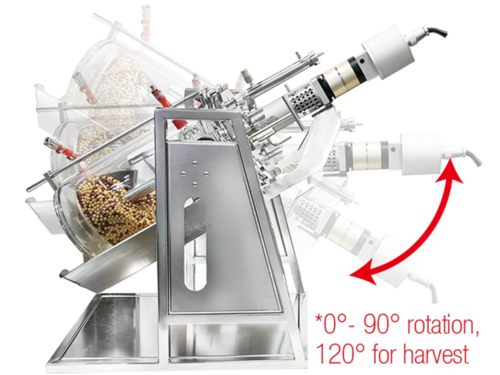

  • Programmable angle-adjustable (0-90° for culture control, 120°for harvest control) vessel tiling and stirring mechanism permits superior sample homogeneity.
  • Impellers are designed to reduce stickiness and it ensures sample integrity during the fermentation process.
  • Integrated motor shaft & air sparger assembly creates precise, disturbance-free controls of aeration and mixing.
  • Chemically resistant double jacketed borosilicate glass vessel design.
  • Can be used with pH and DO probes to control culture conditions (anchor type impellers only).
  • Customizable impellers and aeration controller available
  • Winpact Humidifier is available for real-time monitoring and humidity adjustment



FS-V-SA10   10L Solid Vessel
*10L solid state vessel is fixable angle 30°only.
** The minimum speed varies from 1-5 rpm depending on the medium viscosity. **
* All images are for reference only, actual products might differ from the pictures above.
* Technical specifications subject to change without notice.

Vessel Model FS-V-SA03P FS-V-SA05P FS-V-SA10P
Working volume 3L 5L 10L
Total volume 3.8L 6.8L 12.5L
Control Unit Control Panel 10.4” color touch-screen Interface, (Resolution: 800 x 600 pixels)
Communication Port Remote control through Ethernet, Analog AUX port for system extension
Storage Program Up to 59,994 programs for different kinds of condition.
Data Internal Storage Up to 100 data files.
Data External Storage Interface USB port
Cabinet Material Front panel: ABS / Housing: Painted iron
Rated Voltage 110V~/ 220V~ ; 50/60 Hz
Aeration It Gas Flnleow-meter 0, 1 – 6 LPM 0, 1 – 10 LPM 0, 1 – 20 LPM
Dimension Dimension Overall Diameter 315mm; Overall Height with Condenser 633 mm; Overall Height without Condenser 388 mm Dimension (with vessel holder) 430mm (L) x 730mm (W) x 780 mm (H) Overall Diameter 350mm; Overall Height with Condenser 683 mm; Overall Height without Condenser 448 mm Dimension (with vessel holder) 430mm (L) x 730mm (W) x 780 mm (H) Overall Diameter 385mm; Overall Height with Condenser 815 mm; Overall Height without Condenser 750 mm Dimension (with vesselstand) 1120mm (L) x 320mm (W) x 695 mm (H)
Temperature Heating Thermostat system: Built-in heat exchanger, 550W heater/water circulation pump
Cooling Automatic cooling water valve
Range 5°C (41°F ) above coolant up to 60°C (140°F )
Resolution 0.1°C
Control Mode Manual or programmable 15-step PID control.
Agitation Drive Removable top brushless motor
Speed Range 0, 1 – 60 rpm
Resolution 1rpm
Control Mode Manual or programmable 15-step PID control.
Impeller 1. Broken type
FS-A-IM305
FS-A-IM306 FS-A-IM307
2. Anchor type:
FS-A-IM408
FS-A-IM406 FS-A-IM409
3. Spiral type:
FS-A-IM507
FS-A-IM506 FS-A-IM508
(Select one from the above type, and only anchor impeller can be used with pH and DO probes)
*Note: Customized impellers are available.
**In pH and DO measurement condition, the minimum medium volume is 4L and water content is more than 50%, tilting angle not over 30 degree.
***The measure value of pH and DO may not accurate when using in solid-state culture condition.
****pH and DO probe is not within the scope of warranty when using in solid-state vessel.
Vessel Swing Angle Range Normal operation: 0°~90° adjustable time interval Vessel stand with fixed angle 30°
Harvest mode: 0°/ 120° N/A
Control Mode Programmable control N/A
