Liquid Culture Vessel Selection Guide
Vessel selection guide provides an easy to read guidance
Product
The vessel selection guide provides an easy to read guidance and simple idea on which vessel is suitable for your application to use.
00-Winpact_ Lab Fermentor & Bioreactor System

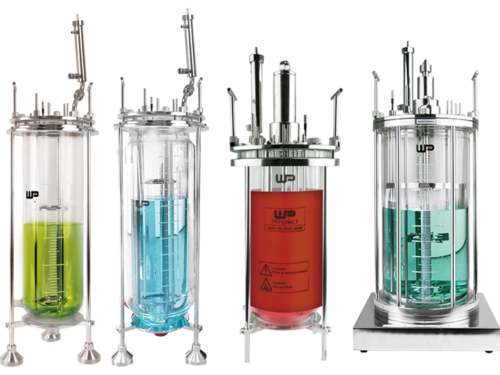

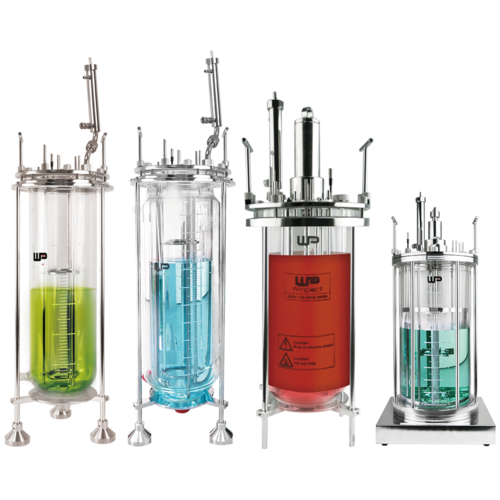

Winpact Vessel Selection Guide
| Vessel | Double Jacketed Dish Bottom Vessel | Single Wall Dish Bottom Vessel | Air Lifter Vessel | Single Wall Dish Bottom Vessel with Heating Blanket | Single Wall Plain Bottom Vessel with Heating Base Unit | Solid State |
|---|---|---|---|---|---|---|
| Serie FS-V-A | Serie FS-V-B | Serie FS-V-C | Serie FS-V-B | Serie FS-V-D | FS-V-SA05P | |
 |
 |
 |
 |
 |
 |
| Controller | Duo Heating Control ( FS-05, FS-06, FS-07 ) | |||||
|---|---|---|---|---|---|---|
| Vessel | Double Jacketed (FS-V-A series) | Single Wall (FS-V-B series) | Air Lifter (FS-V-C series) | Single Wall with Heating Blanket (FS-V-B series) | Single Wall with Heating Base Unit (FS-V-D series) | Solid State (FS-V-SA05P) |
| Agitation Motor | Brushless motor | Brushless motor | N/A | Brushless motor | Brushless motor | Brushless motor |
| Impeller | Rushton-type; Pitched-blade | Rushton-type; Pitched-blade | N/A | Rushton-type; Pitched-blade | Rushton-type; Pitched-blade | Broken type; Anchor type; Spiral type |
| Temp Range | 5 °C above coolant to 60°C | 5 °C above coolant to 60°C | Double Jacketed: 5°C above coolant to 60°C Single Wall: without temp control |
5°C above coolant to 60°C | 5°C above coolant to 90°C | 5°C above coolant to 60°C |
| Vessel Size | 500ml - 10L | 1 - 10L | 5L only, single wall or double jacketed | 1 - 20L | 3 - 10L | 5L only |
| Speed Range | Rushton type 30-1800 rpm(0.5, 1L); 30-1200 rpm(3, 5L); 30-1000 rpm(10L) Pitched blade 30-300 rpm |
Rushton type 30-1800 rpm(1L); 30-1200 rpm(3, 5L); 30-1000 rpm(10L) Pitched blade 30-300 rpm |
N/A | Rushton type 30-1800 rpm(1L); 30-1200 rpm(3, 5L); 30-1000 rpm(10L); 30-700 rpm(15, 20L) Pitched blade 30-300 rpm |
Rushton type 30-1200 rpm(3, 5L); 30-1000 rpm(10L) Pitched blade 30-300 rpm |
1-60rpm * The minimum speed varies from 1-5 rpm depending on actual medium density. |
| Heating | Built-in heat exchanger | Heating blanket | Heating base unit | Built-in heat exchanger | ||
| Cooling | External chiller, automatic cooling water valve | |||||
| Aeration | L-shape or ring sparger | L-shape or ring sparger | Micro-sparger | L-shape or ring sparger | L-shape or ring sparger | Center-located sparger |
| Grounding Port | No need | No need | Yes | No need | No need | No need |
| Application | Excellent for temperature sensitive and shear-force sensitive cells such as mammalian and insect cell culture | Great for aerobic or anaerobic microbial culture; suitable for plant cell and photosynthesis cell culture | Excellent for shear-sensitive cells; ideal for plant cells, fungal cells, algae cell and photosynthesis cell culture | Ideal for rapid temperature change aerobic and anaerobic microbial (bacteria and yeast) fermentation | Excellent for aerobic and anaerobic microbial (bacteria, yeast) culture, such as E.coli | Special for the culture of microbial in substrates with low water levels condition , generally suitable for fungi, such as filamentous fungi |
*For FS-V-A, FS-V-B and FS-V-D series, the standard impeller is Rushton type; Pitched blade is available for cell culture upon request.
| Vessel | Double Jacketed (FS-V-A series) | Single Wall (FS-V-B series) | Air Lifter (FS-V-C series) | Single Wall With Heating Blanket (FS-V-B series) | Single Wall With Heating Base Unit (FS-V-D series) | Solid State (FS-V-SA05P) |
|---|---|---|---|---|---|---|
| Mammalian cell culture | ● ● | ● ○ | ○ ○ | ● ○ | ○ ○ | ○ ○ |
| Aerobic microorganism culture (Note 1) | ● ● | ● ● | ● ● | ● ● | ● ● | ○ ○ |
| Micro-aerobic microorganism culture (Note 2) | ● ● | ● ● | ○ ○ | ● ● | ● ● | ○ ○ |
| Anaerobic microorganism culture (Note 3) | ● ● | ● ● | ○ ○ | ● ● | ● ● | ○ ○ |
| Fragile cell culture (Note 4) | ● ● | ● ○ | ● ● | ● ○ | ○ ○ | ○ ○ |
| Photosynthesis cell culture (Note 5) | ● ○ | ● ● | ● ● | ○ ○ | ● ○ | ○ ○ |
| Plant cell culture | ● ○ | ● ○ | ● ● | ○ ○ | ○ ○ | ○ ○ |
| Insect cell culture | ● ● | ● ○ | ○ ○ | ● ○ | ○ ○ | ○ ○ |
| Solid State (FS-V-SA05P) | ○ ○ | ○ ○ | ○ ○ | ○ ○ | ○ ○ | ● ● |
● ● Excellent ● ○ Good ○ ○ Not Recommended
Note:
- 1. Some bacteria; yeast; fungi
- 2. Facultative culture (For example, some Lactobacillus; ethanol production)
- 3. Same as Note 2
- 4. This vessel is excellent for fragile cells that are easily sheared by any type of mechanical impeller
- 5. Plant; algae; cyanobacteria (blue-green algae)
Vessel Specification
| Vessel type | Double Jacketed Dish Bottom Vessel (FS-V-A series) | ||||
|---|---|---|---|---|---|
| Material | Borosilicate glass / 316L stainless steel for headplate and all fittings (H:D ratio: 2:1) | ||||
| Working volume ** | 500ml | 1L | 3L | 5L | 10L |
| Total volume Δ | 1L | 1.5L | 3.8L | 6.8L | 12.5L |
| Vessel type | Single Wall Dish Bottom Vessel (FS-V-B series) | |||
|---|---|---|---|---|
| Material | Borosilicate glass / 316L stainless steel for headplate and all fittings (H:D ratio: 2:1) | |||
| Working volume ** | 1L | 3L | 5L | 10L |
| Total volume Δ | 1.5L | 3.8L | 6.8L | 12.5L |
| Vessel type | Air Lifter Vessel (FS-V-C series)* | |
|---|---|---|
| Material | Borosilicate glass / 316L stainless steel for headplate and all fittings (H:D ratio: 3:1) | |
| Working volume ** | 5L single wall | 5L double jacketed |
| Total volume Δ | 7L | |
| Vessel type | Single Wall Dish Bottom Vessel With Heating Blanket (FS-V-B series) | |||||
|---|---|---|---|---|---|---|
| Material | Borosilicate glass / 316L stainless steel for headplate and all fittings (H:D ratio: 2:1) | |||||
| Working volume ** | 1L | 3L | 5L | 10L | 15L | 20L |
| Total volume Δ | 1.5L | 3.8L | 6.8L | 12.5L | 18.7L | 23.7L |
| Vessel type | Single Wall Plain Bottom Vessel With Heating Base Unit (FS-V-D series) | ||
|---|---|---|---|
| Material | Borosilicate glass / 316L stainless steel for headplate and all fittings (H:D ratio: 2:1) | ||
| Working volume ** | 3L | 5L | 10L |
| Total volume Δ | 3.7L | 6.7L | 13.1L |
| Vessel type | Solid State (FS-V-SA05P) |
|---|---|
| Material | Borosilicate glass / 316L stainless steel for headplate and all fittings |
| Working volume ** | 5L |
| Total volume Δ | 6.8L |
** Suggested Max.
Δ Total volumes are approximate and may vary slightly.
| Model | FS-05 | FS-06 | FS-06 + FS-06EPM* |
FS-07 |
|---|---|---|---|---|
| Product Name | Winpact Parallel | Winpact One | Winpact One | Winpact Evo |
| Heating System | Duo heating | |||
| Working Volume Range | 500ml - 20L | 500ml - 10L | 500ml - 10L | 500ml - 20L |
| Autoclavable Glass Vessels | Yes | |||
| Interchangeable Vessels | Compatible with all types of vessels, except for 5L solid state which is only for FS-05 and FS-07 controller | |||
| Number Of Vessels Controlled Per Controller | 2 | 1 | 1 | 1 |
| Number Of Vessels Controlled Via Remote Software | Max 32 | Max 16 | Max 16 | Max 16 |
| Touchscreen Controller | 10.4" | 8" | 8" | 10.4" |
| Number Of Peristaltic Pumps | 8 | 3 | 3 | 4 |
| Gas Mixing Options | Available | No | Available, * | Available |
| Oxygen Enrichment | Available | No | Available, * | Available |
| Mass Flow Controller | Available | No | No | Available |
| Off Gas Analyzer | Available | No | No | Available |
| ORP Probe | Available | No | Available, * | Available |
| Lighting Module | Available | No | Available, * | Available |
| External Pump | 4 max. | 1 max. | 2 max. | 2 max. |
| Solid State | Available | No | No | Available |
* Optional expansion module (FS-06-EPM) needed.
* All images are for reference only, actual products might differ from the pictures above.
* Technical specifications subject to change without notice.
