MS Orbital Shaker, MS-NOR-30/MS-NOR-3001
Product
Three different shaking motions of MS Shaker series is provided for many purposes in chemical and life sciences laboratories. The Orbital Shaker digitally controls clockwise and/or counter-clockwise orbits to create superb mixing efficiency. MS Shaker provides continuous or timed operation with integral electronic timer, LED display, audible signal for automatic switch-off timed control, interchangeable/stacking platforms. Reciprocal shaker can hold up to 15kg of weight.
For Anti-moisture model
The MS Anti-moisture Shaker series offers the same capabilities as our original MS shaker series with moisture protection coating. The moisture protection allows you to operate the shaker in cold-room or low temperature environment. An anti-moisture coating is applied on the electrical structure to minimize and prevent the forming of condensation when operating in & out of the cold room. Standard features and accessories from the MS shaker series apply to all three differen models.
MS09_ MS Waver Shaker MW-23 * Marketing video

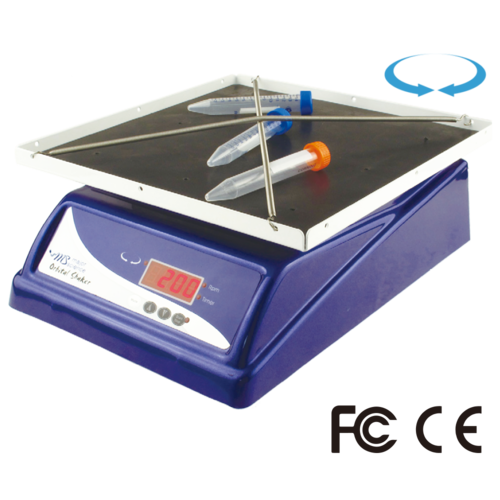

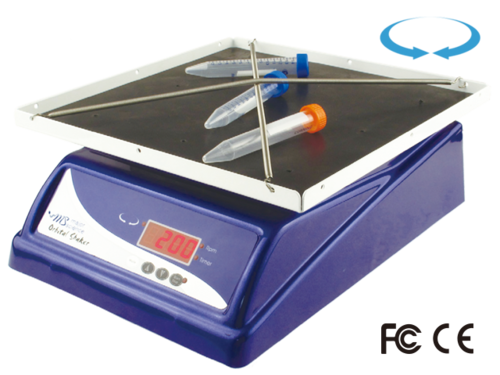

MS09_MS Orbital Shaker MS-NOR-30
- Continuous one way orbital shaking or two ways clockwise/counter-clockwise orbital shaking
- Continuous or timed operation with auto shut-off
- Variable shaking speed up to 200rpm for MS-NOR-30
- Variety of accessories available
- Max. 22.0lb (10kg) loading capacity for MS-NOR-30
- Special anti-moisture coating allows smooth operation in cold room environment or CO2 incubation
- Optional 300x300mm platform available for your selection.
Platform capability of Flask Holders
| Flask | Max. set of flask holder |
|---|---|
| MS-NOR-30 | |
| 50ml | 13 |
| 125ml | 12 |
| 250ml | 9 |
| 500ml | 5 |
| 1000ml | 4 |
| 2000ml | 1 |
* All images are for reference only, actual products might differ from the pictures above.
* Technical specifications subject to change without notice.
| Cat. No. | MS-NOR-30 /(MS-NOR-3001**) |
|---|---|
| Motion | Orbital |
| Moving Feature | Orbital action in one direction or two directions |
| Bi-directional Shaking | 0.1 - 10 circle / 0.1 circular increment |
| Maximum Tilt Angle | N / A |
| Maximum Stroke Length | 20mm |
| Controller | Digital microprocessor controller |
| Speed/Inc. | 0 - 200rpm / 1rpm |
| Timer | 9999 (min) with alarm / Continuous |
| Loading Capacity | 22.0lb (10kg) |
| Motor | Stepping motor |
| Operating Temperature | Ambient to 40°C |
| Platform Dimension (WxL) | Approx. 11.8"x11.8" (300x300mm) |
| Platform Material | Painted iron metal |
| Stacking Platform | Yes |
| Dimension (WxLxH) | Approx. 11.8"x12.2"x5.1" (300x310x130mm) |
| Material | ABS and Painted iron metal |
| Weight | Approx. 15.4lb (7.0kg) |
| Rated Voltage | 110V / 220V~ selectable; 50/60Hz; 0.63A |
| Cat. No. | Product Description |
|---|---|
| MS-NOR-30 | MS Orbital Shaker with 300x300mm platform and flat non-slip rubber mat, 110V/ 220V~ |
| MS-NOR-3001 | MS Orbital anti-moistured shaker with 300x300mm platform and flat non-slip rubber mat, 110V/220V~ |
*MS-NOR-3001 Special coating allows anti-moisture for cold room operation.

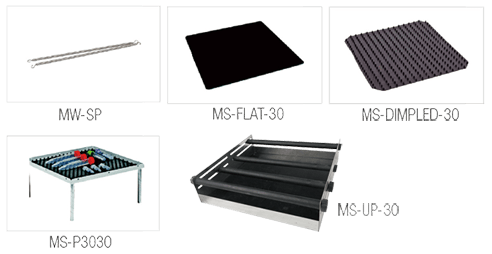

| Cat. No | Product Description |
|---|---|
| MW-SP | Strip springs (pack of 2), 265mms |
| MS-P3030 | Additional 300x300mm platform with attachable 100mm pillars 8pcs and flat non-slip rubber mat |
| MS-DIMPLED-30 | 300x300mm dimpled mat |
| MS-FLAT-30 | Non-slip rubber mat 300x300mm |
| MS-UP-30 | Universal adjustable platform, 300x300mm (Maximum capacity: 2x2Lflasks) |
| PPL-04-SI-SI-200-3 | Sticky Pad 200x200mm |
| SI-200-08 | Flask Holder, 50ml |
| SI-200-09 | Flask Holder, 125ml |
| SI-200-10 | Flask Holder, 250ml |
| SI-200-11 | Flask Holder, 500ml |
| SI-200-12 | Flask Holder, 1000ml |
| SI-200-13 | Flask Holder, 2000ml |
