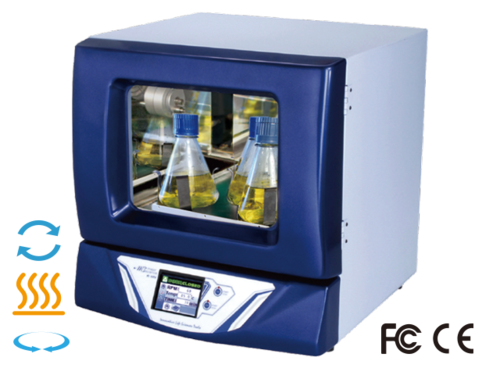

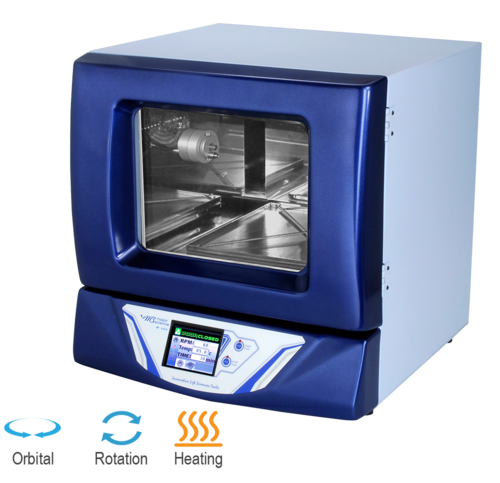

Major Hybridization Oven series is the advanced version of MS Oven and is designed to equip with built-in rotisserie function. MO-AOR is embedded with orbital shaking platform and is ideal for nucleic acid hybridization and incubation such as Southern, Northern, and Western blot. Full accessories are also available upon request to meet different applications.
MS08_ Hybridization Shaking Oven, Orbital MO-AOR MO-AOR-02 * Marketing video
MS08_MS Hybridization Shaking Oven, Orbital MO-AOR MO-AOR-02
Cat. No. | MO-AOR |
---|---|
Display | 3.5" 64K color TFT display |
Controller | 32-bits Microprocessor |
Control Interface | Touch screen & graphical interface |
Rotisserie Function | Yes |
Rotisserie Speed / Inc. | 5 - 100rpm / 1rpm |
Timer | 9999 (min) with alarm / Continuous |
Shaker Motion | Orbital clockwise / counterclockwise |
Shaker Speed | 0 - 200rpm |
Temperature Control Range | Ambient +5°C to 85°C |
Temperature Increment | 0.1°C |
Temperature Uniformity | ± 0.2°C at 37°C |
Temperature Accuracy | ± 0.2°C at 37°C |
User Temperature Calibration | Yes |
Inner Chamber Dimensions (WxLxH) | Approx. 13.4"x8.9"x10.2" (340x225x260mm) |
Inner Chamber Volume | Approx. 5.28gal (20L) |
Dimension (WxLxH) | Approx. 17.4"x18.2"x17.8" (442x462x452mm) |
Platform (WxL) | Approx. 10.6"x7.9" (270x200mm) |
Data Logging | RS-232 |
Weight | Approx. 63.9lb (29kg) |
Rated Voltage | 110 / 220V~ 50 / 60Hz (Selectable) |
Construction | Painted iron metal with ABS front door |
Safety Device | Safety door switch |
Thermal safety switch | |
Auto shut off upon fan failure | |
Power failure auto recovery |
Cat. No. | MO-A01 | MO-AOR |
---|---|---|
Rotisserie Function | N/A | Yes |
Rotisserie Speed / Inc. | N/A | 5-100rpm / 1rpm |
Shaker Motion | N/A | Orbital clockwise / counterclockwise |
Shaker Speed | N/A | 0-200rpm |
Max. set of flask holder | ||
---|---|---|
Flask | MO-AOR | |
50ml | 8 | |
125ml | 8 | |
250ml | 5 | |
500ml | 2 |
Cat. No. | Product Description |
---|---|
MO-AOR | MS Hybridization/Orbital Shaking Oven (without rotisserie),110 / 220V~ |

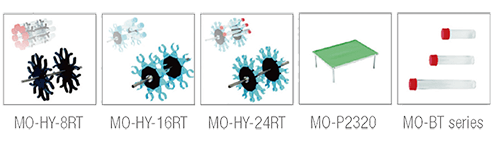

Cat. No | Product Description |
---|---|
MO-HY-8RT | 40mm tube rotisserie for 8 tubes |
MO-HY-16RT | 50ml conical tube rotisserie for 16 tubes |
MO-HY-24RT | 15ml conical tube rotisserie for 24 tubes |
MO-P2320 | Additional 230x200mm platform for orbital and reciprocal shaker (with 4 of 100mm pillars) |
SI-200-08 | Flask Holder, 50ml |
SI-200-09 | Flask Holder, 125ml |
SI-200-10 | Flask Holder, 250ml |
SI-200-11 | Flask Holder, 500ml |
MO-BT40x150 | Glass tube 40x150mm (diameter x length) |
MO-BT40x200 | Glass tube 40x200mm (diameter x length) |
MO-BT40x300 | Glass tube 40x300mm (diameter x length) |
