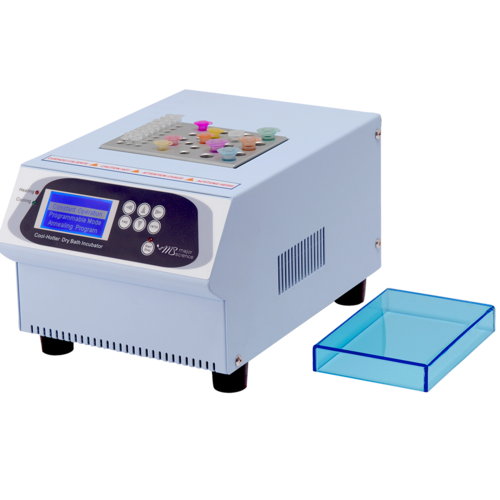

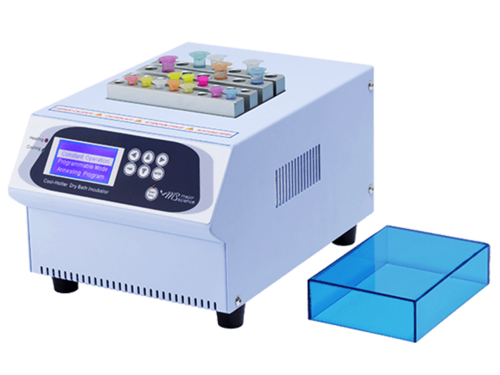

Ultimate Dry Bath Incubator, MC-01N


Ultimate Dry Bath Incubator is available with different heating and cooling profiles, along with a broad selection of interchangeable blocks. The model is designed for a variety of applications including ligation, restriction digest, denaturing DNA, BUN, melting agar, coagulation studies, hybridization and hot start thermo-cycled reaction. The built-in 2.6" LCD screen permit instant viewing and selection of operation modes: constant, programmable and annealing. The microprocessor controller offers performance, precise control as well as rapid heating and cooling efficiency with excellent stability. The temperature can be set in 0.1°C increments, from -10°C to 100°C. Optional PC control software is available for real time data logging.

MS06_Ultimate Dry Bath Incubator * Marketing video

  • Digital microprocessor offers performance and precise control
  • Broad temperature control range & guaranteed uniformity
  • Highly efficient heating & cooling rates
  • Large LCD screen for easy selection of operation modes and setting inputs
  • User temperature calibration
  • Also a mini water bath and bead bath
  • Optional PC recording software available
  • Green: Temp. set value:100°C
  • Red: Initial temp. value:25°C
  • Block model: MC-B0.2+0.5+1.5
  • Process time: Approx. 17mins
  • Green: Temp. set value:0°C
  • Red: Initial temp. value:100°C
  • Block model: MC-B0.2+0.5+1.5
  • Process time: Approx. 62mins

Annealing Program

  • Initial Temp. 95.0
  • Descending Temp. 5.0
  • Holding Time. 5
  • Final Temp. 4.0
Cat. No. MC-01N
Chamber Dimension (WxLxH) Approx. 5.1"x3.5"x2" (130x90x50mm)
Display 2.6" LCD
Power 400W
Dimension (WxLxH) Approx. 7.9"x11.6"x5.5" (200x295x140mm)
Controller Digital microprocess controller
Heating Chamber Molded Waterproof aluminum alloy coated with PTFE
Temperature Control Range 30° below ambient temperature ( minimum -10° ) to 100°
Temperature Increment 0.1°
Temperature Uniformity ± 0.2° at 37°
Temperature Accuracy ± 0.2° at 37°
Temperature Calibration Yes
Operation Mode Constant operation: constant temperature ( -10oC to 100oC ); Timer: 9999 (min)
Program operation: 1-4 steps and up to 9 cycles; timer: 9999 (min)
Annealing program
Safety Device Leak proof heating chamber
Operating Temperature Ambient to 40°
Special Feature Can be used as water bath or bead bath incubator
Block Material Aluminum alloy
Block Type Standard and customized type are available
PC Connection RS232
Rated Voltage 110V / 220V~
Weight Approx. 17.6lb (8kg)
Blocks Ultimate MC Block
Dimension (WxLxH) Approx. 3.5"x5.1"x1.8" (89x129x46mm)
Block Material Aluminum alloy
Block Lifter Well Yes
Thermometer Well Yes ( except microplate blocks )
Cat. No. Product Description
MC-01N-110/220 Ultimate Dry Bath Incubator; without block
Cat. No. Product Description
MC-RS232 RS 232 cable
MC-PCSW Function control software package
MC-PCSW-R Function control software package; including a RS232 cable
  Cat. No. Product Description
Ultimate Dry Bath Blocks MC-MP01 For Microplate; titer plate (Plain Block)
MC-MP02 For 96 wells deep microplate or PCR plate
MC-B0.5 For 0.5ml, 30 wells
MC-B1.5 For 1.5 or 2.0ml, 30 wells
MC-B0.5+1.5 Combination: for 1.5ml or 2.0ml tube, 15 wells and 0.5ml tube, 15 wells (on the same side)
MC-B0.2+0.5+1.5 Combination: 0.2ml tube (or strip tube for 8 wells ), 24 wells; 1.5ml or 2.0ml tube, 10 wells and 0.5ml tube, 10 wells (on the same side)
MC-B13 Well size 13mm, 30 wells
MC-B17 For 15ml centrifuge tube, 15 wells
MC-B20 Well size 20mm, 15 wells
MC-B25 Well size 25mm, 6 wells
MC-B29 For 50ml centrifuge tube, 6 wells
MC-B0.2H (1/2) half block for 0.2ml tube, 40 wells ( or 0.2ml PCR strip tube for 8 wells x 5)
One Ultimate Dry Bath Incubator can insert 2ea of half block
MC-B0.5H (1/2) half block for 0.5ml tube, 15 wells
One Ultimate Dry Bath Incubator can insert 2ea of half block
MC-B1.5H (1/2) half block for 1.5 or 2ml tube, 15 wells
One Ultimate Dry Bath Incubator can insert 2ea of half block
MC-BS0.2+0.5 Combination: 0.2ml tube, 36 wells; 0.5ml, 20 wells
MC-BS0.5+1.5 Combination: 0.5ml tube, 18 wells; 1.5ml, 14 wells
MC-BD Ultimate bead bath block, (WxLxH) 90 x127x76mm
MS-BL95-E Block Lifter, 95mm length with E-type retaining rings
