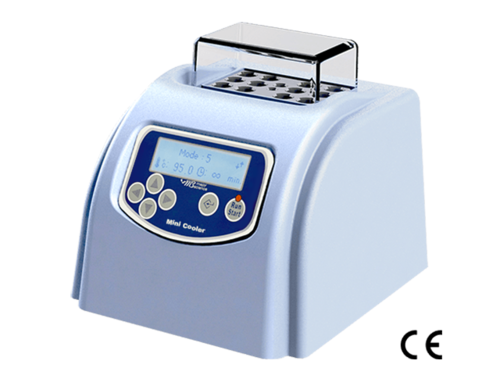

Mini Cooling Dry Bath Incubator, MC-0203
MC-0203 incorporates innovative ideas of compactness, performance and versatility.
Product
The product line Mini Cooling Dry Bath Incubator is the mini-series of our ultimate dry bath. It is designed to meet the requirement of accurate temperature control, ease of data transferring and programming, small foot print and ease of use. Experience the exceptional heating/cooling rate with quick start feature and the portability to work your sample on the road! Perfect instrument can be used in QC process such as in food industry.
MS06_Mini Heating Dry Bath Incubator MD-MINI * Marketing video
- Small size, fits in your palm
- User temperature calibration
- Single molded chamber, no cracks or welds
- PTFE coated chamber resists stains

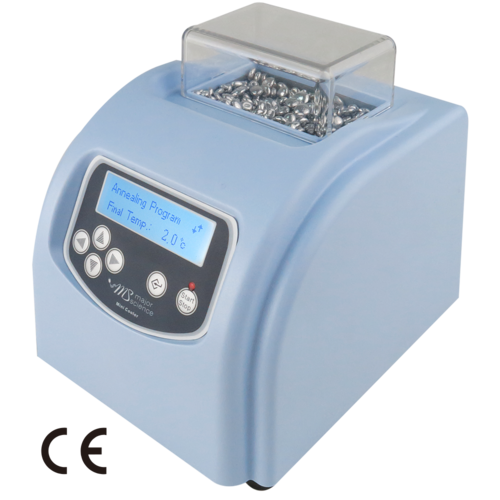

- Can be used as a mini water bath or bead bath
- Outstanding heating and cooling rate
- Different sizes of aluminum alloy block available for selection
- Clear cover to ensure temperature uniformity
- Quick start / Constant mode / programmable mode / Annealing program operation mode
- Optional in car power adaptor provides portability on the road
 |
 |
 |
| with block | with water | with beads |
- Temp. set value: -6°C
- Initial temp. value: 20.6°C
- Block type: MD-MINI-B02
- Process time: Approx. 20mins
- Temp. set value: 100°C
- Initial temp. value: 9°C
- Block type: MD-MINI-B02
- Process time: Approx. 20mins
Annealing Program
- Initial Temp. 95.0°C
- Descending Temp. 5.0°C
- Holding Time. 5 sec
- Final Temp. 4.0°C
* Technical specifications subject to change without notice.
| Cat. No. | MC-0203 |
|---|---|
| Display | LCD |
| Power | max. 60W |
| Dimension (WxLxH) | Approx. 5.3"x6"x7.3" (135x152x185mm) (excluding lid) |
| Controller | High performance 32 bits microprocessor |
| Heating chamber | Molded waterproof aluminum alloy coated with PTFE |
| Temperature control range | 30°C below ambient temperature (minimum -10°C) to 100°C |
| Temperature Increment | 0.1°C |
| Temperature Uniformity | ± 0.2°C at 37°C |
| Temperature Accuracy | ± 0.2°C at 37°C |
| Temperature Calibration | Yes |
| Heating Rate | Max. 5°C per min |
| Cooling Rate | Max. 4°C per min |
| Timer | 9999 (min) |
| Cooling/ Heating Parts | Peltier / Heating element |
| Operation Mode | Constant operation: constant temperature (-10°C to 100°C) |
| Program operation: 1-4 steps and up to 9 cycles | |
| Annealing program | |
| Quick start program: 4°C, 16°C, 37°C, 56°C, 95°C pre-set | |
| Safety | Leak proof heating chamber |
| Operating temperature | Ambient to 40°C |
| Special Feature | Can be used as water bath or bead bath incubator |
| Block material | Aluminum alloy |
| Block type | Standard and customized type are available |
| PC Connection | USB |
| Weight | Approx. 2.9lb (1.3kg) |
| Cat. No. | Product Description |
|---|---|
| MC-0203 | Mini Cooling Dry Bath Incubator, programmable cooling and heating; without block |
| Cat. No. | Product Description |
|---|---|
| MC-0200-SW | Functional control software for Mini Cooling Incubator including a USB cable |
| MD-MINI-B01 | For 0.2ml tube (PCR strip tube), 32 wells, φ6.35mm, depth 19mm, (WxLxH) 47x71x32mm |
| MD-MINI-B02 | For 1.5ml tube, 12 wells,φ10.8mm, depth 28.5mm, (WxLxH) 47x71x32mm |
| MD-MINI-B03 | For 15ml tube, 6 wells, φ17.3mm, depth 70mm, (WxLxH) 47x71x75mm |
| MD-MINI-B04 | For 50ml tube, 2 wells, φ29.2mm, depth 72mm, (WxLxH) 47x71x75mm |
| MD-MINI-B05 | For 0.5ml tube, 12 wells, φ8.0mm, depth 25mm, (WxLxH) 47x71x32mm |
| MD-MINI-B06 | For 2.0ml or 1.5ml tube, 12 wells, φ11.0mm, depth 30mm, (WxLxH) 47x71x32mm |
| MD-MINI-B07 | For 1.5ml tube, 12 wells, φ10.9mm, depth 30mm, (WxLxH) 47x71x32mm |
| MS-BL95-E | Block Lifter, 95mm length, with E-type retaining rings |
| MD-MINI-LID | MD-MINI lid, (WxLxH) 83x58.5x31.5mm |
| MD-MINI-CAR-ADAPTER | Car adapter for MD-MINI and MC-0203, 1.5M |
