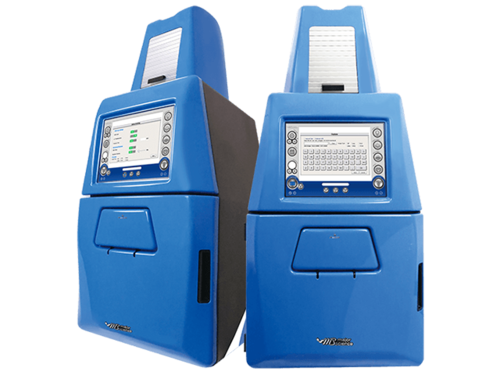

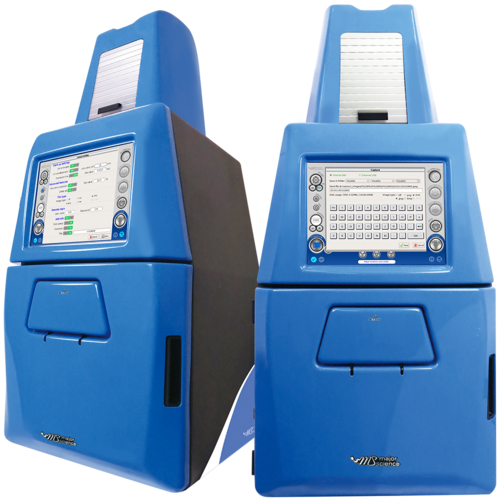

SmartView Pro Imager, UVCI-2300
Product
MS UVCI-2300, the truly standalone Gel Imaging System, delivers incredible image and sharpness with the power of an exceptionall close-up monochrome 2.0 mega-pixel CCD camera, and get you ready for beautifully discriminable DNA/Protein gel images in the spaciously intuitive 10.4” interface with color touch-screen. Our innovative systems are expandable with white and blue light plates coupled with the versatility of camera filters, no matter it’s an EtBr or EtBr-free operations, simply tab to view. Many post-imaging features like drawer-type platform and UV protection shield are added to your convenience for gel excision.
MS04_SmartView Pro Imager System UVCI-1100 Marketing video
- Standalone gel doc system with high-quality monochrome CCD
- Exchangeable emission Filters provide for instant visualization
- Intuitive 10.4” interface with color touch-screen
- Zoom-able lens for proper picture size
- Movable platform for gel excision with UV-protection shield
- Automatic UV shut off mechanism
- Optional trans white light and blue light plates
* All images are for reference only, actual products might differ from the pictures above.
* Technical specifications subject to change without notice.
| Model | SmartView Pro 2300 |
|---|---|
| Cat. No. | UVCI-2300 |
| Camera | 1/1.8" interline UXGA monochrome progressive 2.0MP CCD |
| Pixels Size | 4.4μmx4.4μm |
| Lens (Camera) | F1.2, 12.5 – 75mm (with one +1 close-up lens), 6X zoom lens, manual |
| Camera Video Output | 12 bit |
| Filter (Camera) *Ordered separately | Optical EtBr Filter / Optical SYBR Green Filter / Orange Amber Filter |
| Image Storage | Built-in 14GB Memory (3000 tiff images storage) and USB flash |
| Cabinet | Pull out, sliding transilluminator |
| Field Of View (WxL) | Maximum filed od view 10.2"x8.3" (260x210mm) |
| Dimension (WxLxH) | Approx. 16.1"x16.7"x35.8" (410x425x910mm) |
| Weight | Approx. 62.8lbs. (28.5kg) |
| Display | 10.4” color touch screen, 800x600 |
| Viewing Window | Built-in UV viewing window |
| Window Filter | Amber Filter embedded in viewing window (580nm) |
| Light Source | Built-in drawer type UV Transilluminator 312(302)nm |
| build-in LED white light | |
| Optional Accessory | White Light Plate (power built-in) |
| Blue light plate (power built-in) 470nm | |
| Saved Image | Max. 16bit |
| Grayscale | 12bit, 0-4095 gray levels |
| Safety | CE |
| Rated Voltage | 100-240V~, 50/60Hz |
| Cat. No. | Product Description |
|---|---|
| UVCI-2300 | SmartView Pro 2300 Imager System, UV light version |
*Filters are necessary part for Gel Documentation System.
*All filters have to be ordered separately and discuss with local dealer before order.
| Cat. No. | Product Description |
|---|---|
| UVCI-2300-EB | SmartView EtBr Filter, 610nm (for UV) |
| UVCI-2300-SG | SmartView SYBR Green Filter, 520nm (for UV) |
| UVCI-2300-F4 | SmartView Amber Filter, 580nm (for blue light) |
| UVCI-2313 | SmartView Pro UV Protection Shields |
| UVCI-2314 | SmartView Pro Lens Filter Stand, can hold up to 4 lens filters |
| UVCI-2300-BL | Blue Light Plate |
| UVCI-2300-WL | White Light Plate 210x260mm |
| MJC-8-STYLUS-00000 | Stylus Pen |
| CI-CL55+1 | 55mm Close up lens +1 for CCD Image System |
 |
 |
 |
| UVCI-2300-EB | UVCI-2300-SG | UVCI-2300-F4 |
 |
 |
 |
| UVCI-2313 | UVCI-2314 | UVCI-2300-BL |
 |
 |
 |
| UVCI-2300-WL | MJC-8-STYLUS-00000 | CI-CL55+1 |
