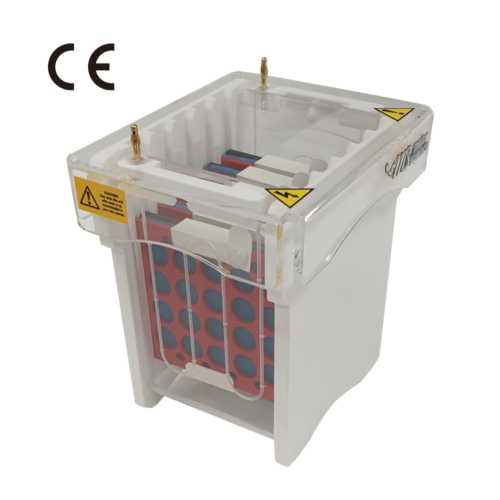

Complete Mini Electro Blot System, MEBM10


Electro Blot Systems are primarily designed for wet electrophoresis of proteins, and offer a combination of increased capacity with economical features. Electro Blot Systems have increased capacity over standard systems. Up to five gel blot cassettes may be utilized at any time for Mini Electro Blot. This is especially useful in high throughput laboratories. A uniform electric field is provided by a high-intensity coiled electrode and ensures uniform transfer across the blot surface. The cassette’s open architecture ensures the maximum blot area allows direct transfer of current. Its rigid construction ensures contact between the gel and membrane is retained throughout the blot and even pressure is maintained. These units are compatible with magnetic stirrers to aid heat dispersal and prevent pH drifts in the buffer due to incomplete buffer mixing. Each unit includes a cooling pack to further enhance transfer efficiency by removing excess heat. This also saves buffer for added economy.

  • 1.Cassette Ends
  • 2.Gel
  • 3.Membrane
  • 4.Blue Foam Pads & Papers
Double hinged cassettes for added convenience

MS02_Electrophoresis* Marketing video

  • Ideal for wet electroblotting of proteins – Western Blotting
  • Hinged cassettes for added convenience
  • Accommodates gel thickness from 0.25 to 3mm
Cat. No. MEBM10
7.5"x5.1"x7.5" (190x130x190mm)
Gel Dimension
3.9"x3.9" (100x100mm)
Maximum Sample 5 Blots, 100x100mm
Accomodate Gel Thickness 0.25 - 3mm
Buffer Volume 1000 - 1500ml
Ice Cooling Pack Yes
Construction Durable, leak proof environment for complete safety and long life
Electrical Safety Lid can only be fastened in one way
On removal, power is disconnected from buffer chamber
Cassette Type Hinged cassette
Cat. No. Product Description
MEBM10 Electro Blot Mini, 100x100mm system for 5 cassettes, including 1 x tank and 1 x lid, 5 x cassettes, cooling pack and 16 extra fiber pads
MSB10 Sub Blot Mini, 100x100mm system for 4 cassettes, including 1 x tank and 1 x lid, 4 x cassettes, cooling pack and 16 extra fiber pads
MSB10C Blot Mini cassette
MSB10F Fiber pads for Blot Mini - pack of 6
MV10BI Blot Mini Insert - including 4 cassettes and 16 fibre pads
