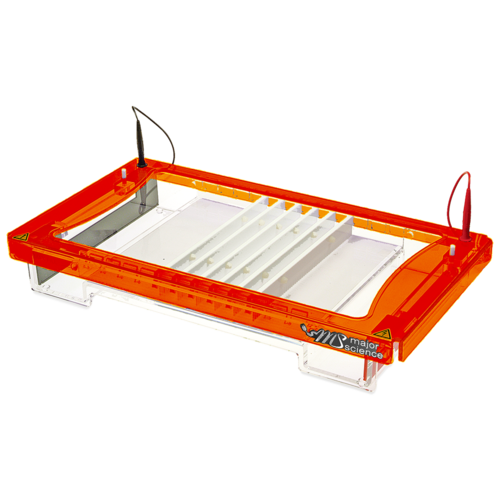

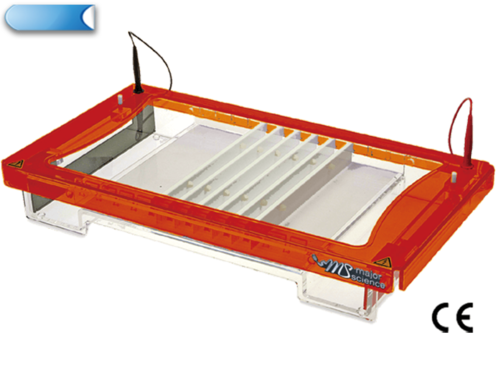

Maxi Horizontal Gel Electrophoresis System, ME26-16-24-32


Maxi-plus is designed for rapid screening of very large numbers of cloning or PCR samples, and it has the maximum capacity of 672 samples per gel. This allows loading and analysis of exactly seven 96 well format microliter plates. The large gel run length of 32cm also allows resolution of samples over a long distance for separation of complex sample bands such as in restriction fragment analysis. Maxi-plus is available with a full length tray of 26x32cm or with two other tray length options of 26x16cm and 26x24cm so that user’s exact requirements can be met. In addition to options for single length gel trays, Maxi-plus is available with all three gel tray lengths to provide the maximum flexibility,versatility and value. Buffer recirculation ports are included as standard to allow enhanced resolution over extended runs, while loading guides enhance visibility for easy sample loading.

MS02_Electrophoresis* Marketing video

  • Low buffer consumption
  • Multi-channel pipette compatibility
  • Great indications for gel making and running
  • No tape, clamps or springs needed
  • Up to 672 samples per tray
  • Three tray options available

ME26-16-24-32 is offered as a complete system for the user to cast, and run electrophoresis, including:

  • 1 x Electrophoresis tank & lid
  • 1 x ME26-UV16 (26x16cm UV tray)
  • 1 x ME26-UV24 (26x24cm UV tray)
  • 1 x ME26-UV32 (26x32cm UV tray)
  • 6 x ME26-28MC-1 (28 sample combs, 1mm thick)
  • 1 x ME26-LG (Loading guides (Set))
  • 1 x Black & red electrophoresis cable
  • 1 x Flexi caster
Cat. No. ME26-16-24-32
19.7"x11"x3.5" (500x280x90mm)
Gel Dimension
10.2"x6.3" (260x160mm)
10.2"x9.5" (260x240mm)
10.2"x12.6" (260x320mm)
Maximum Sample 336 for 10.2"x6.3" (260x160mm)
Tray (6x56 sample combs)
504 for 10.2"x9.5" (260x240mm)
Tray (9x56 sample combs)
672 for 10.2"x12.6" (260x320mm)
Tray (12x56 sample combs)
Buffer Volume 0.37gal (1400ml)
Construction N /A
Cassette Type Electrode Inexpensive, easy to replace
Made of 99.99% corrosion resistant pure platinum
Electrical Safety Lid can only be fastened in one way
Upon lid removal, power is disconnected from buffer chamber
Rapid Casting Gel Use flexible caster
Cat. No. Product Description
ME26-16-24-32 Maxi-plus 260x160mm, 260x240mm, 260x320mm UV tray, 6x28 sample combs
ME26-UV16 Maxi plus, 260x160mm UV tray
ME26-UV24 Maxi plus, 260x240mm UV tray
ME26-UV32 Maxi plus, 260x320mm UV tray
ME26-FC Flexible caster for gels up to 320mm.
Casts 70, 100, 150,160, 200, 240 and 320mm long gels
ME26-UVS 260mm UV gel scoop
ME26-LG Loading Guides for Maxi-plus
ME26LID Maxi-plus lid (No cables)
ME26TANK Maxi-plus Tank (including electrodes)
Cat. No Comb Description
ME26-28MC-0.75 28 sample MC, 0.75mm thick 25ul
ME26-56MC-0.75 56 sample MC, 0.75mm thick 10ul
ME26-28MC-1 28 sample MC, 1mm thick 34ul
ME26-56MC-1 56 sample MC, 1mm thick 14ul
ME26-28MC-1.5 28 sample MC, 1.5mm thick 51ul
ME26-56MC-1.5 56 sample MC, 1.5mm thick 20ul
ME26-28MC-2 28 sample MC, 2mm thick 68ul
ME26-56MC-2 56 sample MC, 2mm thick 27ul

Extensive range of combs

Black: 0.75mm for ultra resolved bands

White: 1mm supplied as standard

Red: 1.5mm for large sample volume

Blue: 2mm for large sample volume

MC = Multi-channel pipette compatible *Sample volume (SV) = Sample volume for 5mm thick gel (ul)
