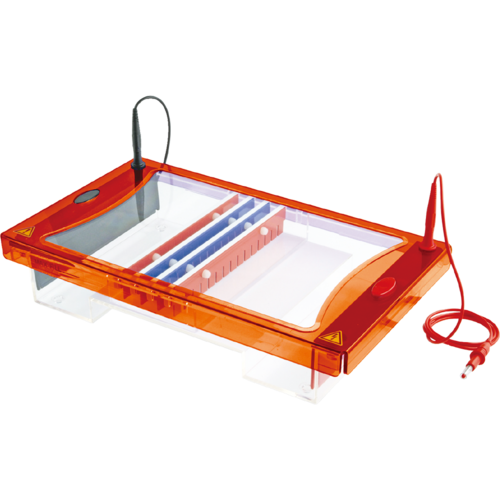

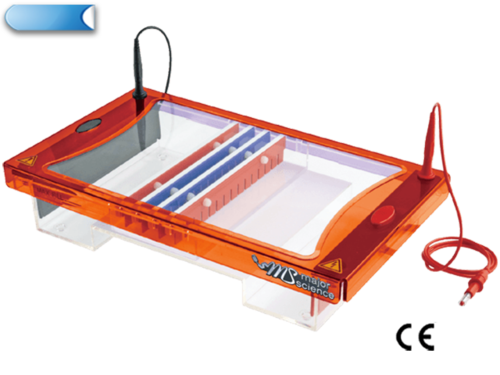

Maxi Horizontal Gel Electrophoresis System, ME20 series
ME20 series, Maxi Horizontal Gel Electrophoresis System is primarily designed for resolution of high throughput of samples as in cloning or PCR experiments.
Product
Maxi is primarily designed for resolution of high throughput of samples as in cloning or PCR experiments. Maxi allows ultra high-resolution separations over extended runs. Tray sizes correspond to standard blotter sizes. It also allows for easy sample transfer onto a membrane for further analysis. Three tray sizes are available, 200x200mm, 200x250mm and 200x100mm. Multi-channel pipette compatible combs for up to 40 samples each facilitate speedy loading of up to 440 samples per gel. 50 sample combs (not multi-channel pipette compatible) allow maximum sample capability of 550 samples per gel.
MS02_Electrophoresis* Marketing video
- Low buffer consumption
- Multi-channel pipette compatibility
- Great indications for gel making and running
- No tape, clamps or springs needed
- Up to 450 samples per tray
ME20 series is offered as a complete system for the user to cast, and run electrophoresis. including:
• 1 x Electrophoresis tank & lid• 1 x ME20-UV10 (200x100mm UV tray)
• 1 x ME20-UV20 (200x200mm UV tray)
• 1 x ME20-UV25 (200x250mm UV tray, for ME20-25 only)
• 2 x ME20-20MC-1 (20 sample combs, 1mm thick)
• 1 x ME20-UVDAM (UV tray dams, 2pcs)
• 1 x ME20-LG (Loading guides (Set))
• 1 x Black & red electrophoresis cable
* All images are for reference only, actual products might differ from the pictures above.
* Technical specifications subject to change without notice.
| Cat. No. | ME20-10-20 | ME20-25 |
|---|---|---|
| Dimension (WxLxH) |
15.6"x9.1"x3.5" (395x230x90mm) | |
| Gel Dimension (WxL) |
7.9"x3.9" (200x100mm) 7.9"x7.9" (200x200mm) 7.9"x9.8" (200x250mm)(Optional) |
7.9"x9.8" (200x250mm) |
| Maximum Sample | 200 for 7.9"x3.9" (200x100mm)Tray (4x50 sample combs) 450 for 7.9"x7.9" (200x200mm)Tray (9x50 sample combs) |
550 for 7.9"x9.8" (200x250mm)Tray (11x50 sample combs) |
| Buffer Volume | 0.32gal (1200ml) | |
| Construction | Injection molded construction | |
| Durable, leak proof environment for complete safety and long life | ||
| Cassette Type Electrode | Inexpensive, easy to replace | |
| Made of 99.99% corrosion resistant pure platinum | ||
| Electrical Safety | Lid can only be fastened in one way | |
| Upon lid removal, power is disconnected from buffer chamber | ||
| Rapid Casting Gel | Use casting dams | |
| Cat. No. | Product Description |
|---|---|
| ME20-10-20 | Maxi, 200x100 & 200x200mm UV tray, 2x20 sample combs |
| ME20-25 | Maxi, 200x250mm UV tray, 2x20 sample combs |
| ME20-UV10 | Maxi, 200x100mm UV tray |
| ME20-UV20 | Maxi, 200x200mm UV tray |
| ME20-UV25 | Maxi, 200x250mm UV tray |
| ME15/20-FC | Midi plus-2/Maxi, Flexicaster |
| ME20-UVS | 200mm UV gel scoop |
| ME20-UVDAM | Maxi, UV tray dams ( 2 pcs ) |
| ME20-LG | Loading Guides for Maxi |
| ME20LID | Maxi lid (No cables) |
| ME20TANK | Maxi Tank (including electrodes) |
| Cat. No | Comb Description | Sample Volume |
|---|---|---|
| ME20-1-0.75 | Prep 1, Marker 1, 0.75mm thick | 506ul |
| ME20-2-0.75 | Prep 2, Marker 2, 0.75mm thick | 236ul |
| ME20-4-0.75 | Prep 4, Marker 2, 0.75mm thick | 115ul |
| ME20-10-0.75 | 10 sample, 0.75mm thick | 54ul |
| ME20-16-0.75 | 16 sample, 0.75mm thick | 30ul |
| ME20-20MC-0.75 | 20 sample MC, 0.75mm thick | 20ul |
| ME20-25-0.75 | 25 sample, 0.75mm thick | 16ul |
| ME20-30-0.75 | 30 sample, 0.75mm thick | 13ul |
| ME20-36-0.75 | 36 sample, 0.75mm thick | 11ul |
| ME20-40MC-0.75 | 40 sample MC, 0.75mm thick | 8ul |
| ME20-50-0.75 | 50 sample, 0.75mm thick | 8ul |
| Cat. No | Comb Description | Sample Volume |
|---|---|---|
| ME20-1-1 | Prep 1, Marker 1, 1mm thick | 675ul |
| ME20-2-1 | Prep 2, Marker 2, 1mm thick | 315ul |
| ME20-4-1 | Prep 4, Marker 2, 1mm thick | 153ul |
| ME20-10-1 | 10 sample, 1mm thick | 72ul |
| ME20-16-1 | 16 sample, 1mm thick | 41ul |
| ME20-20MC-1 | 20 sample MC, 1mm thick | 27ul |
| ME20-25-1 | 25 sample, 1mm thick | 21ul |
| ME20-30-1 | 30 sample, 1mm thick | 17ul |
| ME20-36-1 | 36 sample, 1mm thick | 14ul |
| ME20-40MC-1 | 40 sample MC, 1mm thick | 11ul |
| ME20-50-1 | 50 sample, 1mm thick | 10ul |
| Cat. No | Comb Description | Sample Volume |
|---|---|---|
| ME20-1-1.5 | Prep 1, Marker 1, 1.5mm thick | 1013ul |
| ME20-2-1.5 | Prep 2, Marker 2, 1.5mm thick | 473ul |
| ME20-4-1.5 | Prep 4, Marker 2, 1.5mm thick | 230ul |
| ME20-10-1.5 | 10 sample, 1.5mm thick | 108ul |
| ME20-16-1.5 | 16 sample, 1.5mm thick | 61ul |
| ME20-20MC-1.5 | 20 sample MC, 1.5mm thick | 41ul |
| ME20-25-1.5 | 25 sample, 1.5mm thick | 32ul |
| ME20-30-1.5 | 30 sample, 1.5mm thick | 26ul |
| ME20-36-1.5 | 36 sample, 1.5mm thick | 22ul |
| ME20-40MC-1.5 | 40 sample MC, 1.5mm thick | 17ul |
| ME20-50-1.5 | 50 sample, 1.5mm thick | 16ul |
| Cat. No | Comb Description | Sample Volume |
|---|---|---|
| ME20-1-2 | Prep 1, Marker 1, 2mm thick | 1350ul |
| ME20-2-2 | Prep 2, Marker 2, 2mm thick | 630ul |
| ME20-4-2 | Prep 4, Marker 2, 2mm thick | 306ul |
| ME20-10-2 | 10 sample, 2mm thick | 144ul |
| ME20-16-2 | 16 sample, 2mm thick | 81ul |
| ME20-20MC-2 | 20 sample MC, 2mm thick | 54ul |
| ME20-25-2 | 25 sample, 2mm thick | 42ul |
| ME20-30-2 | 30 sample, 2mm thick | 34ul |
| ME20-36-2 | 36 sample, 2mm thick | 29ul |
| ME20-40MC-2 | 40 sample MC, 2mm thick | 23ul |
| ME20-50-2 | 50 sample, 2mm thick | 21ul |
