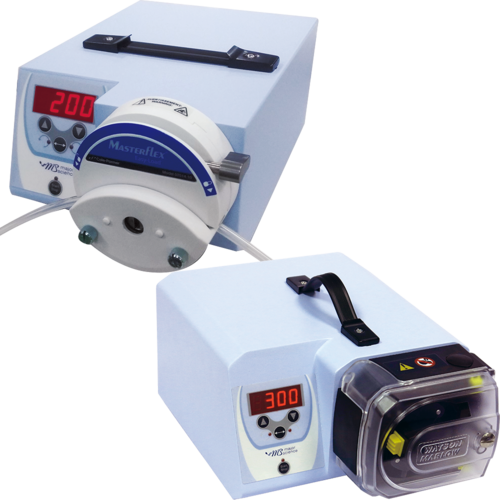

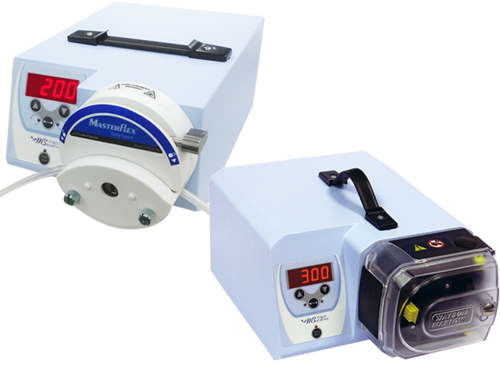

MU-D Peristaltic Pump series is ideal for a variety of applications, which include filtration, circulation, sampling, chemical spraying, dispensing, transferring, feeding and filling. The easy-to-use pump head design accomadate several different silicon tubing sizes. This provides a great flexibility for a wide range of flow rates to be utilized when connecting with different sizes of tubings.
The MU-D series is also reversible providing better convenience and flexibility to the user. The digital control provides high accurate rpm performance. MU-D01 pump is a digital controlled mode with a solid 50W brushless motor, and MU-D02 is designed with a higher horsepower, 100W for higher volume demands required.
MU-D03 pump is the most powerful pump in this series which packs with powerful pump head, allows the flow rate to up to 3.272 litre/min with thicker tubing (1.6mm). Select the appropriate model for your lab with economical yet powerful enough peristaltic pump.
MS10_Digital Peristaltic Pump MU-D / MFU * Marketing video
00-Winpact_Accessories mkt video * Marketing video
** The flow range is subject to the silicone tube that used. Please see Silicon tubing specifications table for reference.
|Controller||Digital microprocessor controller|
|Pump Speed / Increment||20 - 300rpm / 1rpm||5 - 600rpm / 1rpm||20 - 300rpm /1rpm|
|Max. Pump Speed||300rpm||600rpm||300rpm|
|Flow Range **||1.2 - 1,140ml/min||0.3 - 2,280ml/min||8 - 3,272ml/min|
|Number Of Rollers||3||2|
|Number Of Peristaltic Pumps||1 (max. 2)||1|
|Operating Temperature||Ambient to 40 °C|
|Dimension (WxLxH)||Approx. 7.9”x13.4”x5.1”
|Approx. 9.5”x13.3”x 6.6”
|Program||2-step Program (running & ceasing); Max. of timer: 99 (hr) : 59 (min) : 59 (sec)|
|Auto Resume Function||Yes|
|Cat. No.||Product Description|
|MU-D01||Digital Peristaltic Pump, 110 / 220V~|
|MU-D02||Superior Digital Peristaltic Pump, 100V-240V~|
|MU-D03||Supreme Digital Peristaltic Pump, 100V-240V~|
|PWI-FS-05-00000000||Digital Peristlatic Pump connection cable for FS-05|
|PWI-FS-06-00000000||Digital Peristlatic Pump connection cable for FS-06, FS-07|
|MU-PU1||Easy Load pump head for MU-D01 / MU-D02|
|MU-S13||Silicon tube I.D. 0.03 inch (0.8mm), 25ft|
|MU-S14||Silicon tube I.D. 0.06 inch (1.6mm), 25ft|
|MU-S16||Silicon tube I.D. 0.12 inch (3.1mm), 25ft|
|MU-S25||Silicon tube I.D. 0.19 inch (4.8mm), 25ft|
|MU-S17||Silicon tube I.D. 0.25 inch (6.4mm), 25ft|
|MU-S18||Silicon tube I.D. 0.31 inch (7.9mm), 25ft (MU-D series only)|
|Silicon Tubing Specifications|
|Inner Diameter Inches. (mm)||0.03(0.8)||0.06(1.6)||0.12(3.1)||0.19(4.8)||0.25(6.4)||0.31(7.9)|
|Hose Barb Size Inches. (mm)||1/16(1.6)||1/16(1.6)||1/8(3.2)||3/16(4.8)||1/4(6.4)||3/8(9.5)|
|Flow Range With 6 To 600rpm Drive (ml/min)||0.36 to 36||1.3 to 130||4.8 to 480||10 to 1000||17 to 1700||23 to 2300|
|*The flow range is subject to the motor drive of the pump. Please see Peristaltic Pump specifications for reference.|
|Maximum Pressure, Continuous||25psig||20psig||15psig||10psig|
|Maximum Pressure, Continuous||40psig||35psig||20psig||15psig|
|Maximum Vacuum||26" Hg (660mm Hg)||20" Hg (510mm Hg)|
|Suction Lift||29ft H2O (8.8m H2O )||22ft H2O (6.7m H2O )|
* MU-S18 is not compatible with MFU series.
* Dual Pump Head available accommodate two silicon tubings with the same pump speed at the same time.
