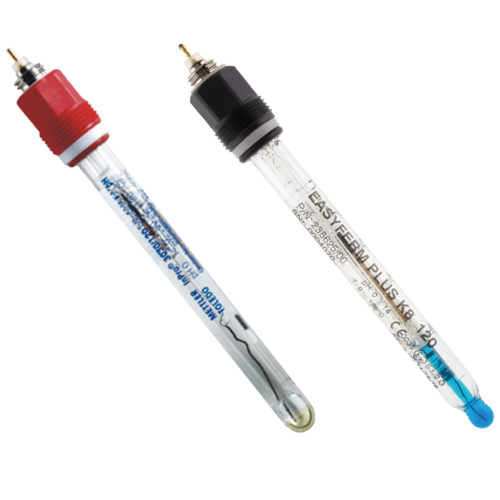

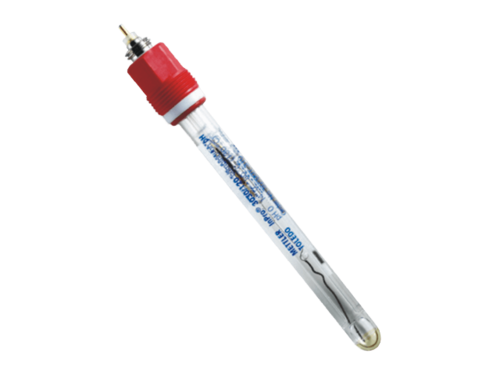

pH Probe meter, FS-A-PPH
FS-A-PPH with pressure resistance to 6 bar and silver-ion trap to prevent fouling of diaphragm in sulfide-bearing media
Product
This state-of-the-art, gel-filled low maintenance pH-electrode with excellent pressure resistance is specifically developed for reliable measurements in bioprocess. With pressure resistance to 6 bar and silver-ion trap to prevent fouling of diaphragm in sulfide-bearing media, the
glass body pH electrode can be used on an universal basis in bioprocess applications..
00-Winpact_Accessories mkt video * Marketing video
- Fast response
- Proven reliability
- High resolution and precision
- Suitable for autoclave, SIP and CIP
- User-calibration available
* All images are for reference only, actual products might differ from the pictures above.
* Technical specifications subject to change without notice.
| pH range | 0 -14 (2-12 for maximum precision) |
|---|---|
| Temperature | 0-135°C (275°F) |
| Resolution of pH | 0.01 |
| Pressure | 6 bar maximum |
| Shaft diameter | 12 mm |
| Connection | Pg 13.5 |
| Temperature compensation | Integral PT-100 (VP model) |
| Cat. No. | Product Description |
|---|---|
| FS-A-PPH00-MT | pH Electrode Cable, AK9 Type, Mettler Toledo |
| FS-A-PPH01-MT | 120 mm pH Probe for 0.5 L, 1 L vessel, Mettler Toledo |
| FS-A-PPH02-MT | 225 mm pH Probe for 3 L vessel, Mettler Toledo |
| FS-A-PPH03-MT | 325 mm pH Probe for 5-15 L vessel, Mettler Toledo |
| FS-A-PPH04-MT | 425 mm pH Probe for 20 L vessel, Mettler Toledo |
| FS-A-PPH05-MT | 325mm pH probe with protective case and cable, for 5L solid state vessel only, Mettler Toledo |
| Cat. No. | Product Description |
|---|---|
| FS-A-PPH00-HM | pH Electrode Cable, AK9 Type, Hamilton |
| FS-A-PPH01-HM | 120 mm pH Probe for 0.5 L, 1 L vessel, Hamilton |
| FS-A-PPH02-HM | 225 mm pH Probe for 3 L vessel, Hamilton |
| FS-A-PPH03-HM | 325 mm pH Probe for 5-15 L vessel, Hamilton |
| FS-A-PPH04-HM | 425 mm pH Probe for 20 L vessel, Hamilton |
