Midi plus-1 Horizontal Electrophoresis System, ME10-7-10
ME10-7-10 Midi plus-1 includes 10x7cm and 10x10cm gel tray to allow 100 samples per gel to be resolved. Ideal for those routinely check medium numbers of samples over short to medium gel run lengths.
Product
Our Midi series have been designed for routine horizontal gel electrophoresis with wide degrees of versatility. All of our gel tanks are made from injection molded construction for durable and leak proof environment. Varieties of special combs are available to maximize your sample size.
Midi plus-1 includes 100x70 and 100x100mm gel tray to allow 100 samples per gel to be resolved. Ideal for those routinely check medium numbers of samples over short to medium gel run lengths.
MS02_Electrophoresis* Marketing video
- Low buffer consumption
- Single molded tank
- Two tray options available
- Easy sample loading
- Multi-channel pipette compatibility
- Great indications for gel making and running
- No tape, clamps or springs needed
ME10-7-10 is offered as a complete system for the user to cast, and run electrophoresis, including:
• 1 x Electrophoresis tank & lid• 1 x ME10-UV7 (100x70mm UV tray)
• 1 x ME10-UV10 (100x100mm UV tray)
• 2 x ME10-16-1 (16 sample combs, 1mm thick)
• 1 x ME10-UVDAM (UV tray dams, 2pcs)
• 1 x ME10-LG (Loading guides (Set))
• 1 x Black & red electrophoresis cable
* All images are for reference only, actual products might differ from the pictures above.
* Technical specifications subject to change without notice.
| Cat. No. | ME10-7-10 |
|---|---|
| Dimension (WxLxH) |
8.7"x4.9"x3.5" (220x125x90mm) |
| Gel Dimension (WxL) |
3.9"x2.8" (100x70mm) 3.9"x3.9" (100x100mm) |
| Maximum Sample | 50 for 3.9"x2.8" (100x70mm) Tray(2x25 sample combs) 100 for 3.9"x3.9" (100x100mm) Tray(4x25 sample combs) |
| Buffer Volume | 0.08gal (300ml) |
| Construction | Injection molded construction |
| Durable, leak proof environment for complete safety and long life | |
| Cassette Type Electrode | Inexpensive, easy to replace |
| Made of 99.99% corrosion resistant pure platinum | |
| Electrical Safety | Lid can only be fastened in one way |
| Upon lid removal, power is disconnected from buffer chamber | |
| Rapid Casting Gel | Use casting dams |
| Cat. No. | Product Description |
|---|---|
| ME10-7-10 | Midi plus-1, 100x70mm & 100x100mm UV tray, 2x16 sample 1mm thick combs, loading guides and dams |
| ME10-UV7 | Midi plus-1, 100x70mm UV tray |
| ME10-UV10 | Midi plus-1, 100x100mm UV tray |
| ME10-UVS | 100mm UV gel scoop |
| ME10-UVDAM | Midi plus-1, UV tray dams ( 2 pcs ) |
| ME10-LG | Loading Guides for Midi Plus-1 |
| ME10LID | Midi plus-1 lid (No cables) |
| ME10TANK | Midi plus-1 Tank (including electrodes) |
| ME10-BSB | Midi plus-1 buffer saving block, save up to 100ml, 2/pk |
| ME7/10-FC | Midi plus/Midi plus-1, Flexicaster |

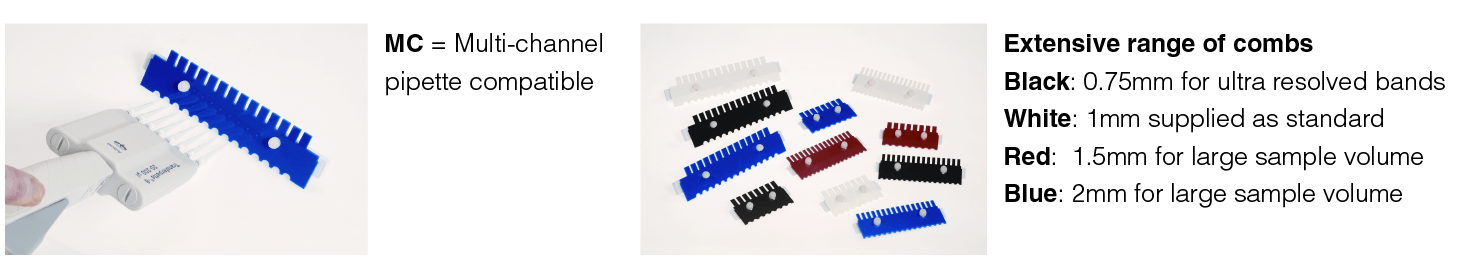

| Cat. No | Comb Description | Sample Volume |
|---|---|---|
| ME10-1-0.75 | Prep 1, Marker 1, 0.75mm thick | 270ul |
| ME10-2-0.75 | Prep 2, Marker 2, 0.75mm thick | 118ul |
| ME10-4-0.75 | Prep 4, Marker 2, 0.75mm thick | 57ul |
| ME10-8-0.75 | 8 sample, 0.75mm thick | 30ul |
| ME10-10MC-0.75 | 10 sample MC, 0.75mm thick | 20ul |
| ME10-12-0.75 | 12 sample, 0.75mm thick | 17ul |
| ME10-16-0.75 | 16 sample, 0.75mm thick | 12ul |
| ME10-20MC-0.75 | 20 sample MC, 0.75mm thick | 10ul |
| ME10-25-0.75 | 25 sample, 0.75mm thick | 7ul |
| Cat. No | Comb Description | Sample Volume |
|---|---|---|
| ME10-1-1 | Prep 1, Marker 1, 1mm thick | 360ul |
| ME10-2-1 | Prep 2, Marker 2, 1mm thick | 158ul |
| ME10-4-1 | Prep 4, Marker 2, 1mm thick | 77ul |
| ME10-8-1 | 8 sample, 1mm thick | 41ul |
| ME10-10MC-1 | 10 sample MC, 1mm thick | 27ul |
| ME10-12-1 | 12 sample, 1mm thick | 23ul |
| ME10-16-1 | 16 sample, 1mm thick | 16ul |
| ME10-20MC-1 | 20 sample MC, 1mm thick | 14ul |
| ME10-25-1 | 25 sample, 1mm thick | 10ul |
| Cat. No | Comb Description | Sample Volume |
|---|---|---|
| ME10-1-1.5 | Prep 1, Marker 1, 1.5mm thick | 540ul |
| ME10-2-1.5 | Prep 2, Marker 2, 1.5mm thick | 236ul |
| ME10-4-1.5 | Prep 4, Marker 2, 1.5mm thick | 115ul |
| ME10-8-1.5 | 8 sample, 1.5mm thick | 61ul |
| ME10-10MC-1.5 | 10 sample MC, 1.5mm thick | 41ul |
| ME10-12-1.5 | 12 sample, 1.5mm thick | 34ul |
| ME10-16-1.5 | 16 sample, 1.5mm thick | 24ul |
| ME10-20MC-1.5 | 20 sample MC, 1.5mm thick | 20ul |
| ME10-25-1.5 | 25 sample, 1.5mm thick | 15ul |
| Cat. No | Comb Description | Sample Volume |
|---|---|---|
| ME10-1-2 | Prep 1, Marker 1, 2mm thick | 720ul |
| ME10-2-2 | Prep 2, Marker 2, 2mm thick | 315ul |
| ME10-4-2 | Prep 4, Marker 2, 2mm thick | 153ul |
| ME10-8-2 | 8 sample, 2mm thick | 81ul |
| ME10-10MC-2 | 10 sample, 2mm thick | 54ul |
| ME10-12-2 | 12 sample MC, 2mm thick | 45ul |
| ME10-16-2 | 16sample, 2mm thick | 32ul |
| ME10-20MC-2 | 20 sample, 2mm thick | 27ul |
| ME10-25-2 | 25 sample, 2mm thick | 20ul |
